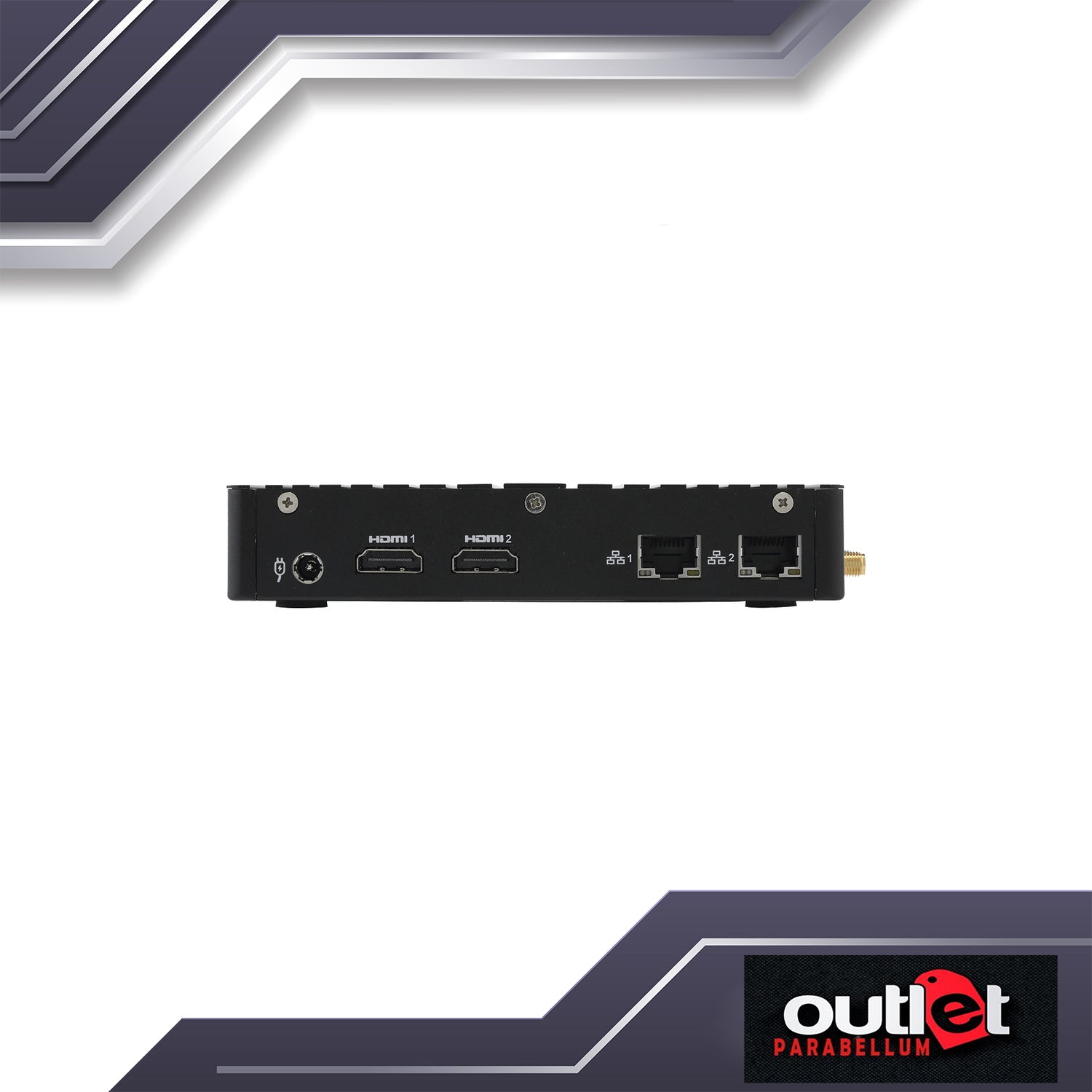

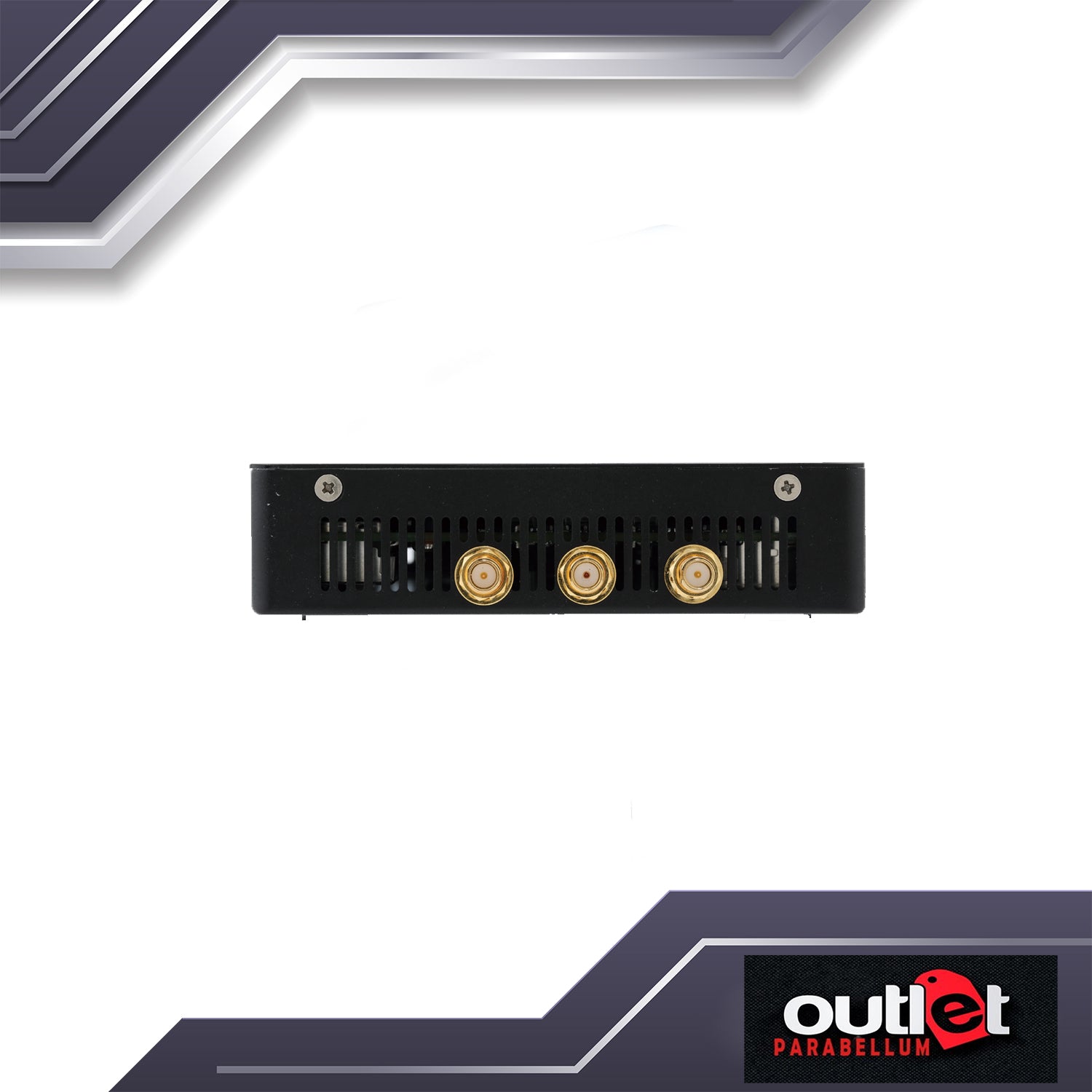

Gigabyte EL-20-3060-32G (rev. 1.0) Intel® Bear Ridge IoT Gateway Solution

• Intel® Celeron® processor N3060
• 2 x SO-DIMM DDR3L slots
• 2 x GbE LAN ports (Realtek RTL8111HS)
• 32GB onboard eMMC memory
• 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
• 1 x SDXC card slot
• Supports Windows 7/ 8.1/ 10 and Android 5.1

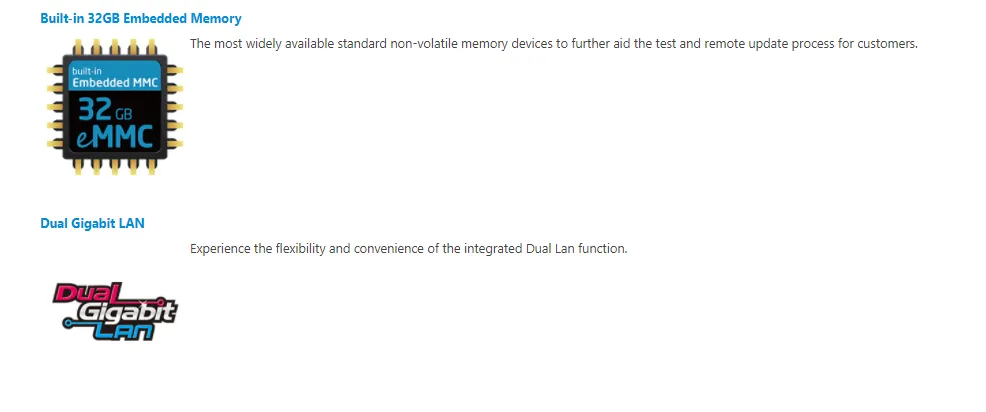

The most widely available standard non-volatile memory devices to further aid the test and remote update process for customers.

Experience the flexibility and convenience of the integrated Dual Lan function.

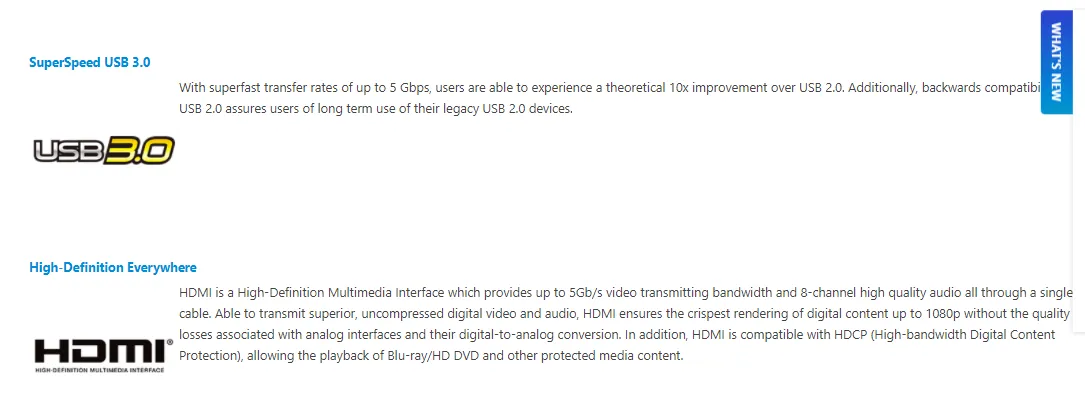

With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

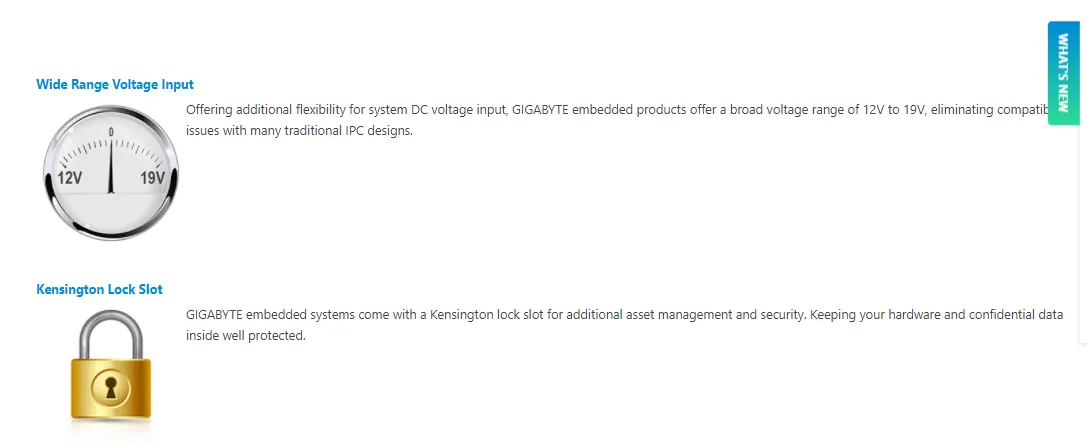

Offering additional flexibility for system DC voltage input, GIGABYTE embedded products offer a broad voltage range of 12V to 19V, eliminating compatibility issues with many traditional IPC designs.

GIGABYTE embedded systems come with a Kensington lock slot for additional asset management and security. Keeping your hardware and confidential data inside well protected.
