Brand NEW!!! Tenda TEF1105P-4-63W, Switch, 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Hardware

• Network standards: IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
• LED Indicator: 5* Link/Ack LED indicators / 1 * Power LED indicator
• Interfaces: 4*10/100 Base-TX Ethernet Ports(Data/Power) / 1*10/100 Base-TX Ethernet Port(Data)
• Transmission media: Recommended: CAT5/5e UTP or better
• Fan quantity: N/A
• Dimension: 100.0mmx100.0mmx26.0mm
• Level of protection: Lightning protection for ports: 6kV
• Lightning protection for power: 6kV
• ESD: Air discharge: ±10kV / Contact discharge: ±8kV
• Forwarding mode: Store-and-forward
• Switch capacity: 1Gbps
• Packet forwarding rate: 0.74Mpps
• Buffer: 448K
• MAC address table: 1K
• Jombo frame: N/A

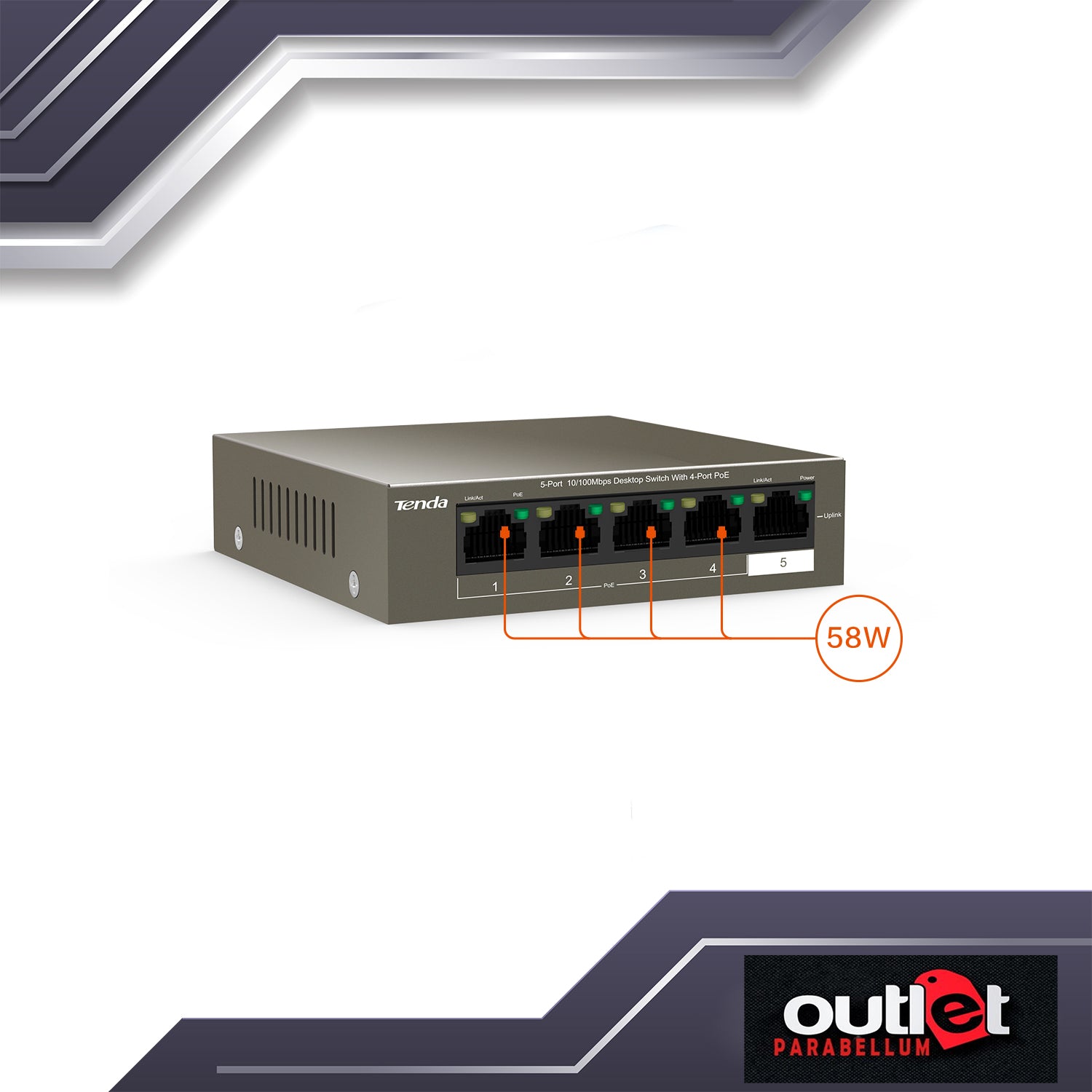

• PoE budget: Single port: AF: 15.4W, AT: 30W / Whole device: 58W
• Power consumption: /
• Input voltage: 100－240V AC 50/60Hz / 51V /1.25A DC（Power Adapter）
• Mounting: Desktop mounting: support / Wall mounting: support / Rack mounting:non-support
• Environment: Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification: FCC、CE、RoHS

Functions: Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .

Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
