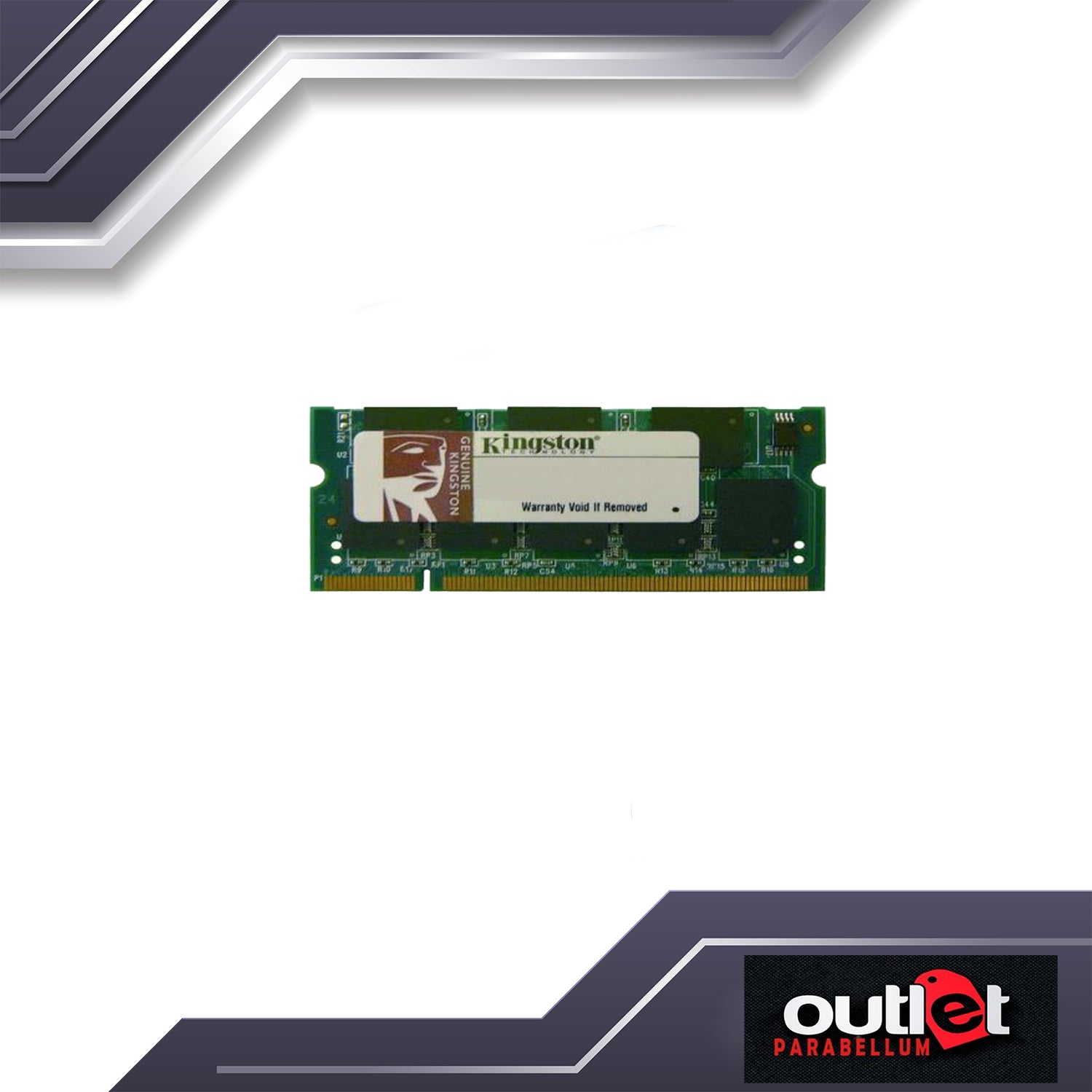

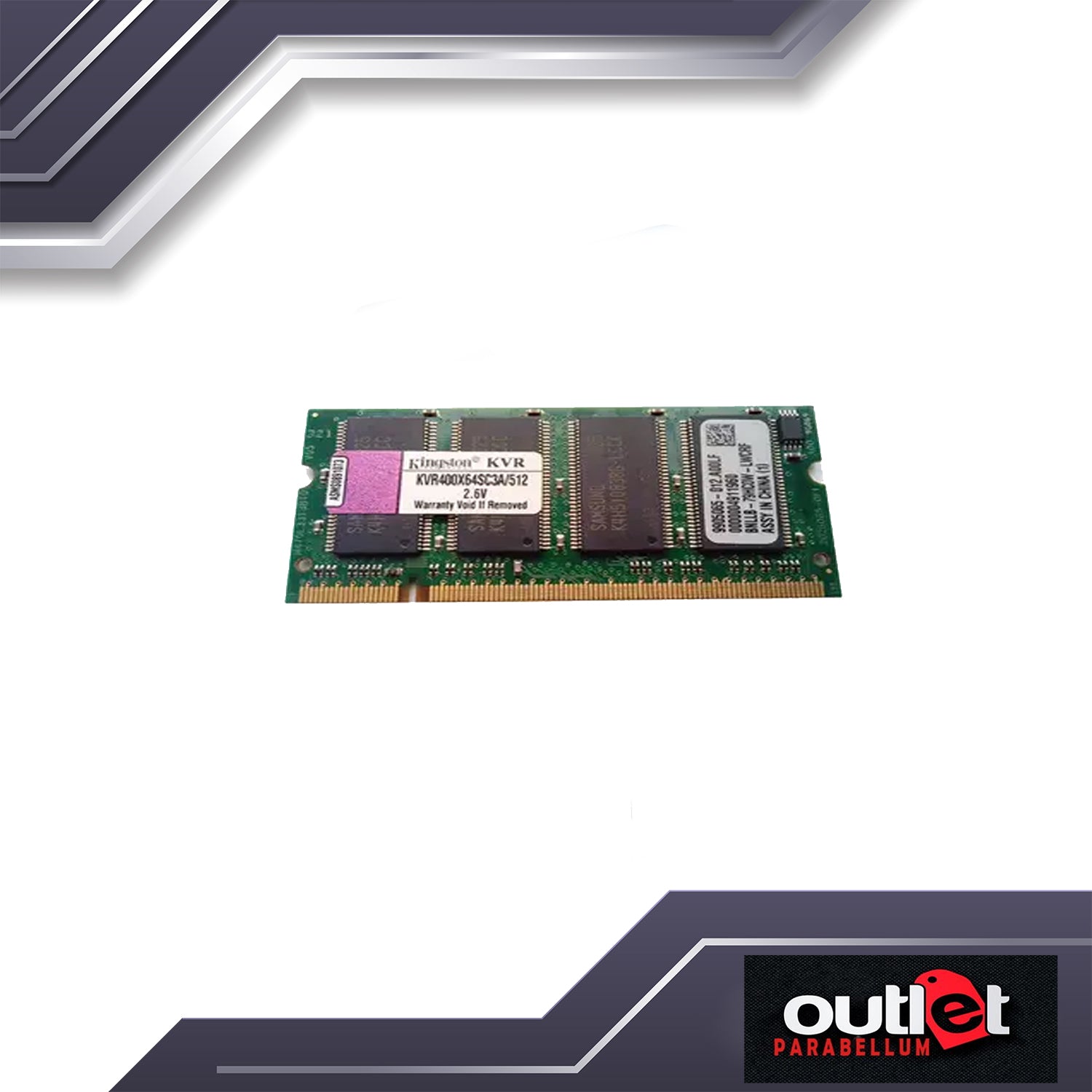

KM-KVR400X64SC3A/512 KINGSTON 512MB DDR400 SODIMM

DESCRIPTION:

This document describes ValueRAM’s 64M x 64-bit (512MB) DDR400 CL3 SDRAM (Synchronous DRAM) memory module. The components on this module include eight 32M x 16-bit (8M x 16-bit x 4 Bank) DDR400 SDRAM in TSOP packages. This 200-pin SODIMM uses gold contact fingers and requires +2.6V. The electrical and mechanical specifications are as follows:

SPECIFICATIONS:

• Clock Cycle Time (tCK) 6ns (min.) / 12ns (max.)
• Row Cycle Time (tRC) 60ns (min.)
• Refresh Row Cycle Time (tRFC) 72ns (min.)
• Row Active Time (tRAS) 42ns (min.) / 70,000ns (max.)
• Single Power Supply of +2.6V (+/- .1V)
• Operating (IDD0) 3.615 W
• UL Rating 94 V - 0
