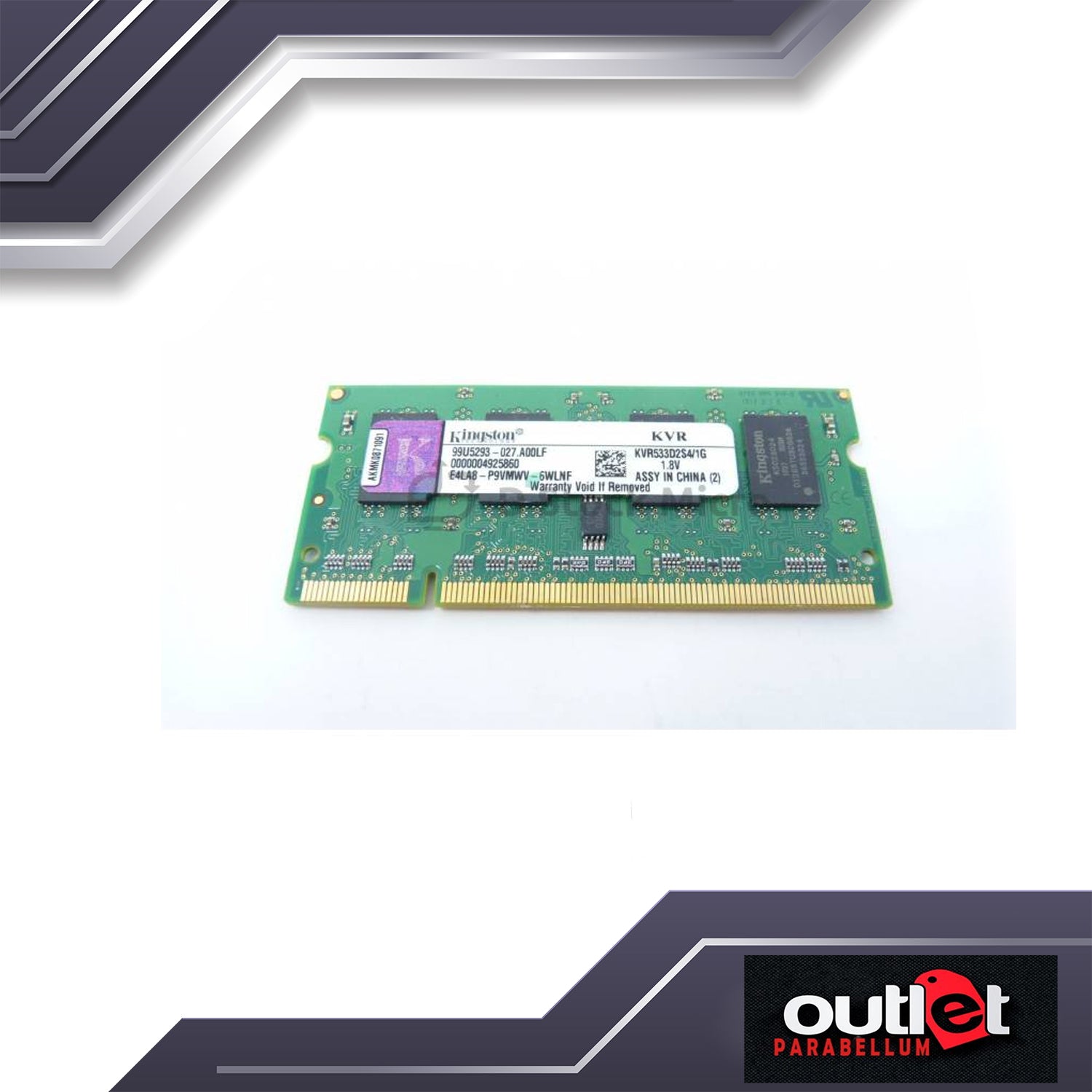

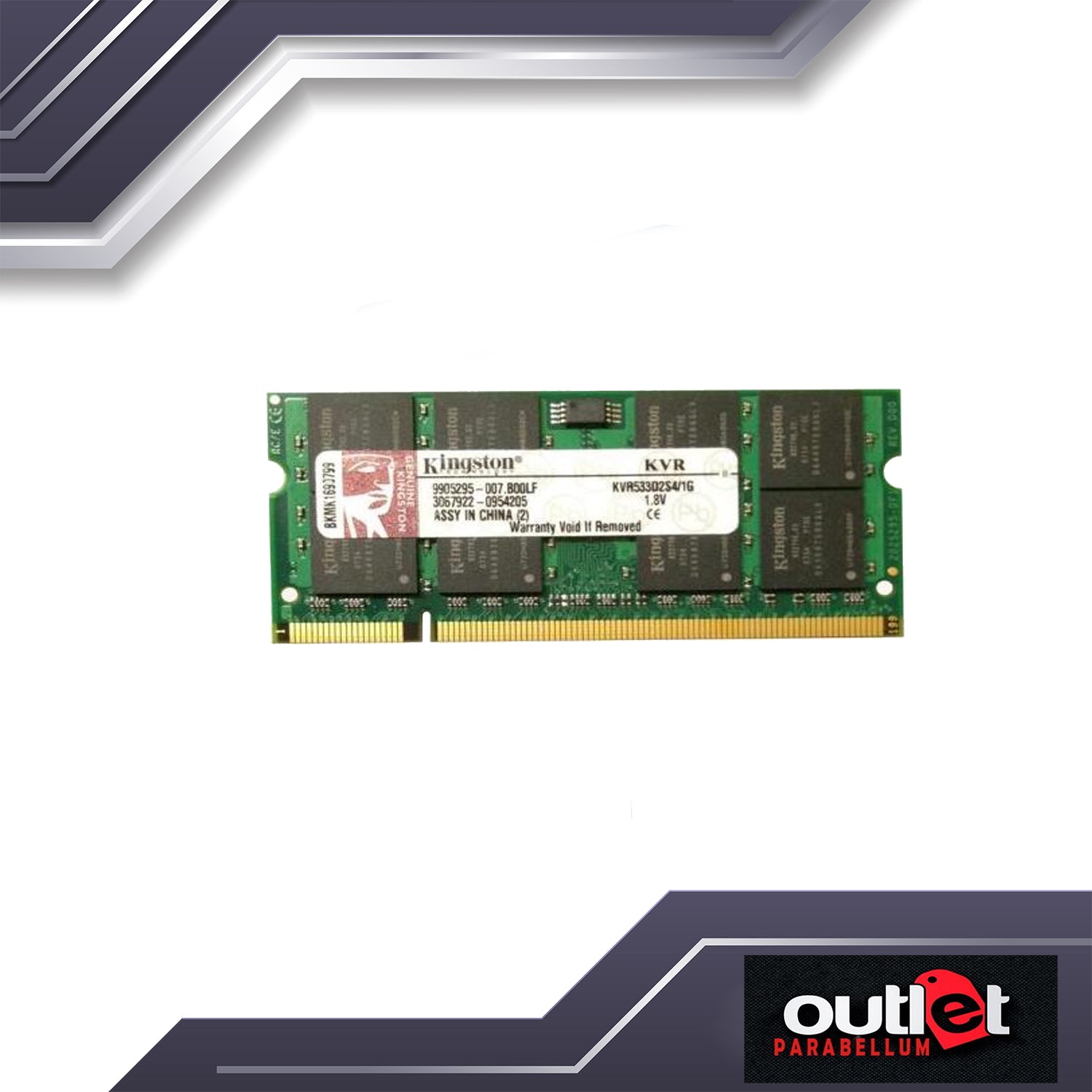

KM-KVR533D2N4K2/1G KINGSTON DDRII-533 DUAL CHANNEL 1 GB - NO WARRANTY!!

DESCRIPTION

ValueRAM’s KVR533D2N4K2/2G is a kit of two 128M x 64-bit (1GB) DDR2-533 CL4 SDRAM (Synchronous DRAM) memory modules. Total kit capacity it 2GB. The components on each module include eight 128M x 8-bit DDR2-533 SDRAM in FBGA packages. Each 240-pin DIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:

SPECIFICATIONS:

• Clock Cycle Time (tCK) CL=4 3.75ns (min.) / 8ns (max.)
• Row Cycle Time (tRC) 55ns (min.)
• Refresh to Active/Refresh 127.5ns
• Command Time (tRFC)
• Row Active Time (tRAS) 40ns (min.) / 70,000ns (max.)
• Single Power Supply of +1.8V (+/- .1V)
• Power 1.170W (operating)
• UL Rating 94 V - 0
