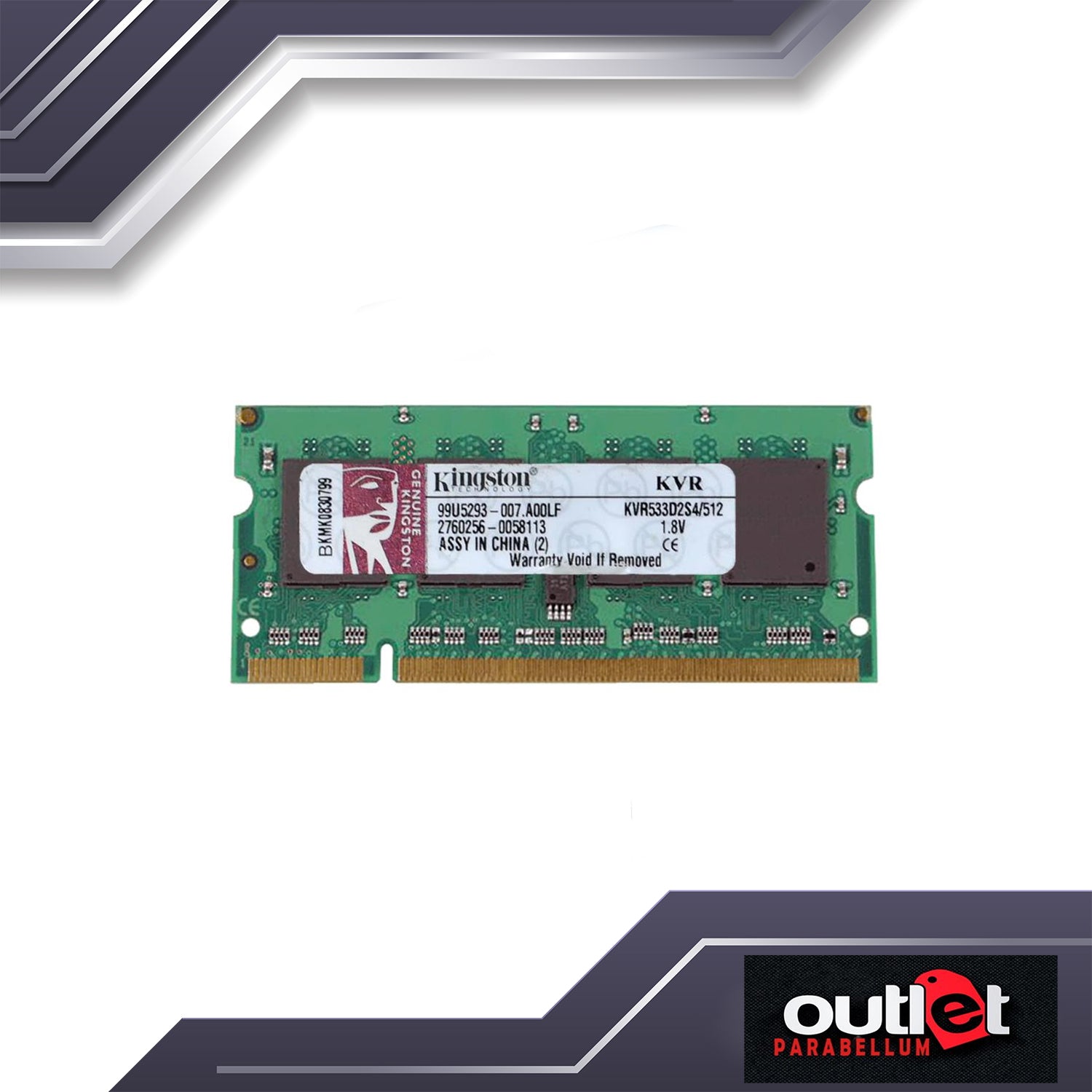

KM-KVR533D2S4/512 KINGSTON 512MB DDRII-533 SODIMM

DESCRIPTION

This document describes ValueRAM’s 128M x 64-bit 1GB (1024MB) CL4 DDR2-533 SDRAM (Synchronous DRAM) memory module. The components on this module include eight 128M x 8-bit DDR2-533 SDRAM in FBGA packages. This 200-pin SODIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

• Clock Cycle Time (tCK) CL=4 3.75ns (min.) / 8ns (max.)
• Row Cycle Time (tRC) 60ns (min.)
• Refresh to Active/Refresh 127.5ns
• Command Time (tRFC)
• Row Active Time (tRAS) 45ns (min.) / 70,000ns (max.)
• Single Power Supply of +1.8V (+/- .1V)
• Power 0.972 W (operating)
• UL Rating 94 V - 0
