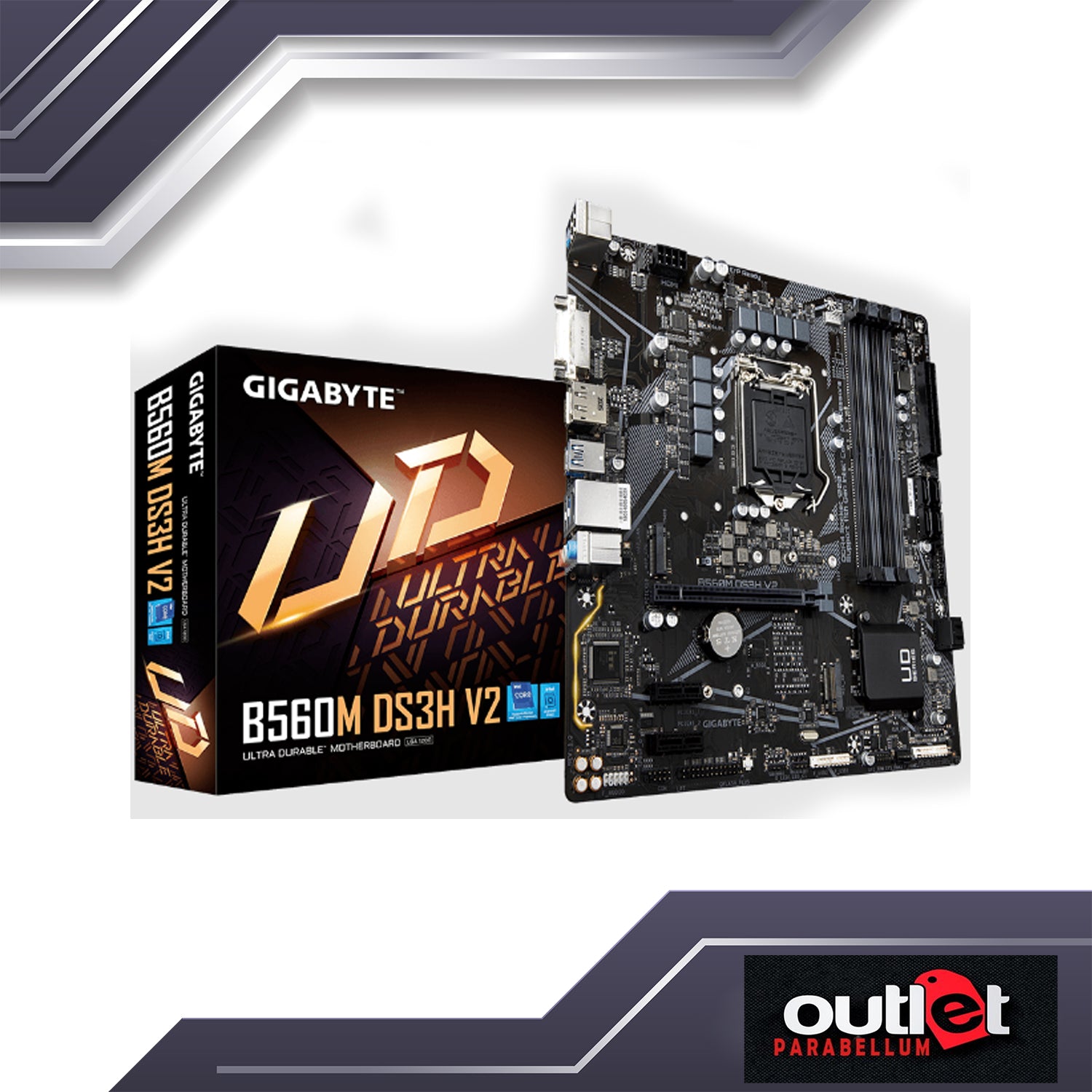

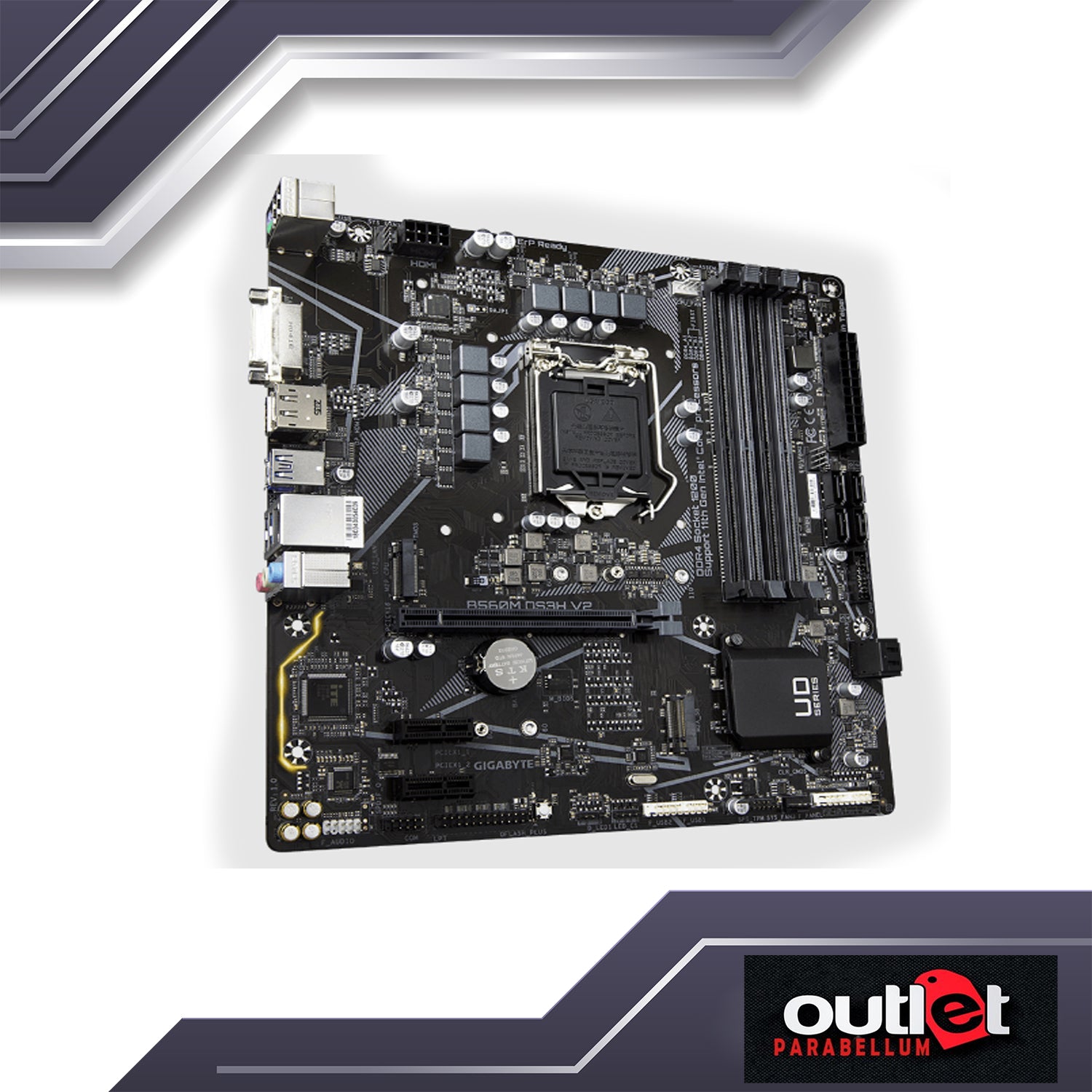

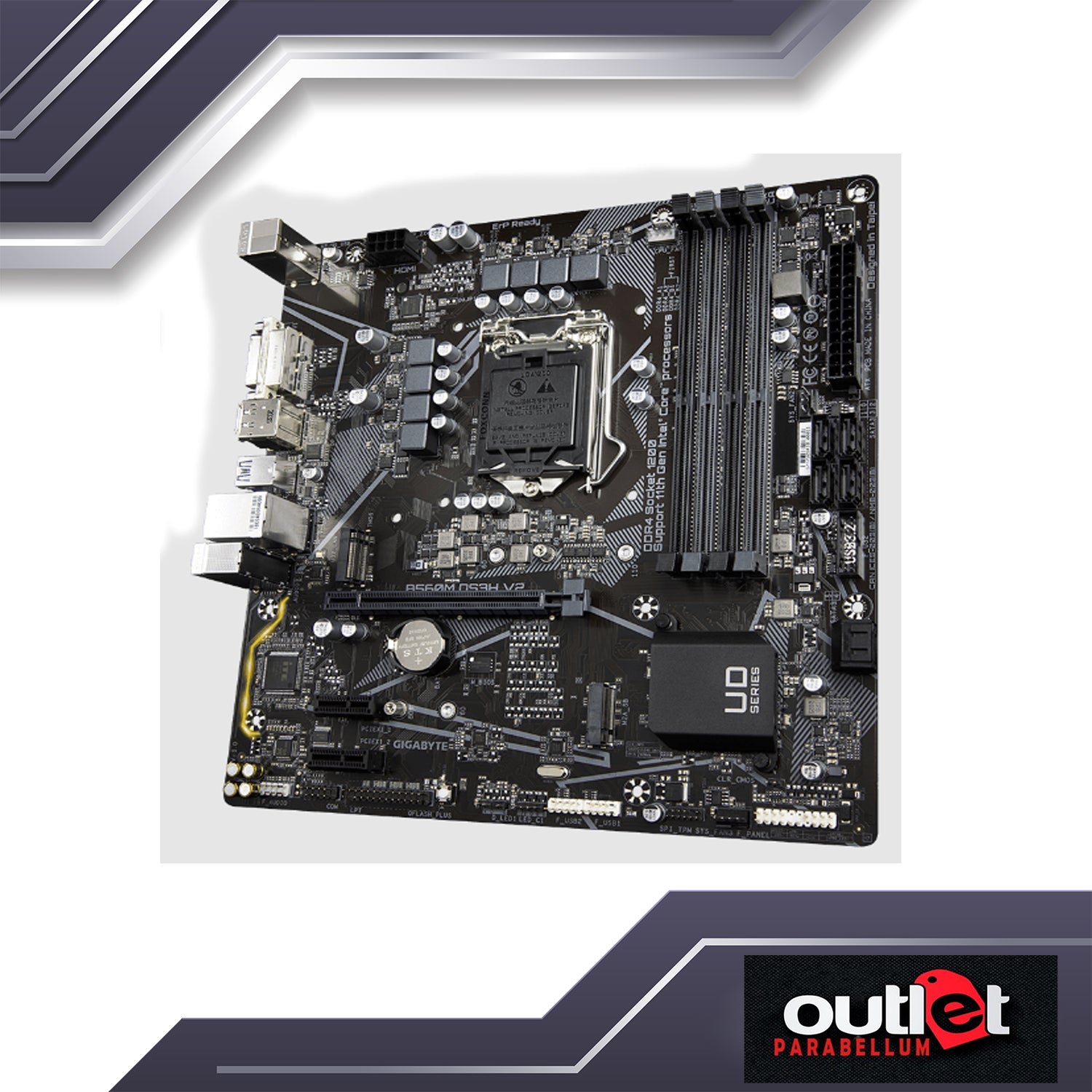

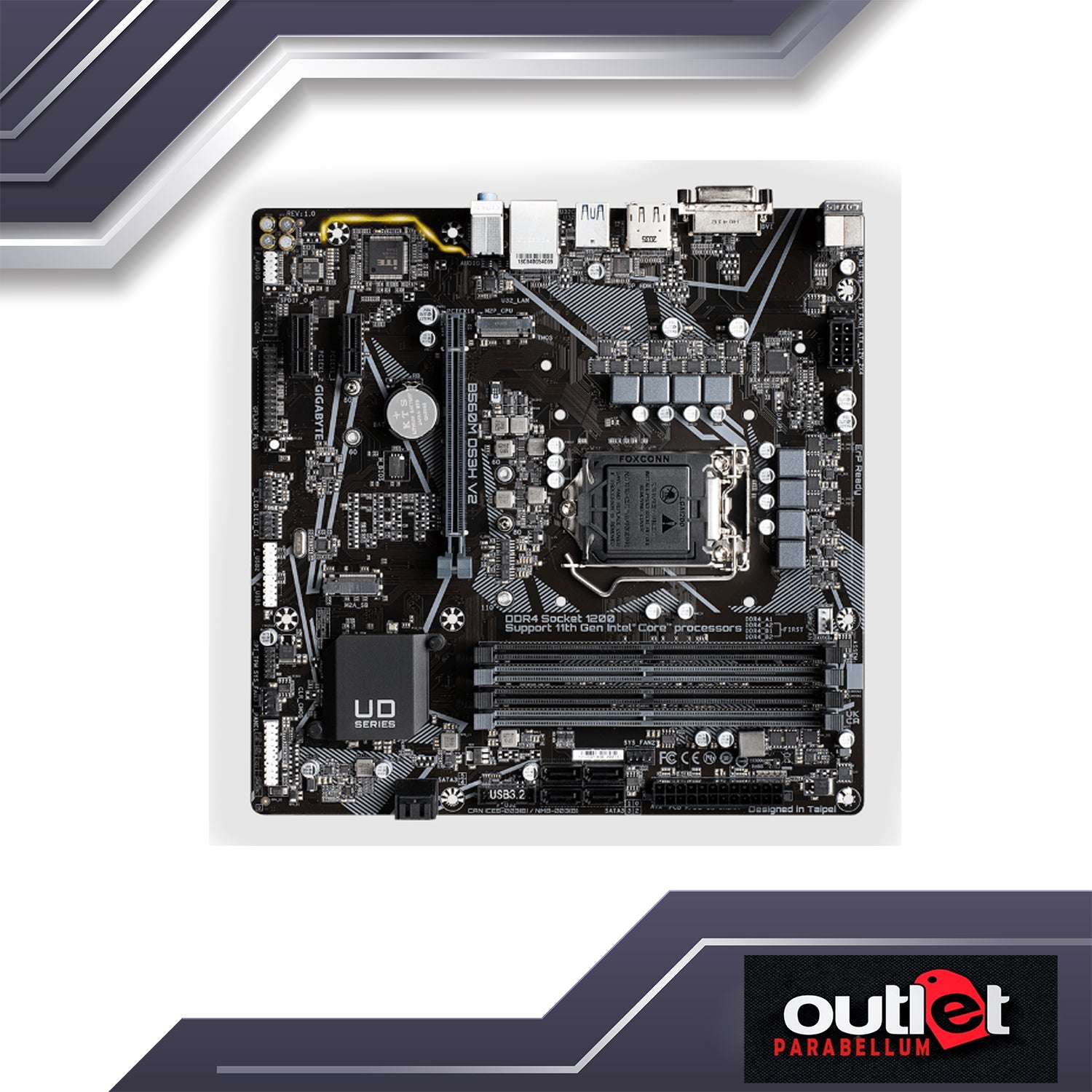

REFURB GA-B560M-DS3H-V2 GIGABYTE INTEL B560 DIRECT 6+2 PHASE DIGITAL VRM Motherboard

* Supports 11th and 10th Gen Intel®  Core™ Series Processors
* Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
* Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
* Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
* GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
* USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
* High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
* RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
* Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
* Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features:
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control
Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode
Slope/Stair dual mode for different user scenario

Fan Stop
Fan can stop completely below users' specified temperature point
