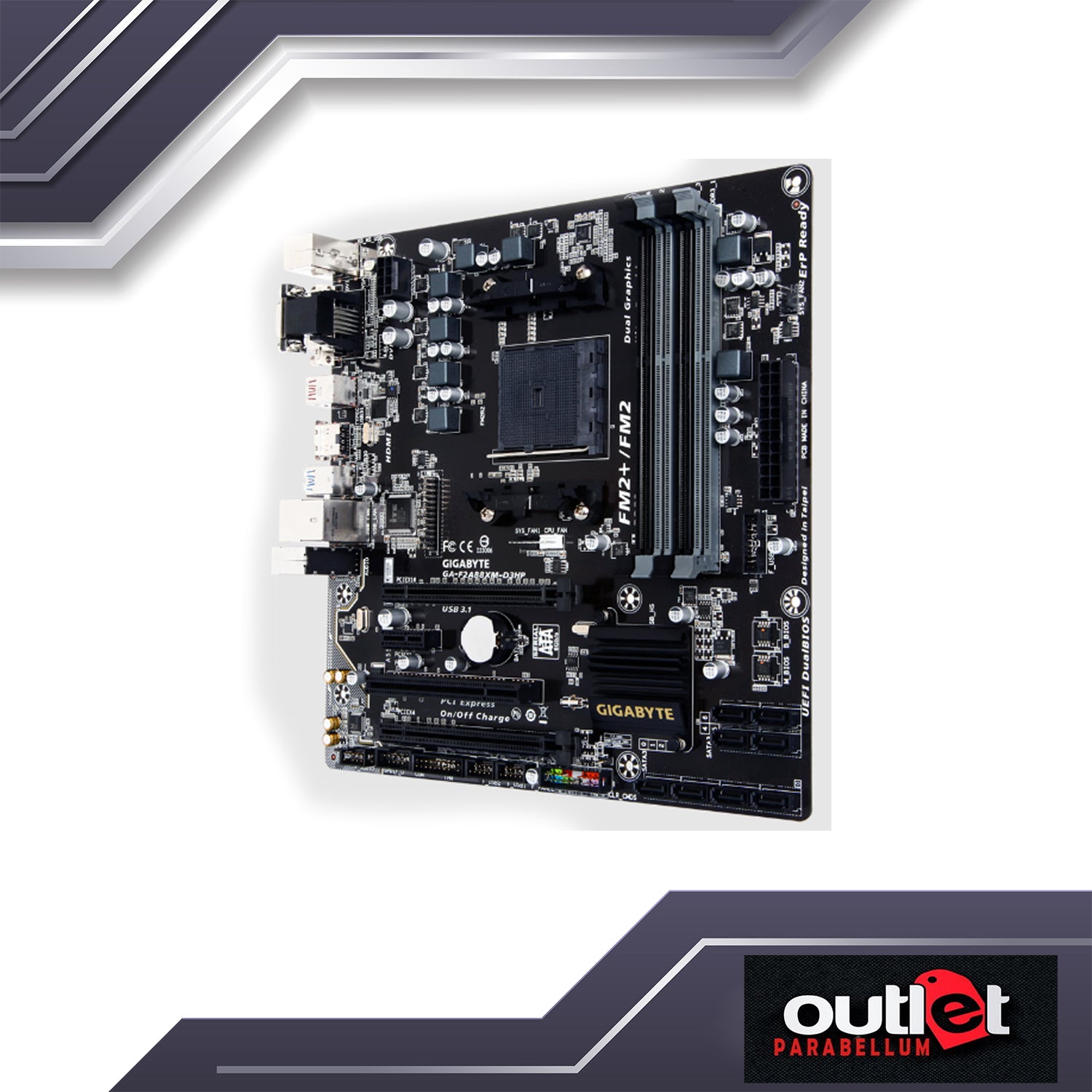

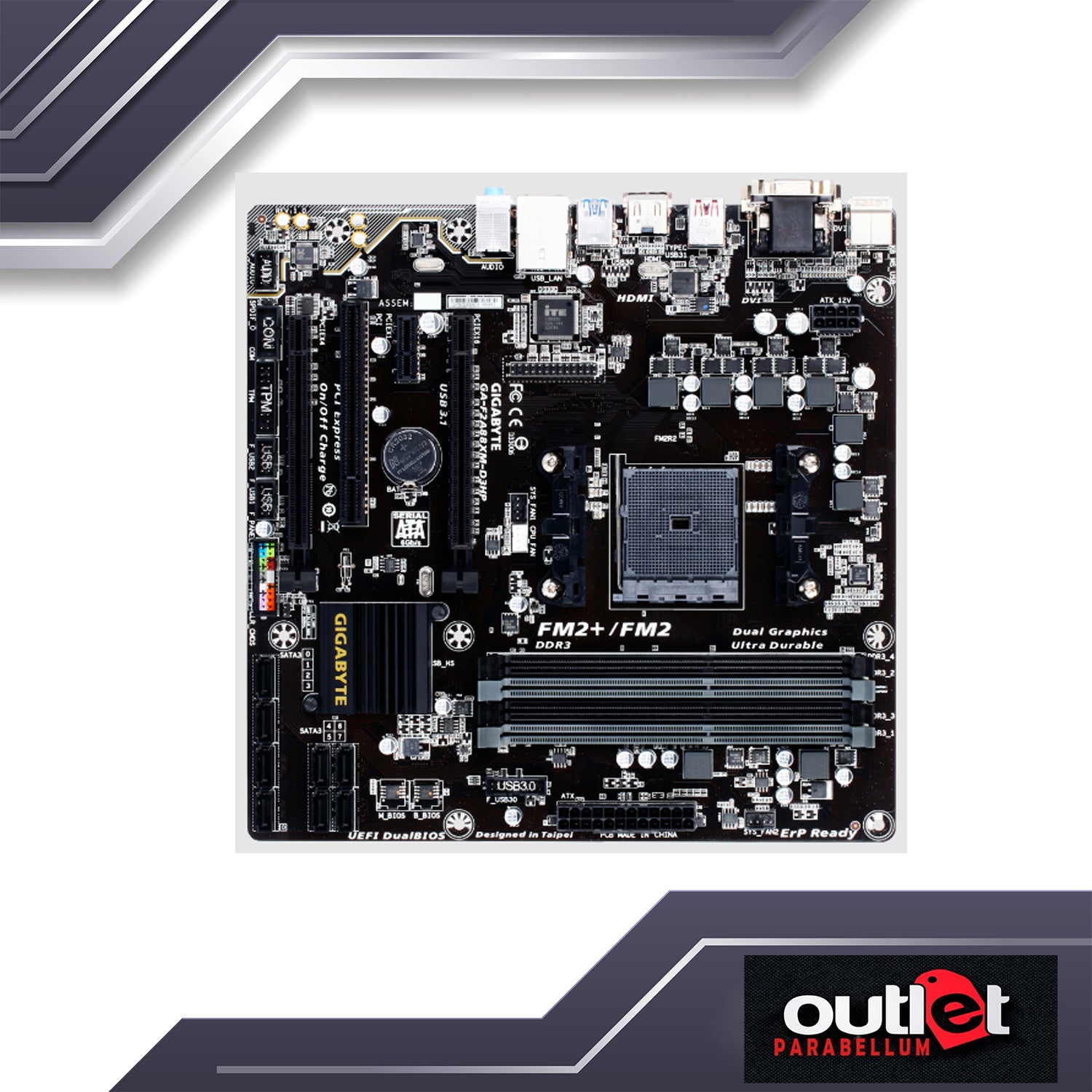

Refurbish GA-F2A88XM-HD3P GIGABYTE AMD A88X FM2+ DUALCHNLDDR3 MATX -- No Warranty !!!

FM2+ Socket: AMD A series processors AMD Athlon™ series processors

Chipset AMD A88XMemory2 x DDR3 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

* The maximum 64 GB of system memory can be supported using 32GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market. Dual channel memory architecture Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor:

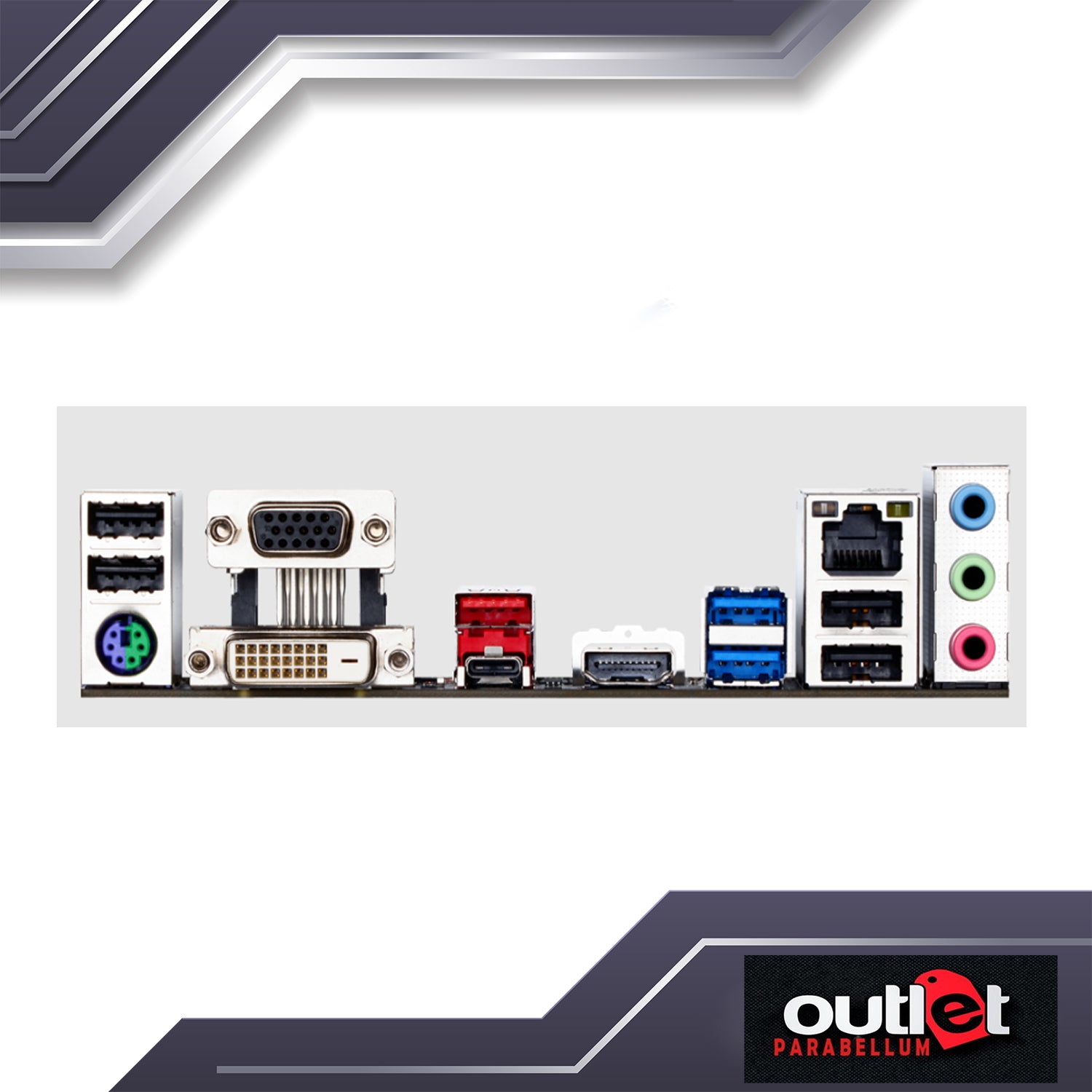

* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.1 x D-Sub port, supporting a maximum resolution of 1920x12001 x DVI-D port, supporting a maximum resolution of 2560x1600* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160

* The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.

• Support for HDMI 1.4a version. Support for up to 3 displays at the same time
• Maximum shared memory of 2 GB
• Audio Realtek® ALC887 codec High Definition Audio2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out
• LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
•  Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
