**NO BACKPLATE INCLUDED***
Supports 4th Generation Intel® Core™ processors GIGABYTE Ultra Durable™ 4 Plus Technology Audio Noise Guard with High Quality Audio Capacitors GIGABYTE Hybrid digital power engine GIGABYTE UEFI Dual BIOS™GIGABYTE On/Off Charge™ for USB devices LAN with high ESD Protection HDMI 1.4, DVI, D-SUB Long lifespan Durable Solid caps GIGABYTE LAN Optimizer.

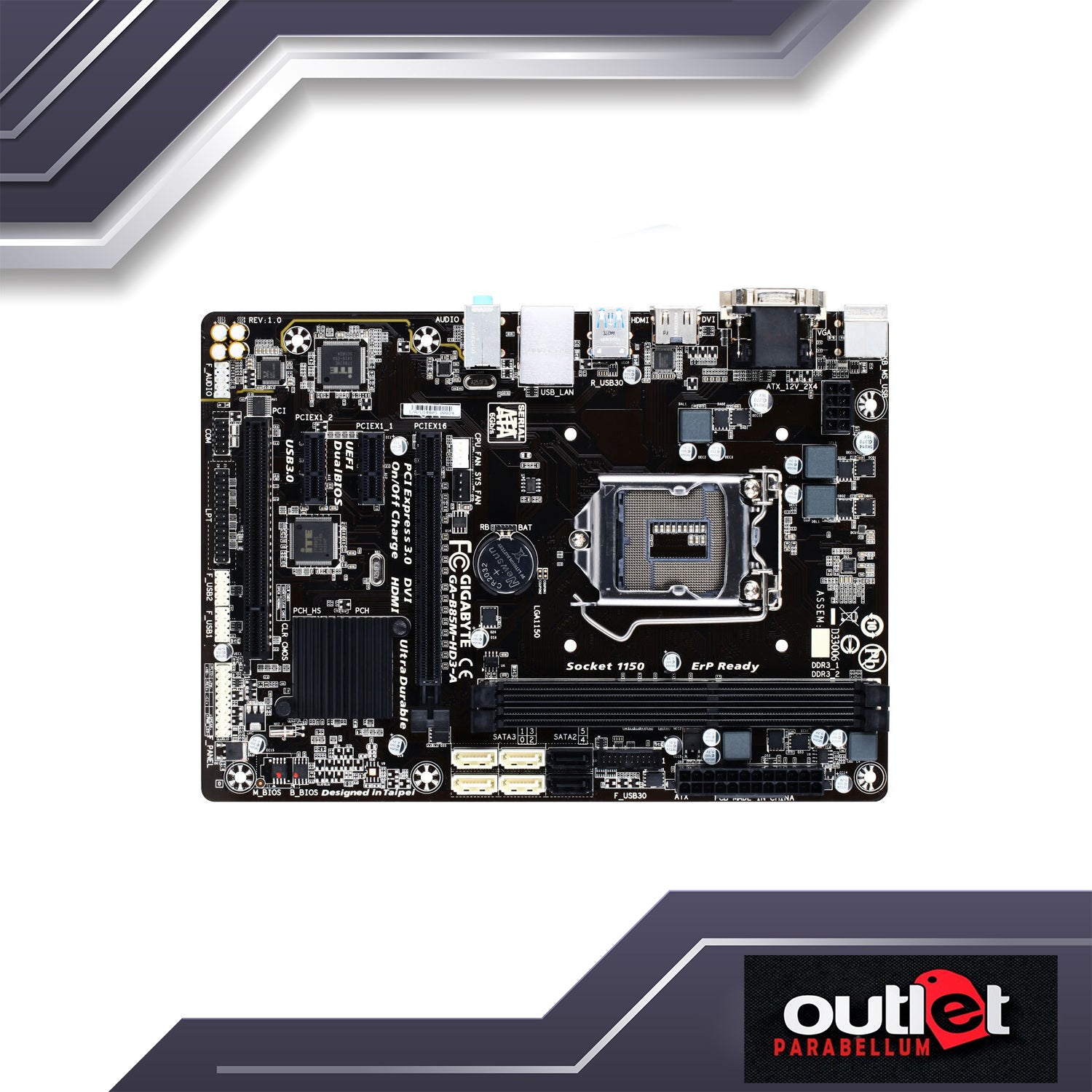

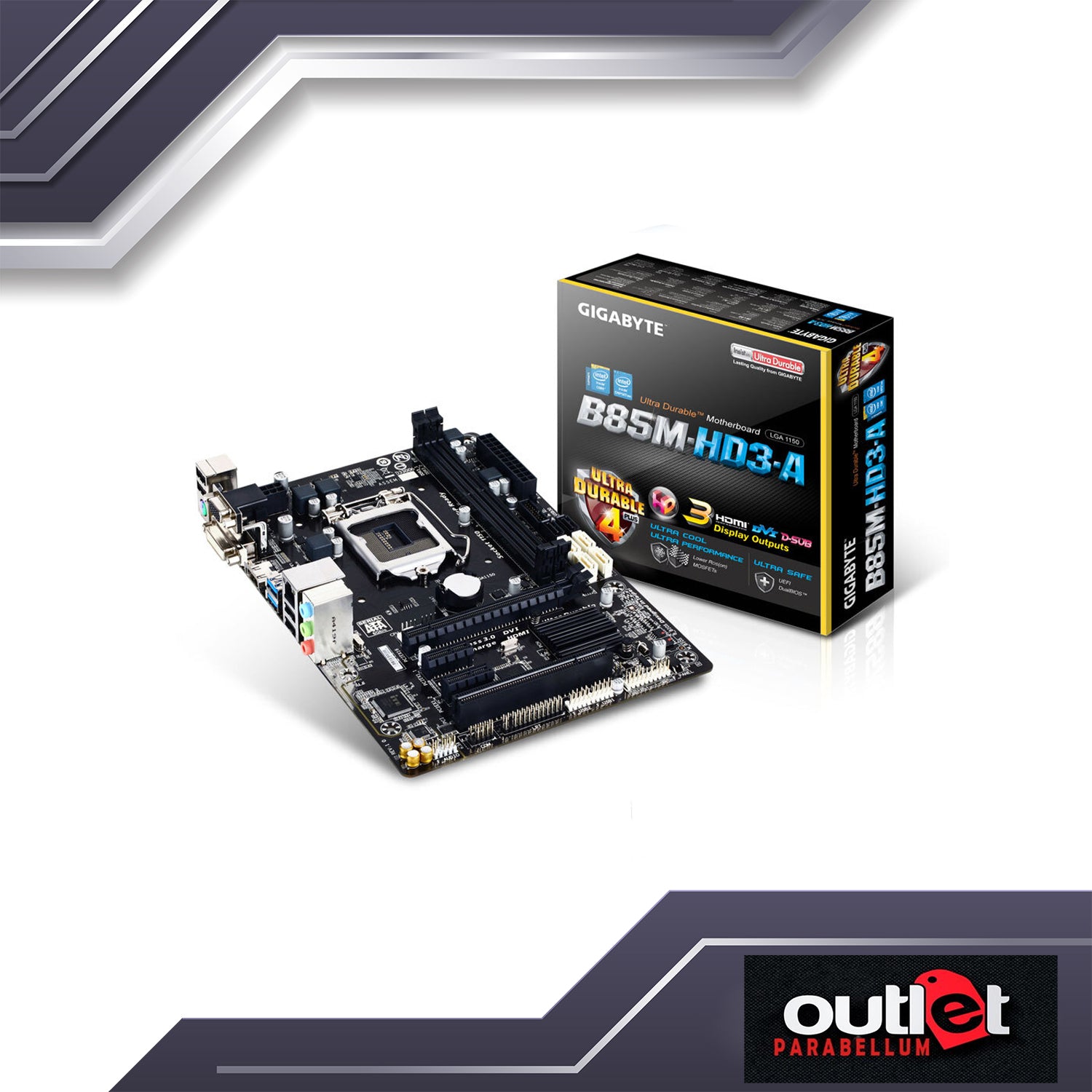

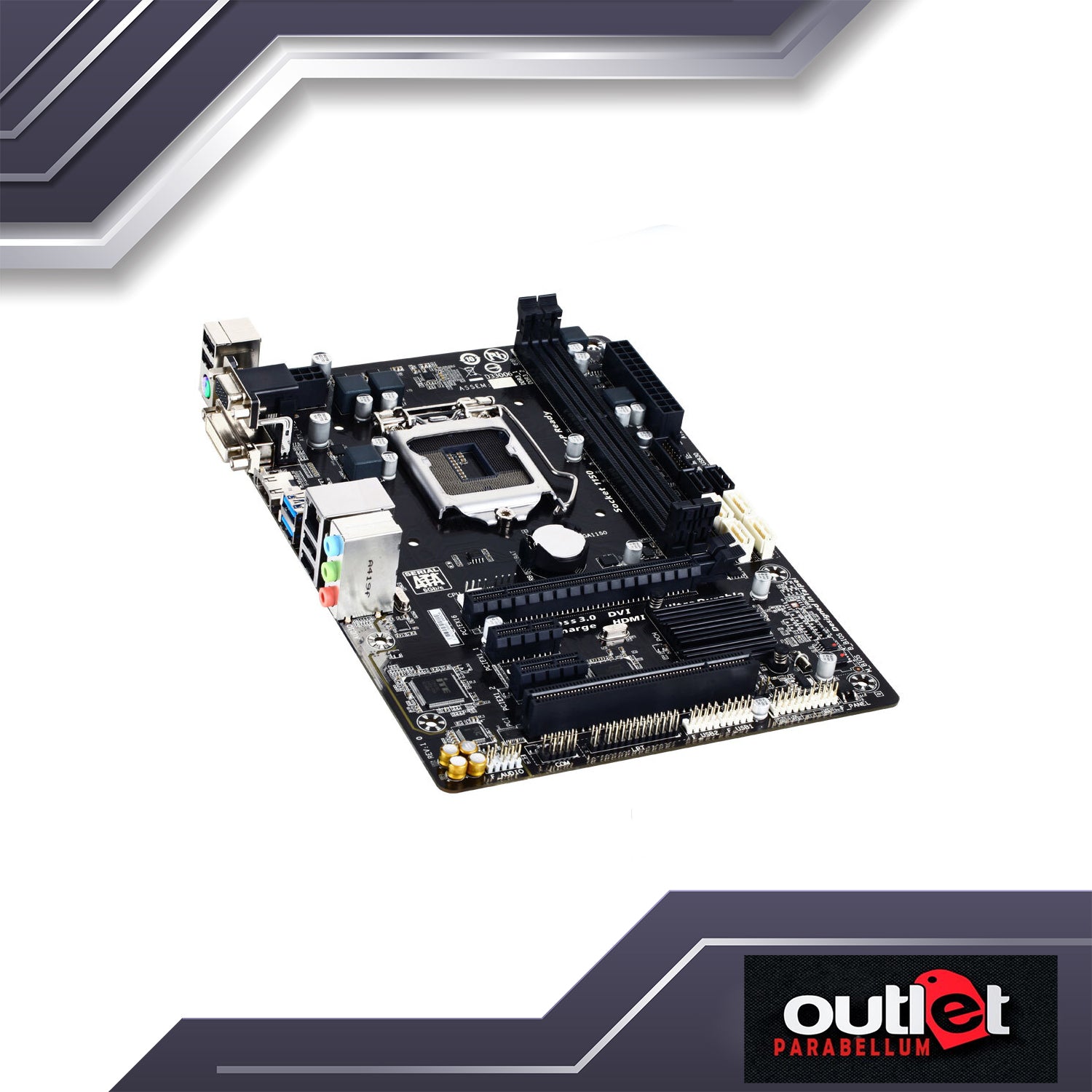

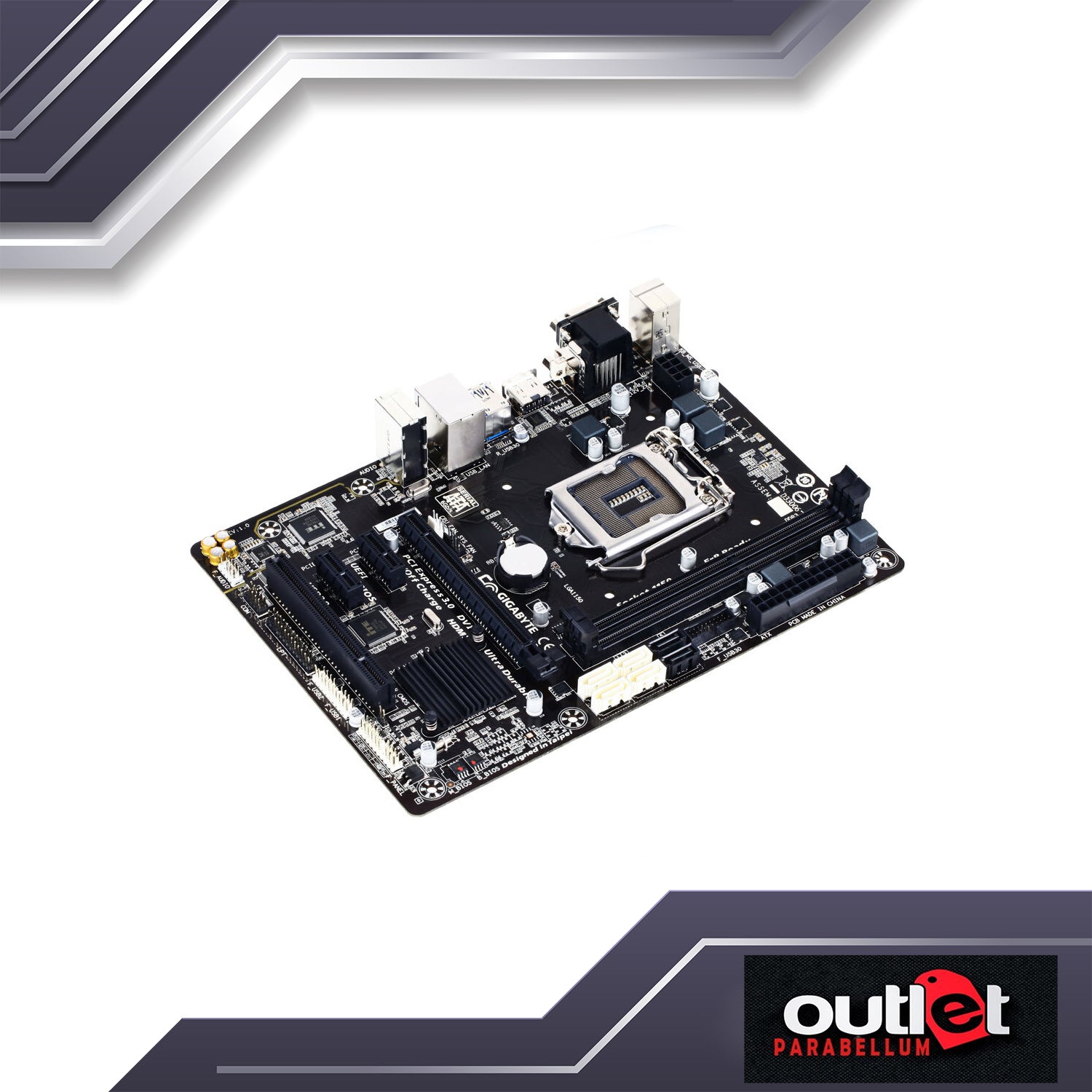

GA-B85M-HD3-A (rev. 1.0) Overview Specification Support News & Awards Buy CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 packageL3 cache varies with CPU Chipset Intel® B85 Express Chipset
Memory 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor - Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x12001 x DVI-D port, supporting a maximum resolution of 1920x1200* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz* Support for HDMI 1.4a version.
