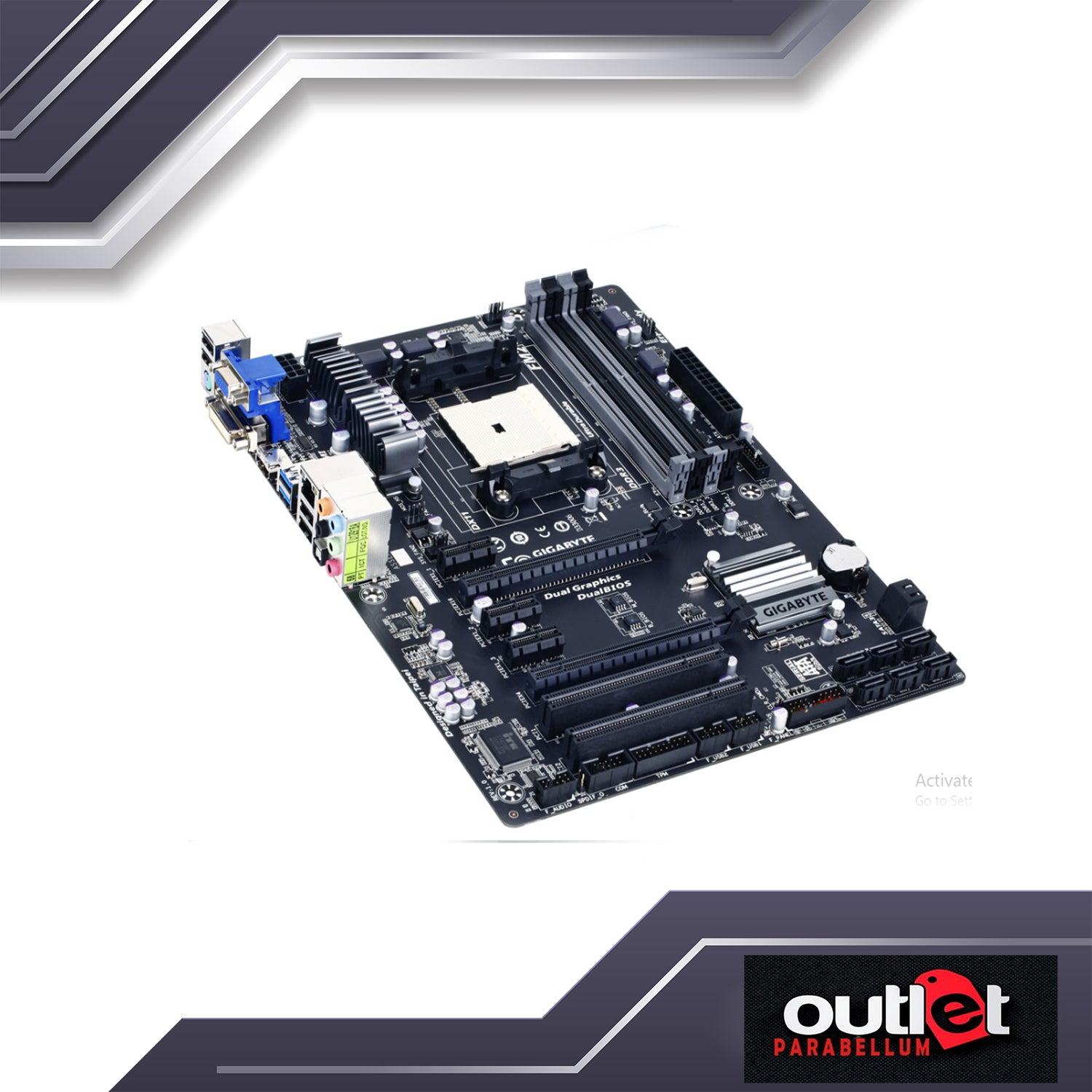

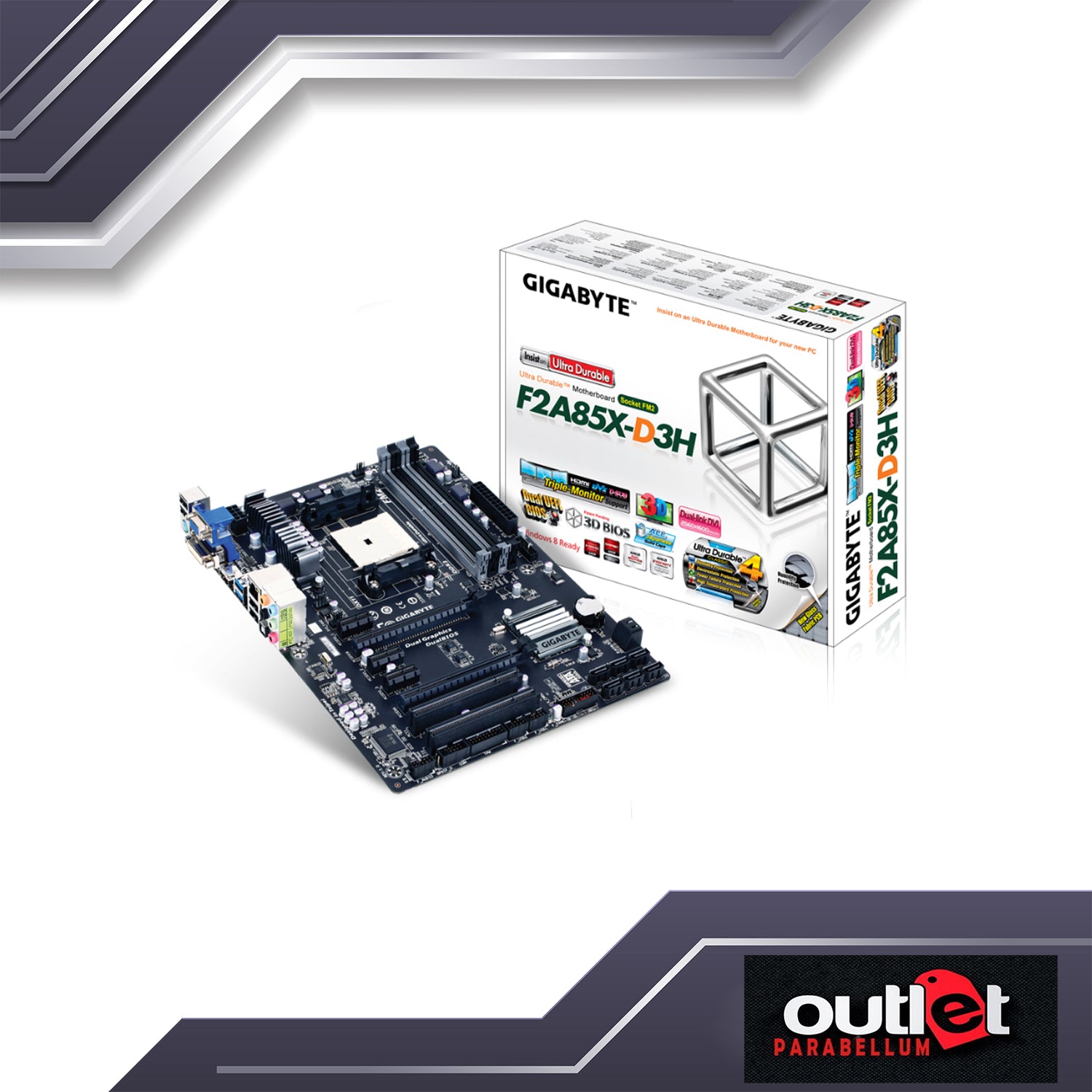

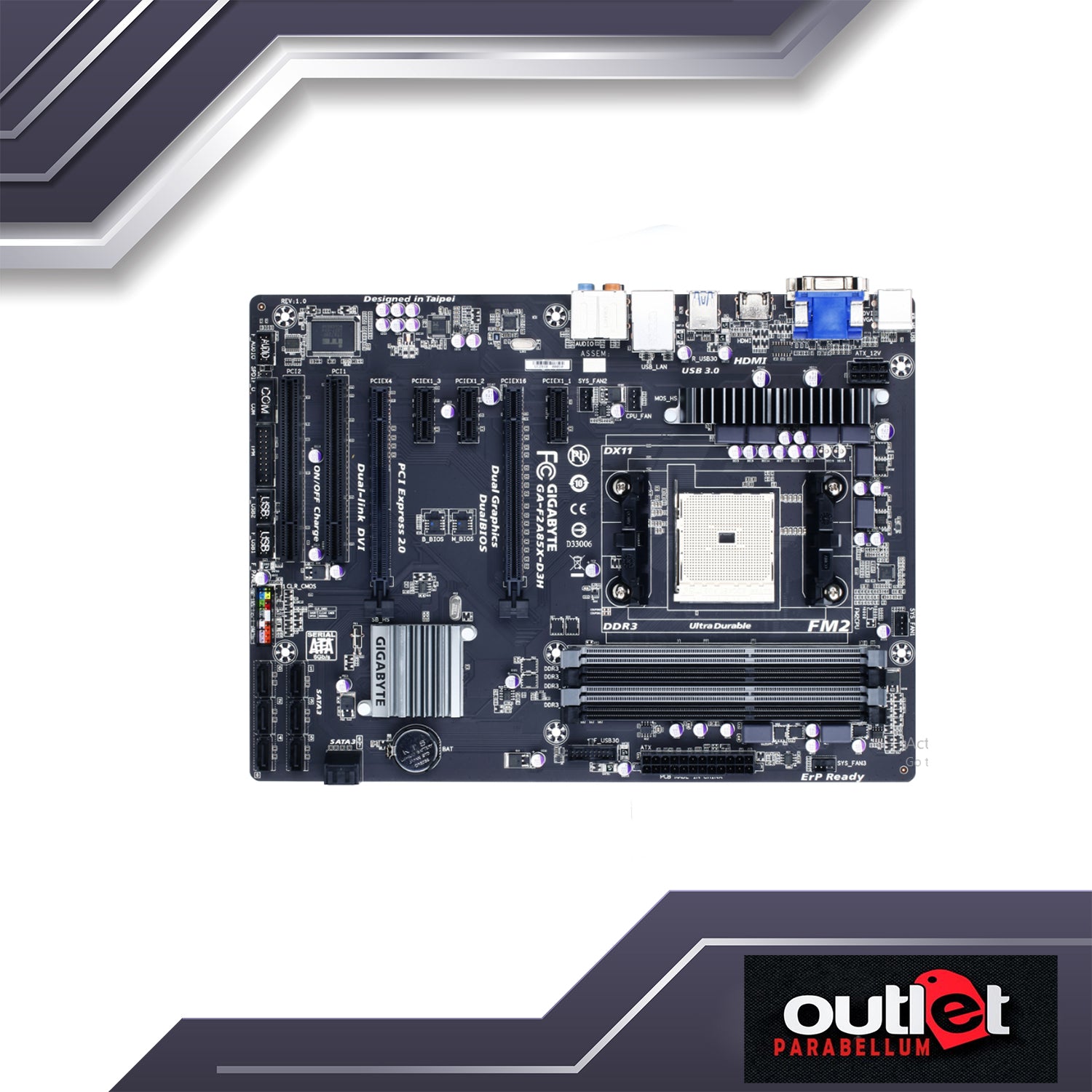

Refurbish GIGABYTE GA-F2A85X-D3H GIGABYTE AMD A85X FM2 DDR3 XFIRE -- No Warranty!!!

**NO BACKPLATE INCLUDED***

GIGABYTE 3D BIOS technology with UEFI Dual BIOS™ design GIGABYTE Ultra Durable™4 Classic technology Supports socket FM2 AMD A-series/ Athlon-series processors Enhanced AMD Radeon HD 8000/7000-series graphics (DX11) integrated with the APU2 PCI-E 2.0 x16 interfaces with AMD Dual Graphics, Eye finity and Cross Fire support Features HDMI/ Dual-link DVI/ D-sub ports for Triple-Monitor support4 native USB 3.0 ports with transfer rates of up to 5Gbps8 native SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support GIGABYTE On/Off Charge technology.

GA-F2A85X-D3H (rev. 1.0)Overview Specification Support News & Awards Learn more Buy

APUFM2 Socket: AMD A series processors AMD Athlon™ series processors

ChipsetAMD A85XMemory4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules “Memory support is dependent on memory module compatibility and system OS”.(Please refer "Memory Support List" for more information.)Onboard Graphics APU with integrated AMD Radeon™ HD 8000/7000 series graphics:

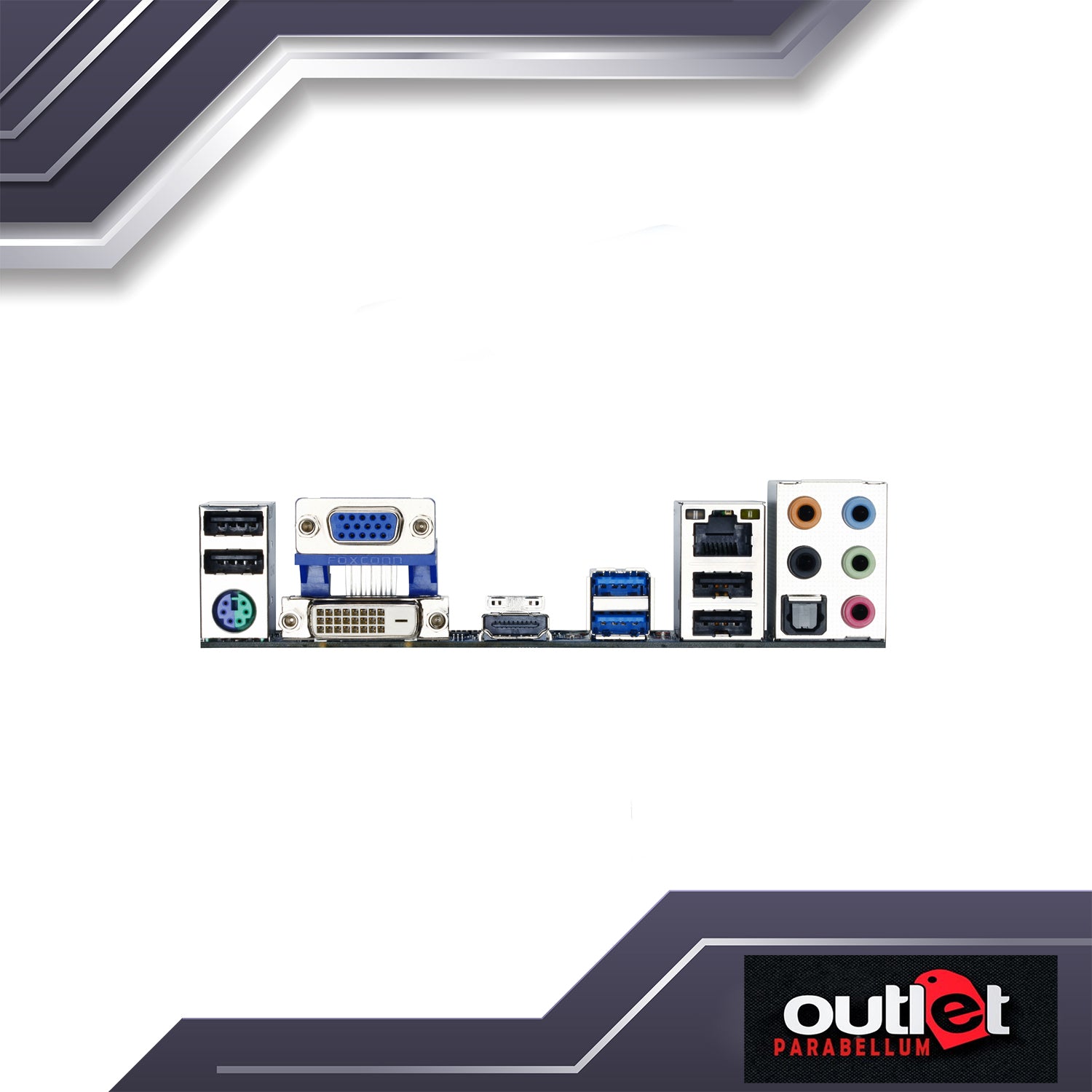

* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.1 x D-Sub port1 x DVI-D port, supporting a maximum resolution of 2560x1600

* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 1920x1200 Audio Realtek ALC892 codec High Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutLAN1 x Realtek GbE LAN chip (10/100/1000 Mbit)Expansion Slots1 x PCI Express x16 slot, running at x16 (PCIEX16

)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)3 x PCI Express x1 slots(All PCI Express slots conform to PCI Express 2.0 standard.)2 x PCI slots Multi-Graphics Technology Support for AMD CrossFire™ technology Support for AMD Dual Graphics technology

* Only A series APUs support AMD Dual Graphics. Storage InterfaceChipset:8 x SATA 6Gb/s connectors supporting up to 8 SATA 6Gb/s devices Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBODUSBC hipset: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)Up to 8 USB 2.0/1.1 ports (4 ports) .
