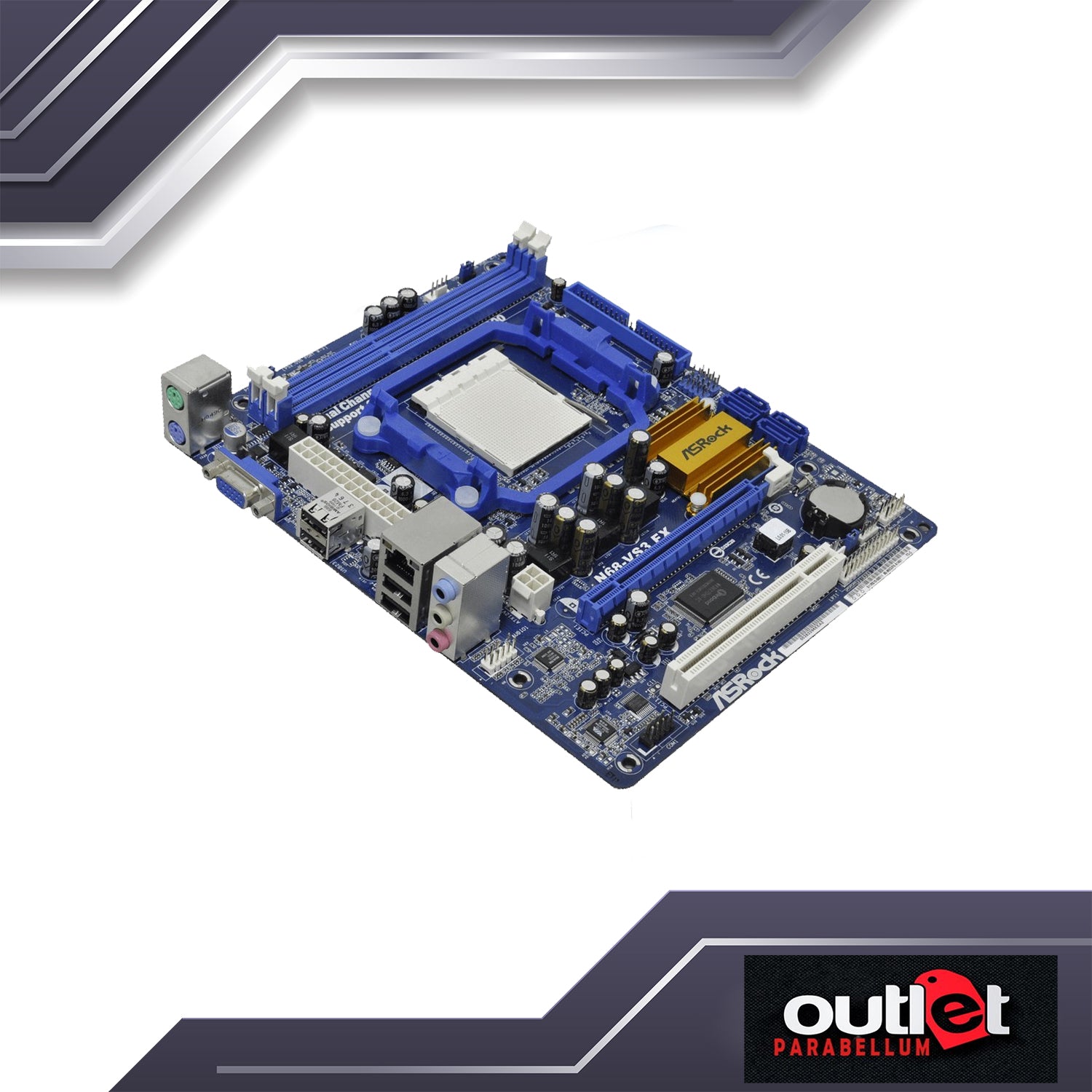

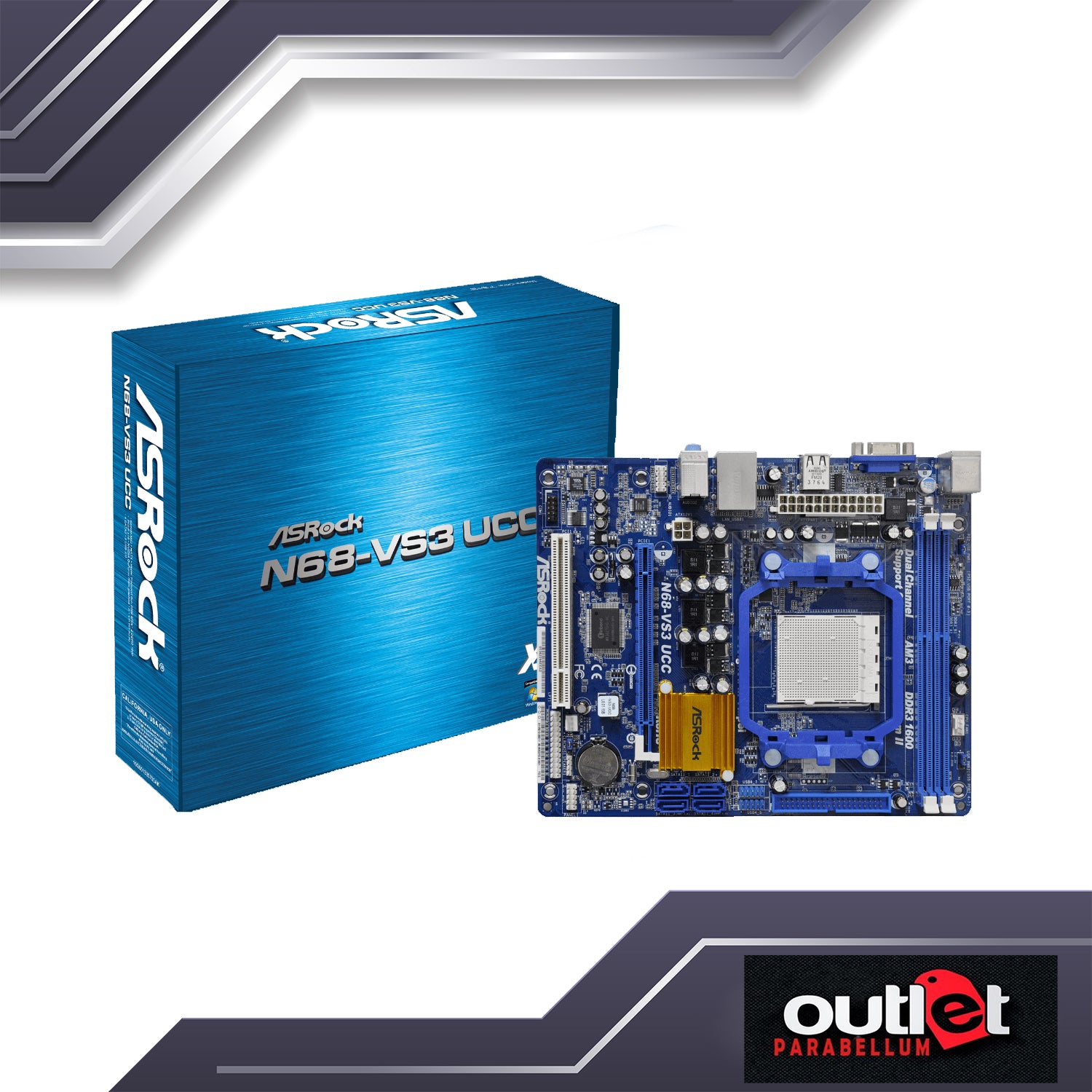

Refurbished ASROCK AR-N68-VS3-UCC ASROCK AM2/AM3+, NF7025 DDR3 AVL Supports AM3 Socket - No Warranty!!!

CPU

- Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors

- Supports Six-Core CPU

- Supports UCC feature (Unlock CPU Core)

- Supports AMD's Cool 'n' Quiet Technology

- FSB 1000MHz (2.0 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport Technology



Chipset

- NVIDIA® GeForce 7025 / nForce 630a



Memory

- Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB*

BIOS

- 4Mb AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, VCCM Voltage Multi-adjustment

Graphics

- Integrated NVIDIA® GeForce 7025 graphics

- DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB

- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz



Audio

- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

- Realtek PHY RTL8201EL

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE



Slots

- 1 x PCI Express x16 slot

- 1 x PCI slot

Connector

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Print Port header

- 1 x COM port header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O

I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

- ASRock OC Tuner

- Intelligent Energy Saver

- Instant Boot

- ASRock Instant Flash

- ASRock OC DNA

- ASRock APP Charger

- ASRock XFast USB

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version),

ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Accessories

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables (optional)
