Refurbished Foxconn K8M890M2MA-RS2H Motherboard - No Warranty

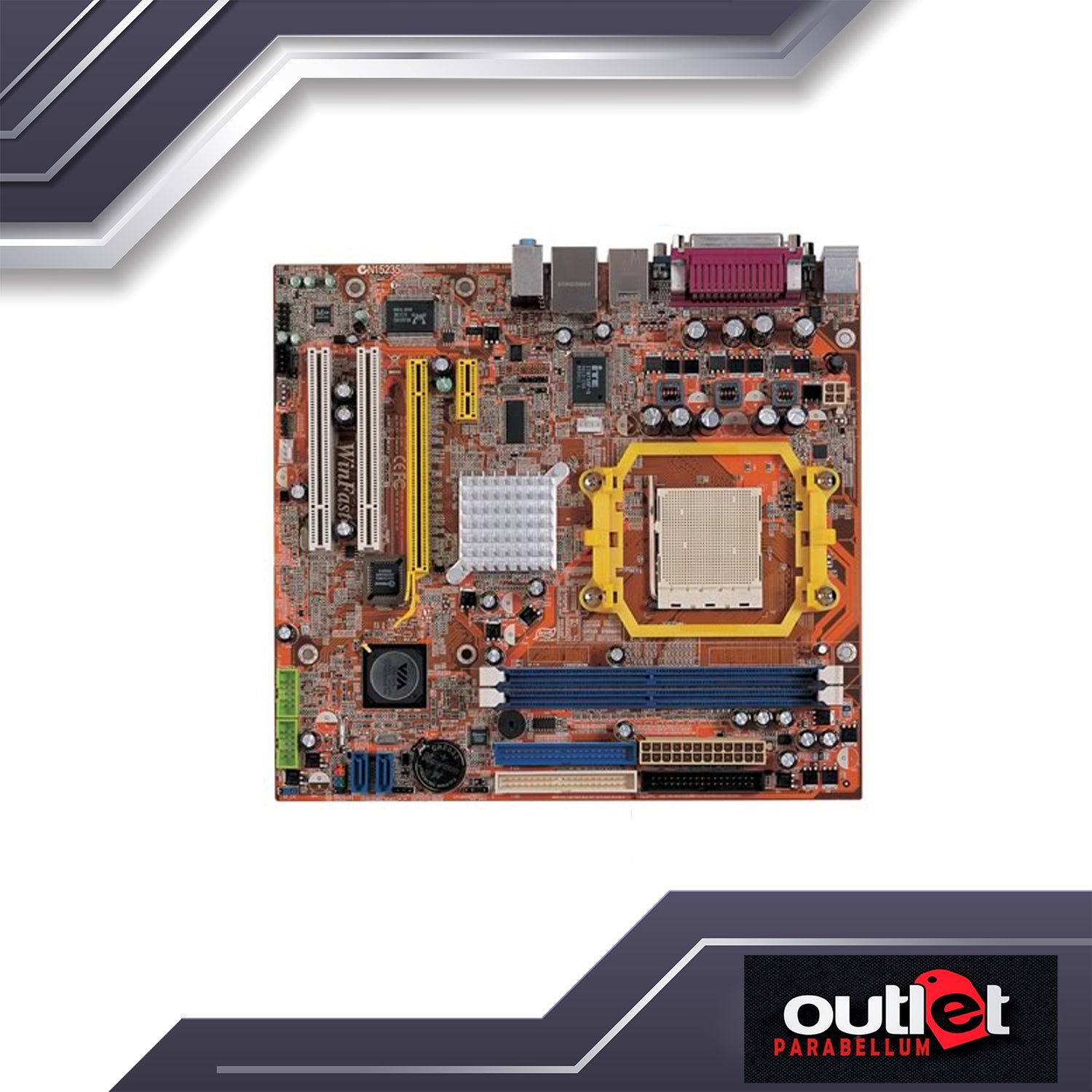

Foxconn K8M890M2MA-RS2H

The Foxconn K8M890M2MA-RS2H is based on the VIA K8M890 + VT8237R-plus, which supports AMD Sempron, Athlon 64, Athlon 64FX, Athlon 64X2 processors for Socket AM2. It features 2000 MT/s Hyper Transport FSB and Dual channel DDR2 800/667 x2 DIMMs (max 2GB).

Main features

• Size: mATX form factor - 9.6" x 8.8"
• Microprocessor: Supports socket AM2 for AMD Athlon TM 64 FX / Athlon 64 X2 Dual-Core / AthlonTM 64/ Sempron processors
• Supports HyperTransport up to 2000MT/s
• Chipset: VIA K8M890 (North Bridge) + VT8237R Plus/VT8237A (South Bridge)
• SystemMemory: Two 240-pin DDRII slots, Supports Dual Channel DDRII 800/667/533 memory up to 2GB
• Eight USB 2.0 Ports
• Onboard Serial ATA supports two SATA devices with RAID 0, 1,0+1 and JBOD
• Onboard LAN supports 10/100/ Mbit/sec Ethernet
• Onboard Audio (5.1), AC’97 2.3 compliant, supports SPDIF output
• Two PCI slots, 1x PCI Express 16X slot and 1x PCI Express 1X slot
• Green Function: Supports ACPI, S0, S1, S3, S4 and S5
• PCI 2.3 Specification Compliant
• Supports PC Health function (capable of monitoring system voltage, CPU temperature, system temperature and fan speed)
