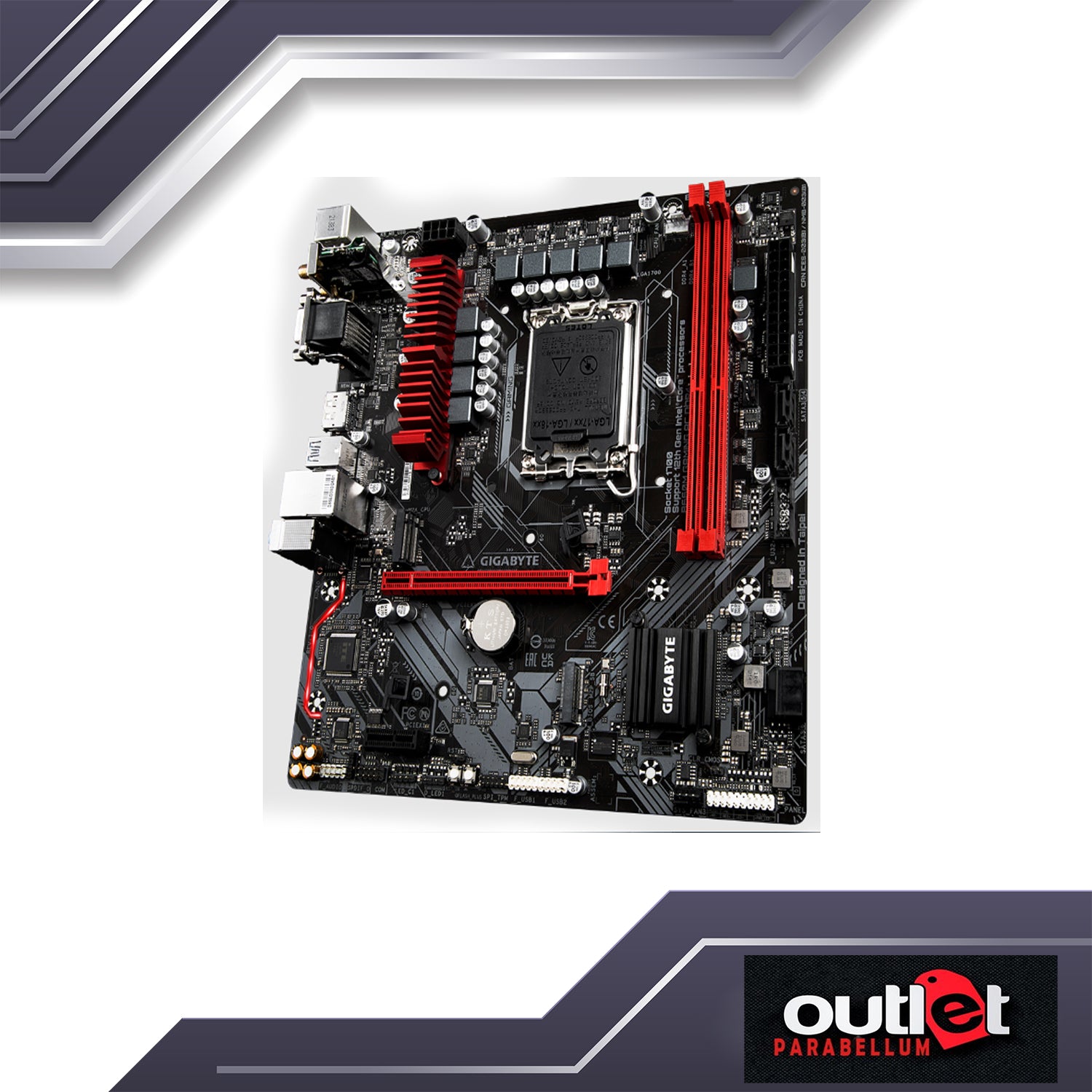

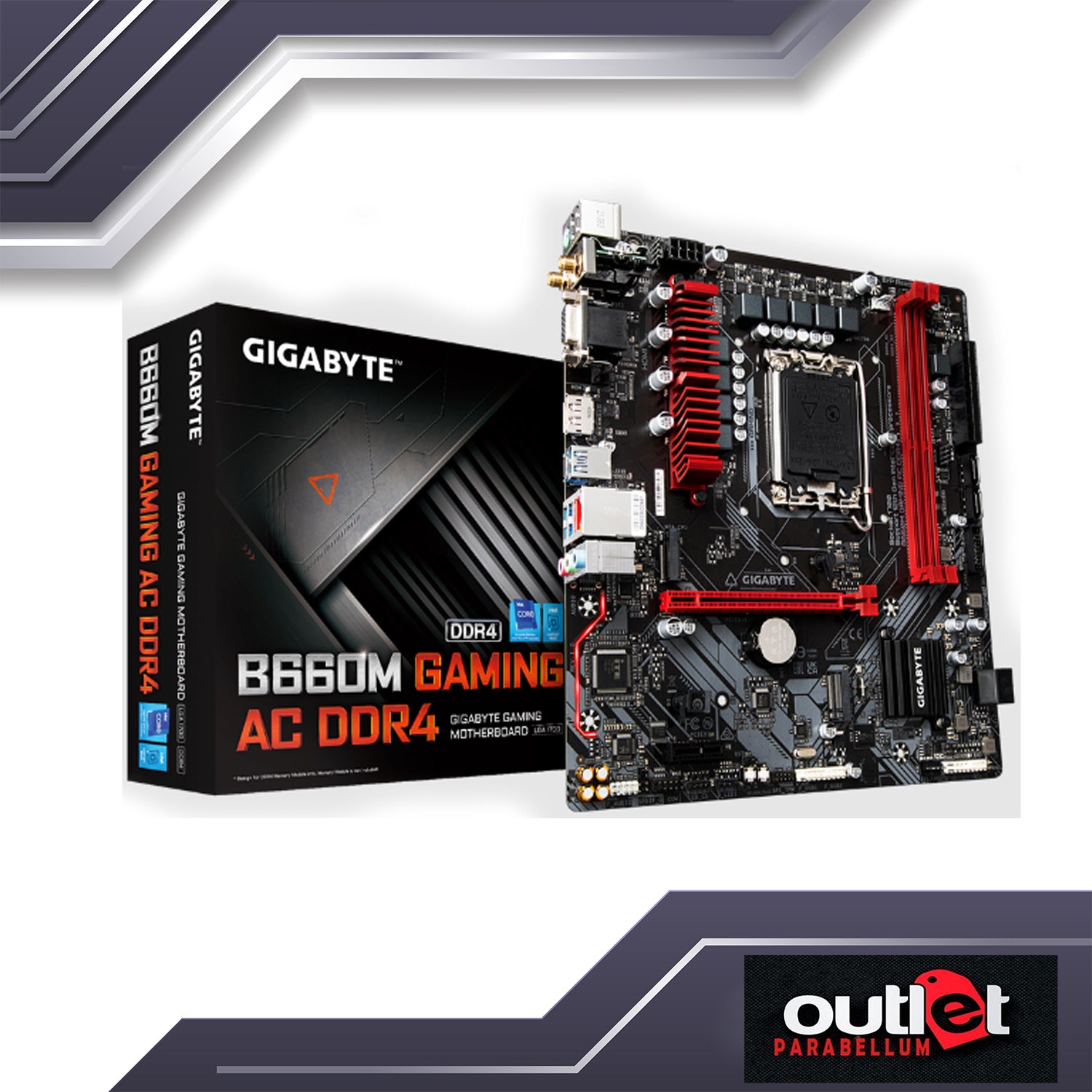

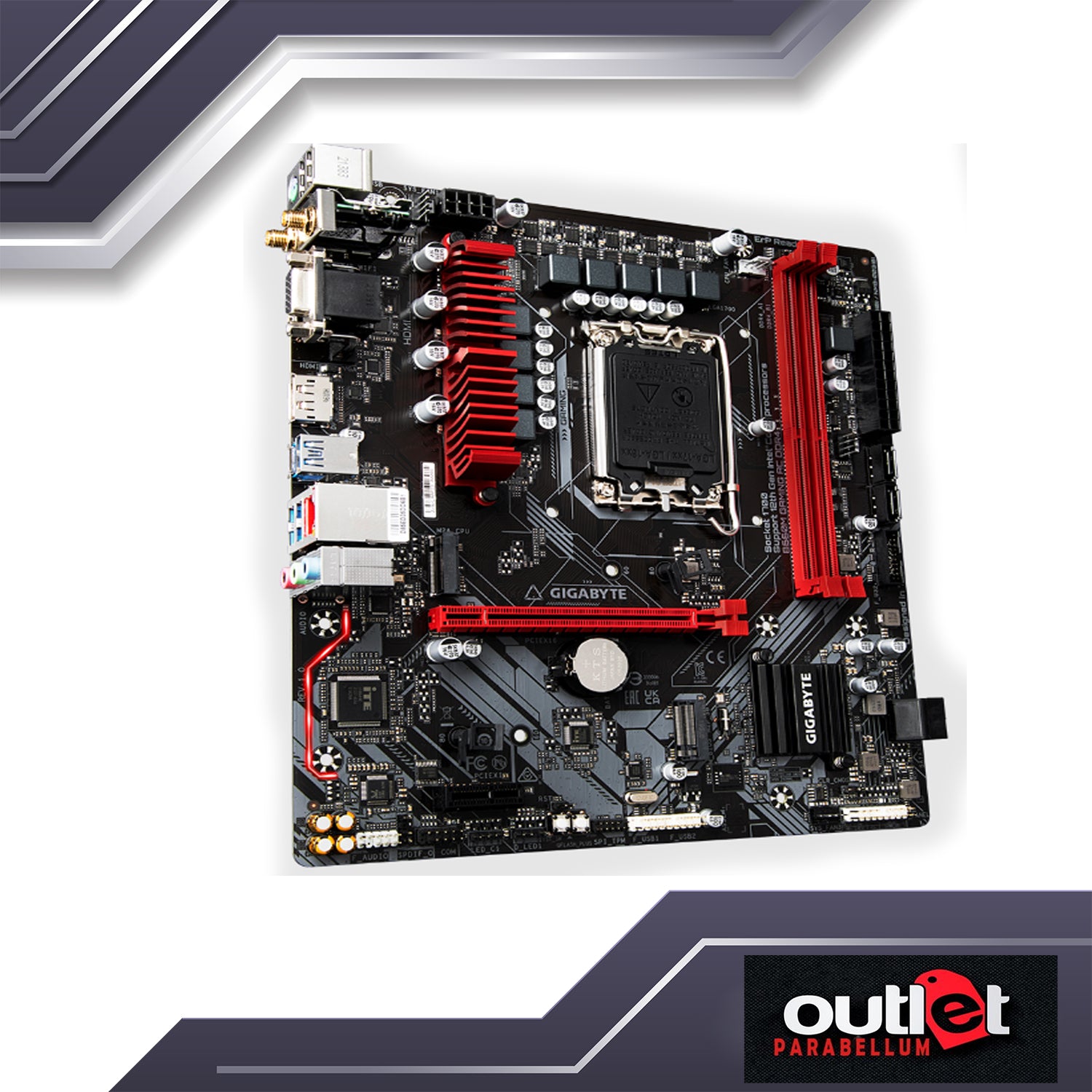

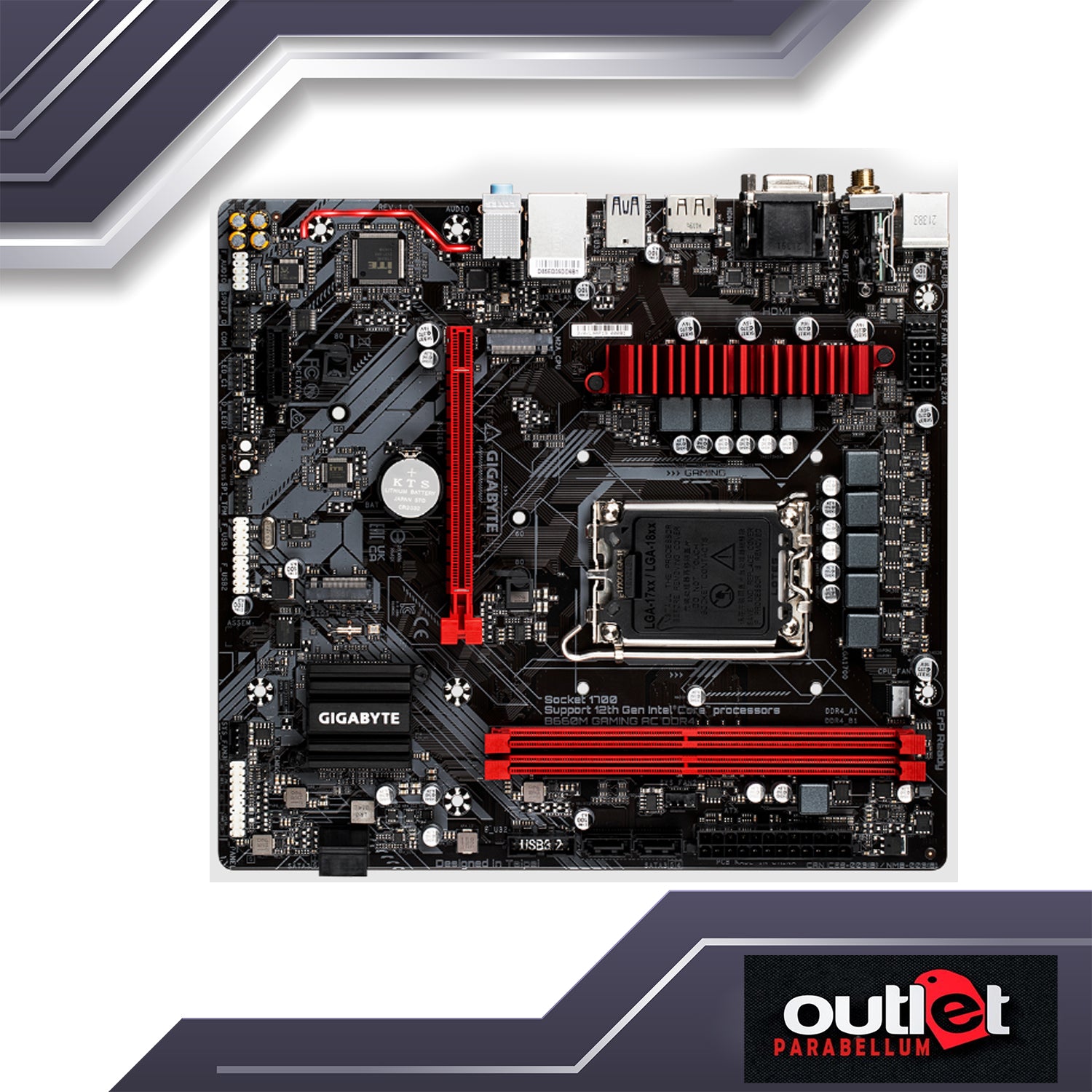

REFURBISHED GA-B660M-GAMING-AC-DDR4 GIGABYTE INTEL B660 LGA1700 DDR4 6+2+1 DIGITAL VRM 2.5GbE LAN, 11AC WIFI MATX Motherboard

* Supports 12th Gen Intel® Core™ Series Processors​​
* Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
* 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
* Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
* WIFI 802.11ac & BT with AERO Antenna​​
* Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
* Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections​​
* High Quality Audio Capacitors and Audio Noise Guard​
* RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
* Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
* Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

- 6+2+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation
- 8-pin Solid Pin CPU Power Connector

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte. bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
