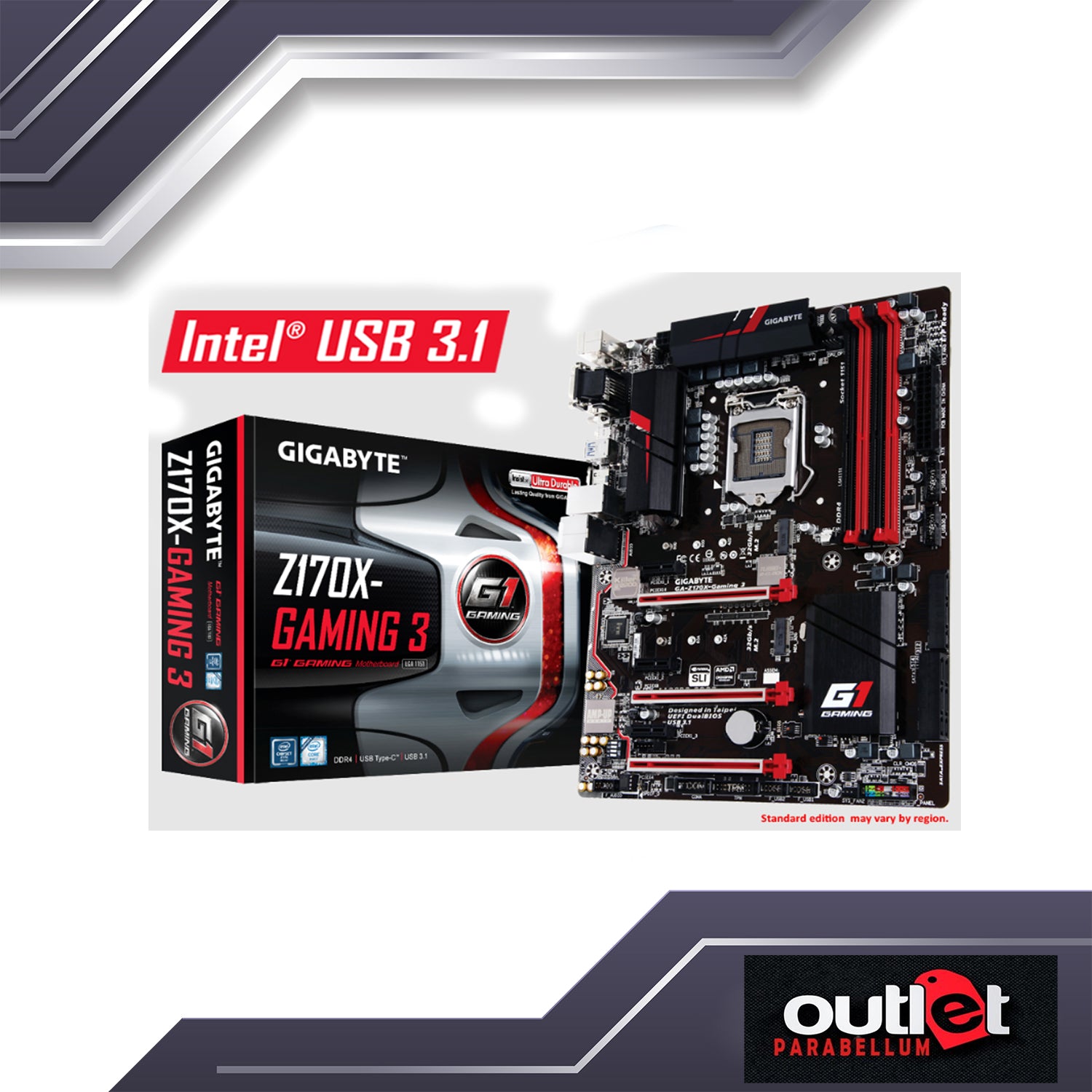

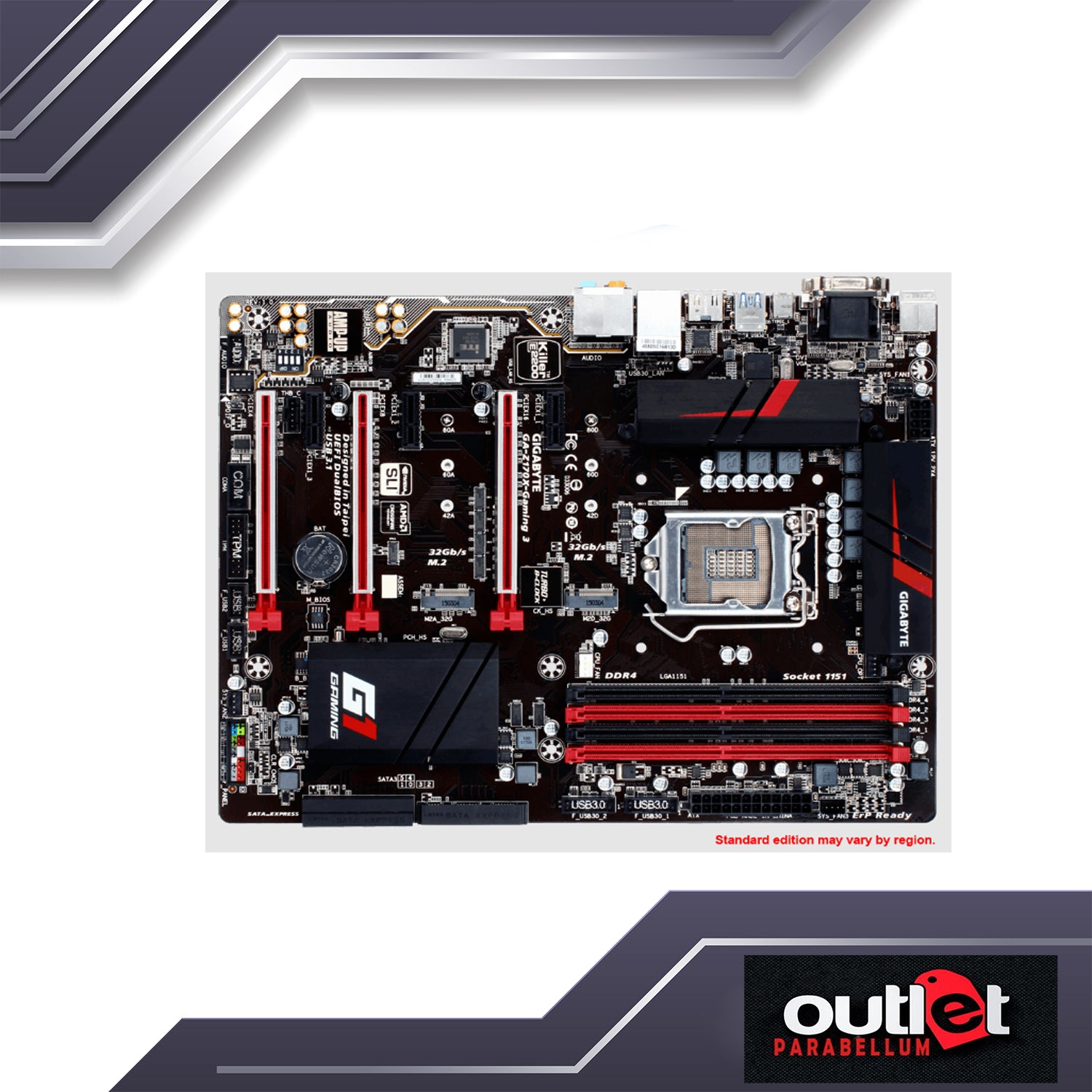

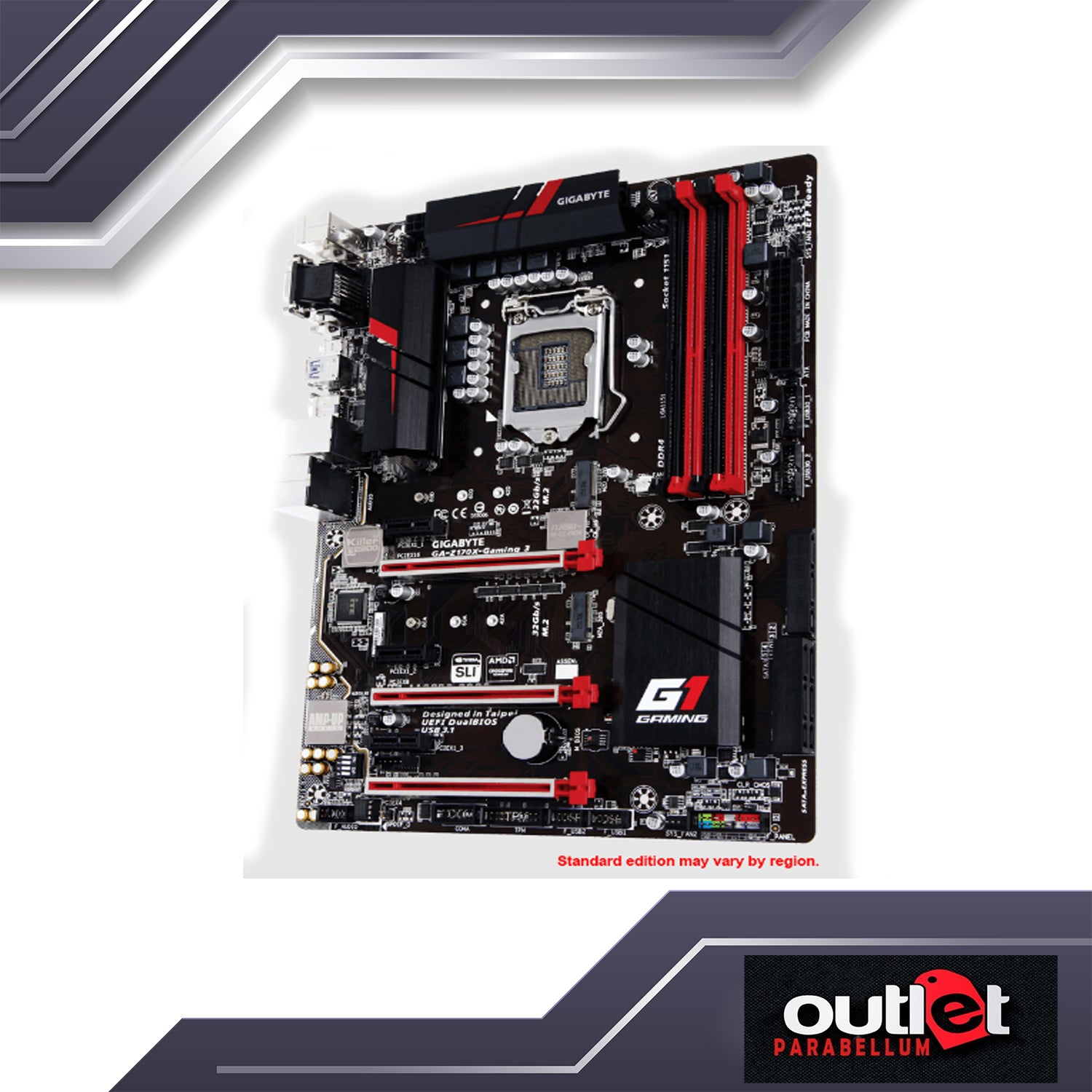

REFURBISHED GA-Z170X-GAMING-3 GIGABYTE INTEL Z170 S1151 DDR4 USB 3.1 Motherboard

• Supports 7th / 6th Generation Intel® Core™ Processors
• Dual Channel DDR4, 4 DIMMs
• Intel® USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
• 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
• Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
• 3 SATA Express Connectors for up to 16Gb/s Data Transfer
• 115dB SNR HD Audio with Built-in Rear Audio Amplifier
• Killer™ E2200 Gaming Networks
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• GIGABYTE UEFI DualBIOS™ Technology

The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports.

With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies.

The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

GIGABYTE Exclusive : Upgradable OP-AMP

Customizable

+ Users can choose audio quality based on individual listening preferences.

+ Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality

+ Improve audio dynamics and overall sound-quality with little cost.

+ No need for expensive speakers or high-end audio equipment.
