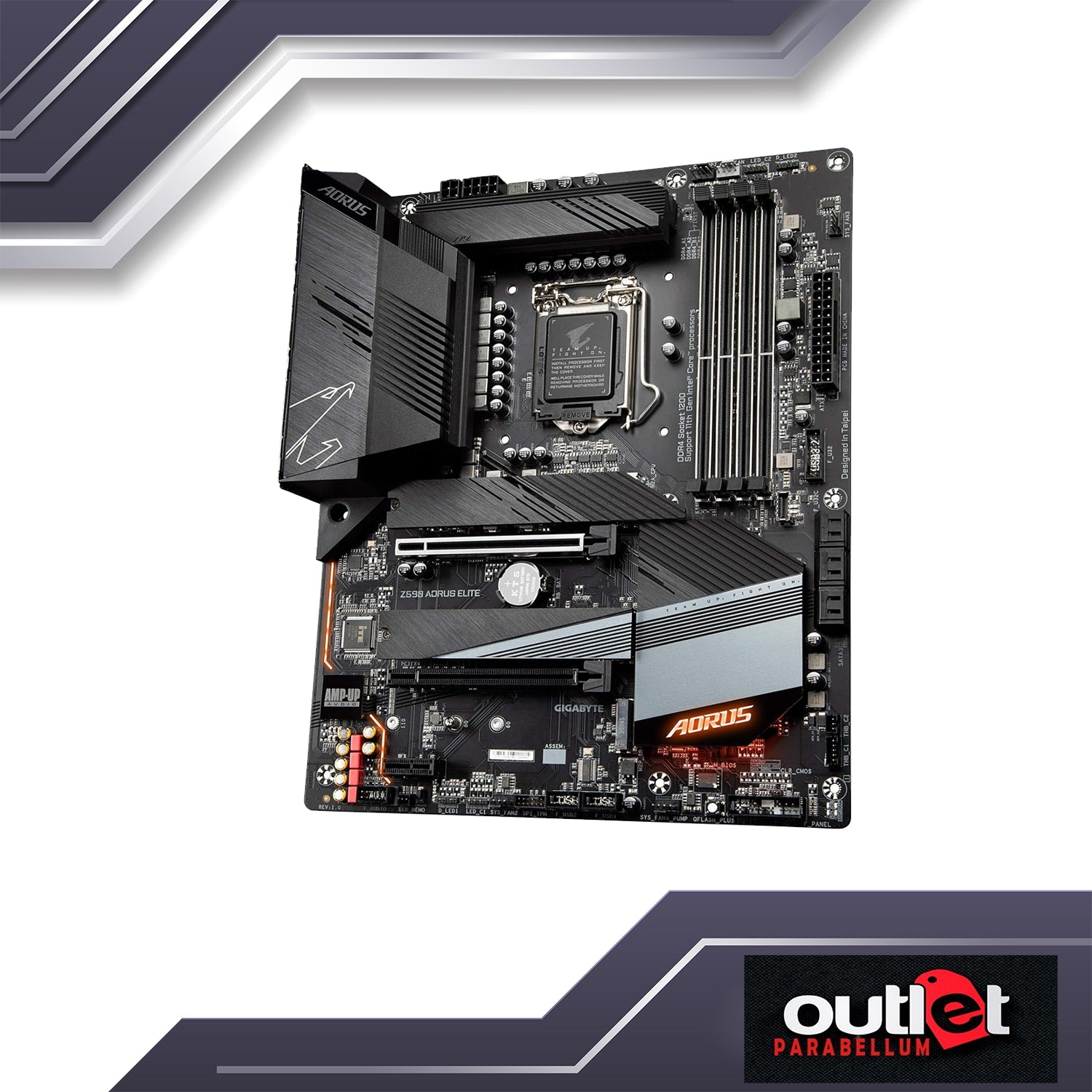

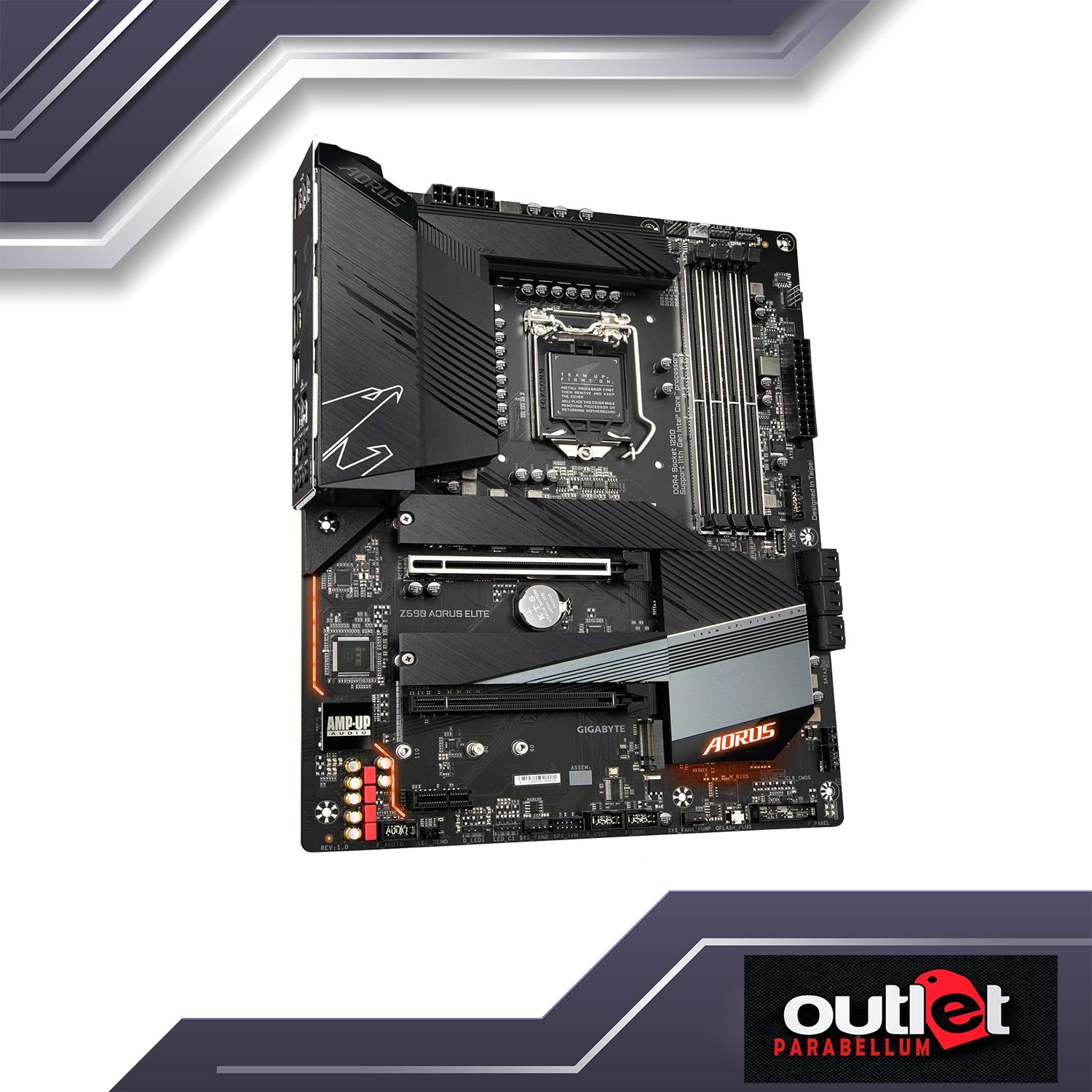

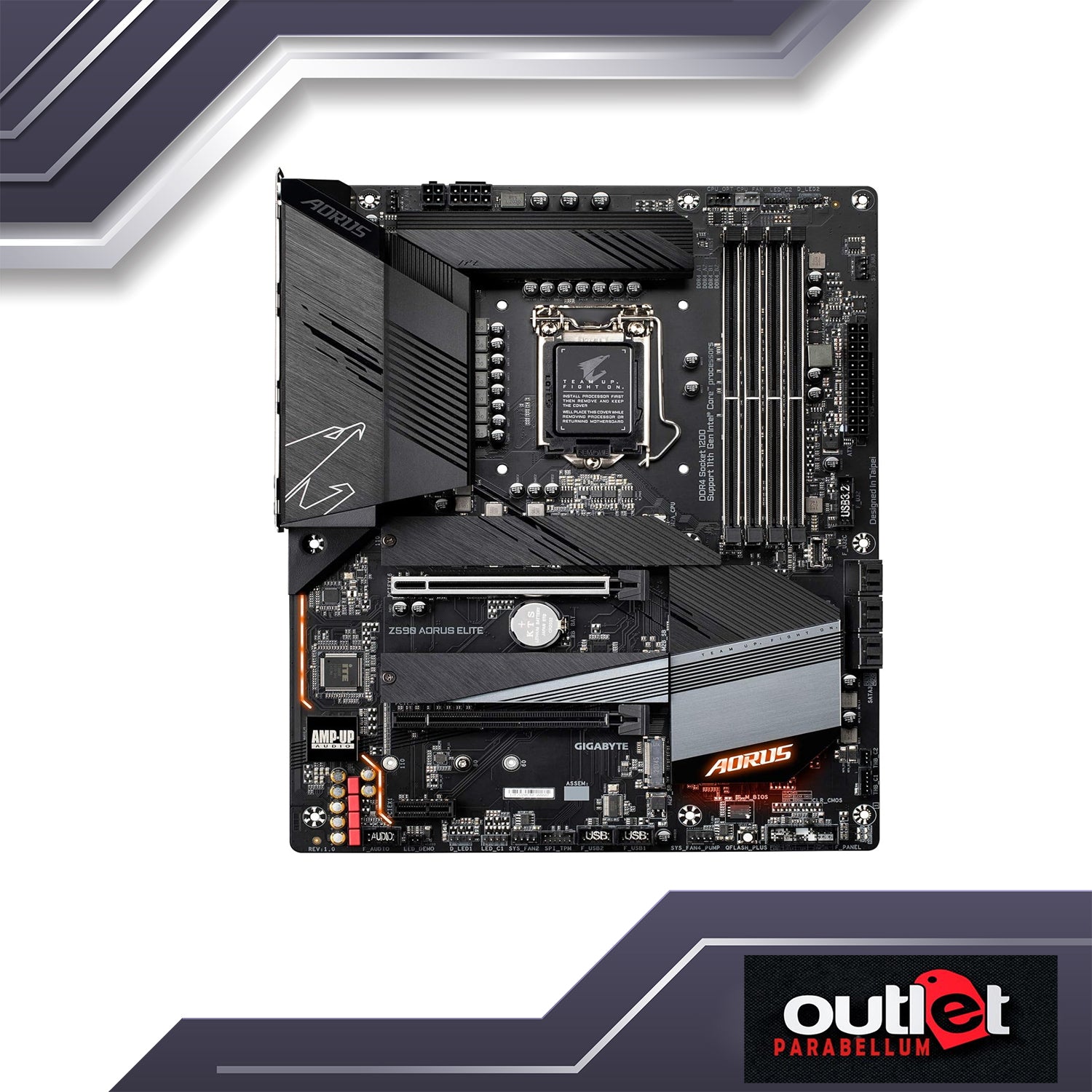

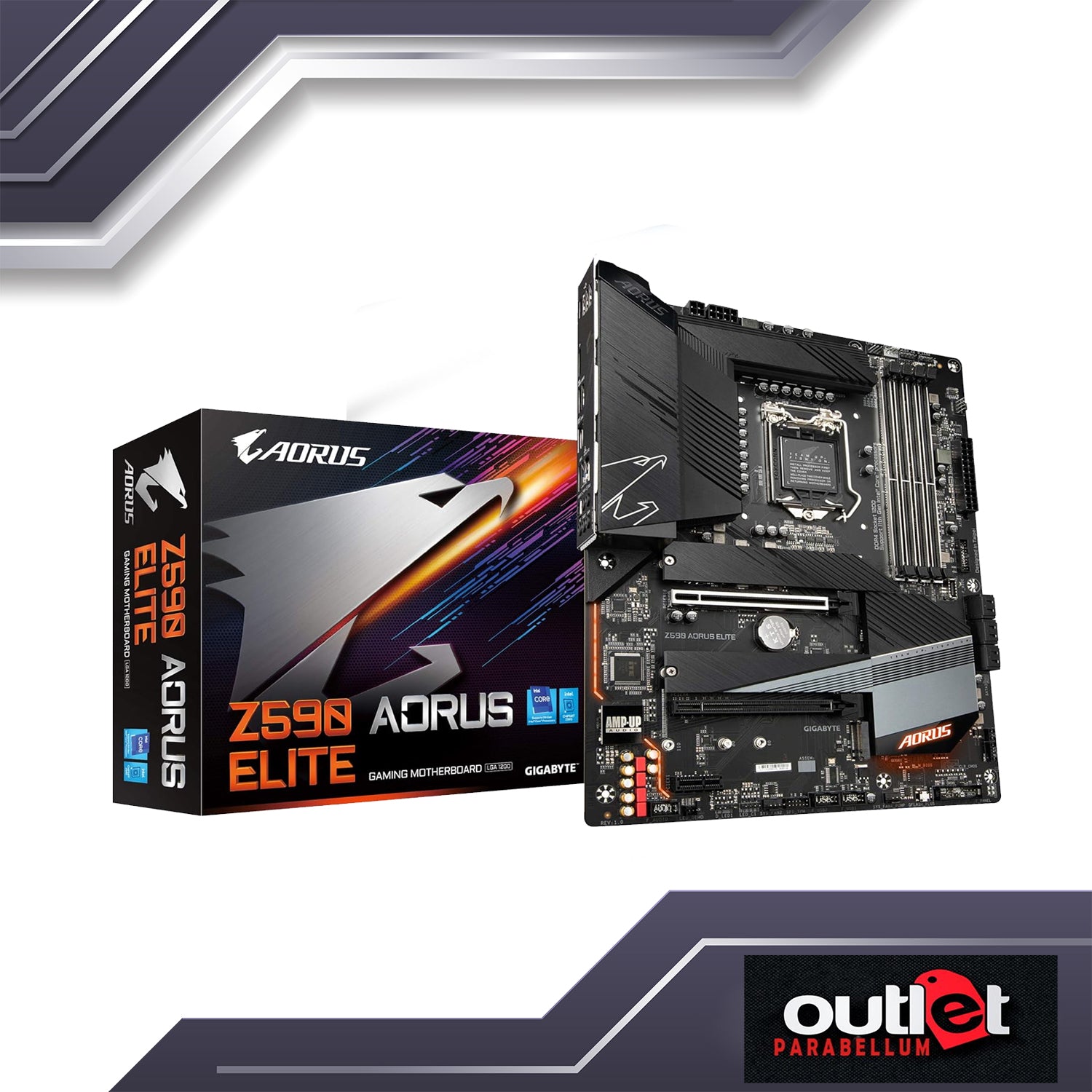

REFURBISHED GA-Z590-AORUS-ELITE AORUS INTEL Z590 LGA1200 12+1 PHASE DIGITAL POWER DESIGN 2.5GBE LAN ATX MB

DIRECT POWER DESIGN

Z590 AORUS ELITE motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.

ADVANCED THERMAL SOLUTION

Z590 AORUS ELITE uses high performance Full Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

UNPARALLELED PERFORMANCE

With the best quality components and GIGABYTE R&D design capability, the Z590 AORUS is a true beast among motherboards.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS ELITE provides all next generation network and storage to keep you up to speed.

CPU:

• LGA1200 package:
• 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
• 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel®

Pentium® processors / Intel® Celeron® processors*

• Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
• L3 cache varies with CPU

Chipset: Intel® Z590 Express Chipset

Memory:

• 11th Generation Intel® Core™ i9/i7/i5 processors:
• Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
• 10th Generation Intel® Core™ i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
