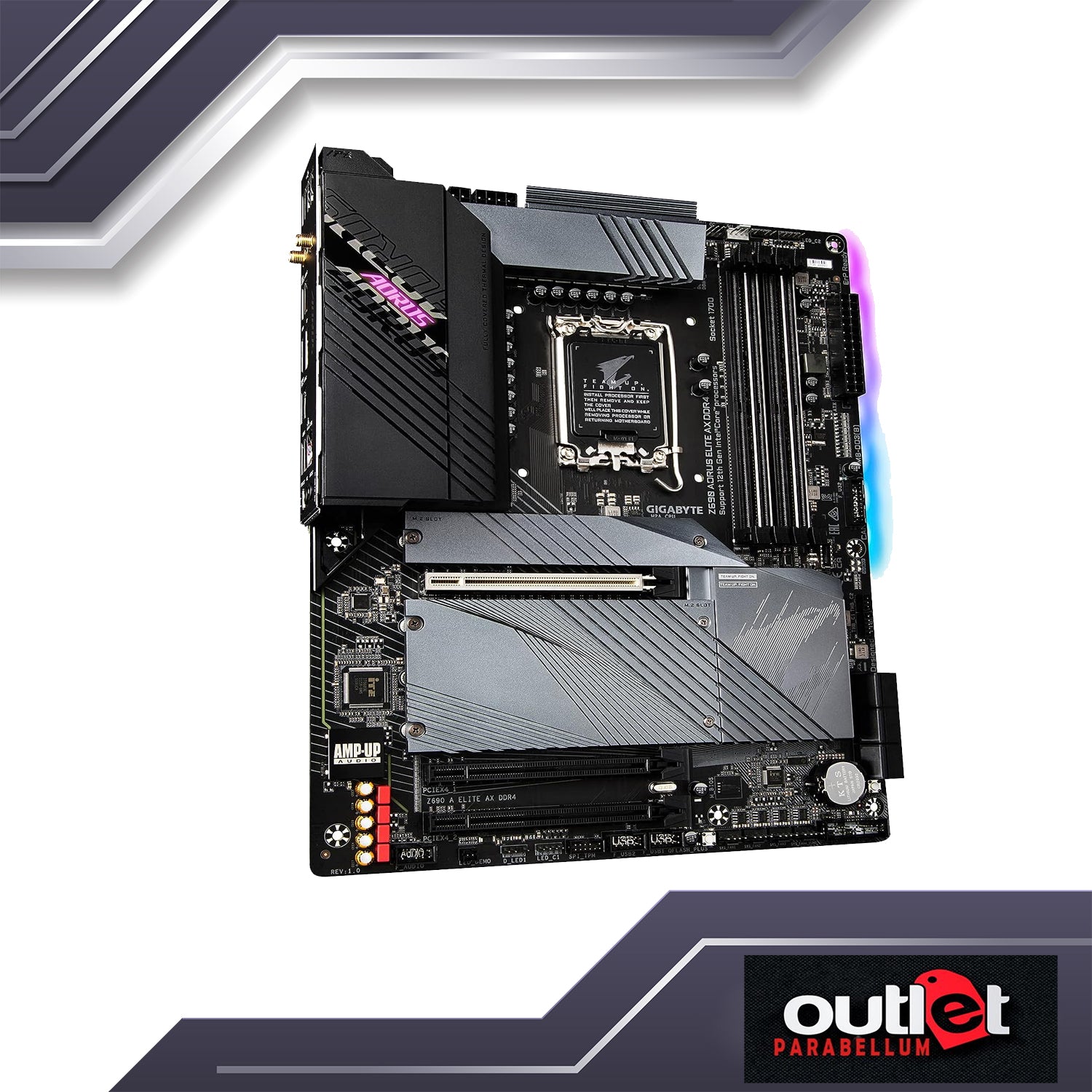

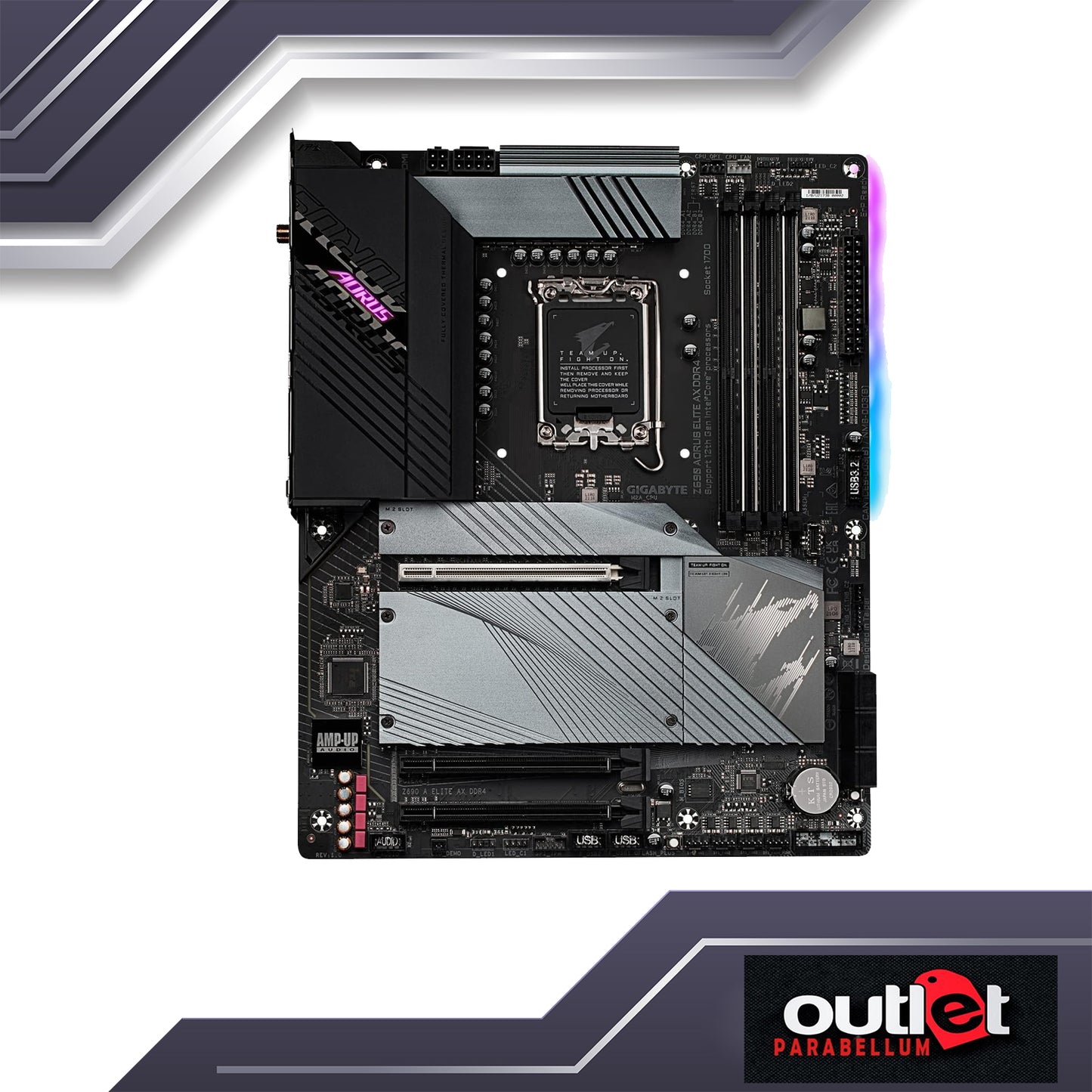

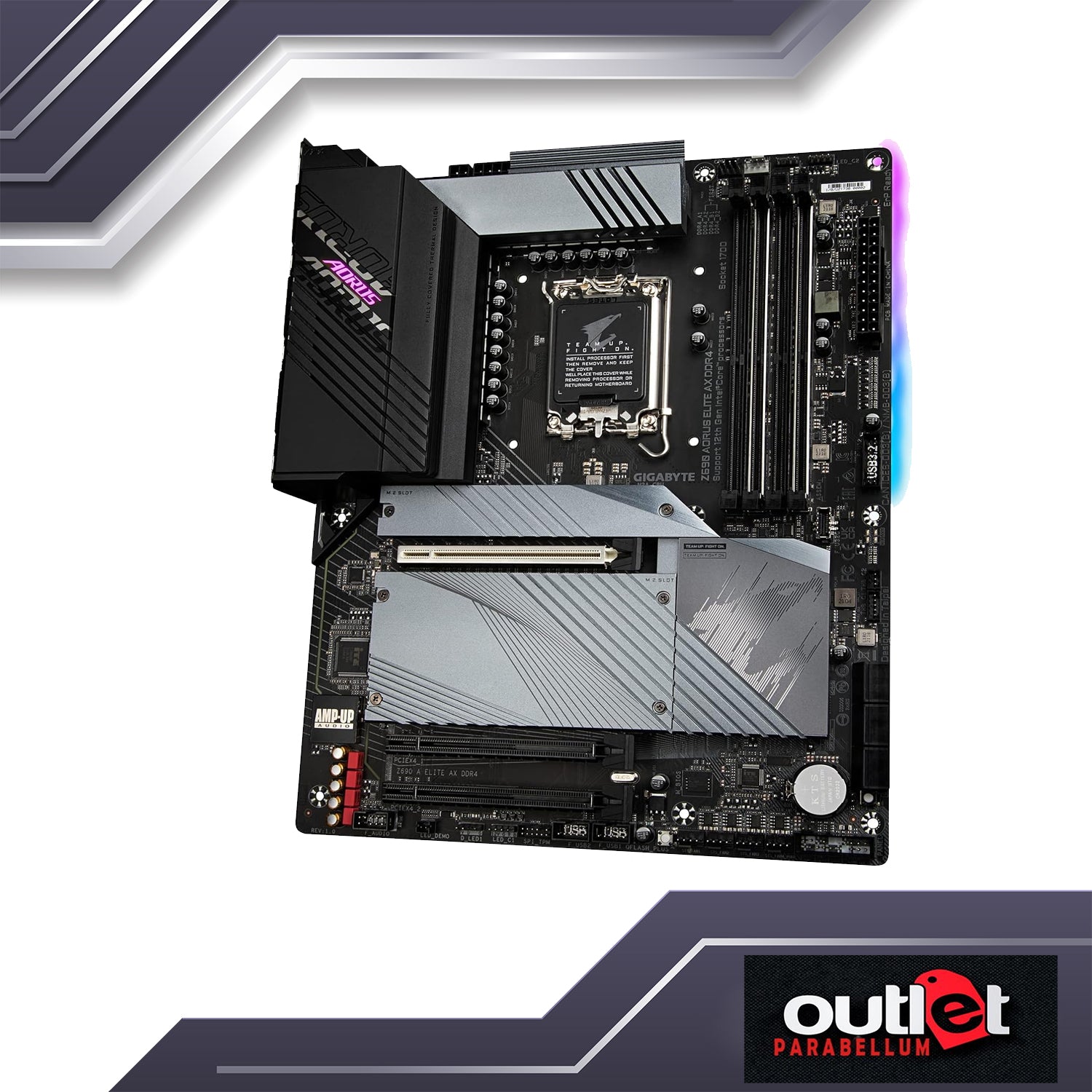

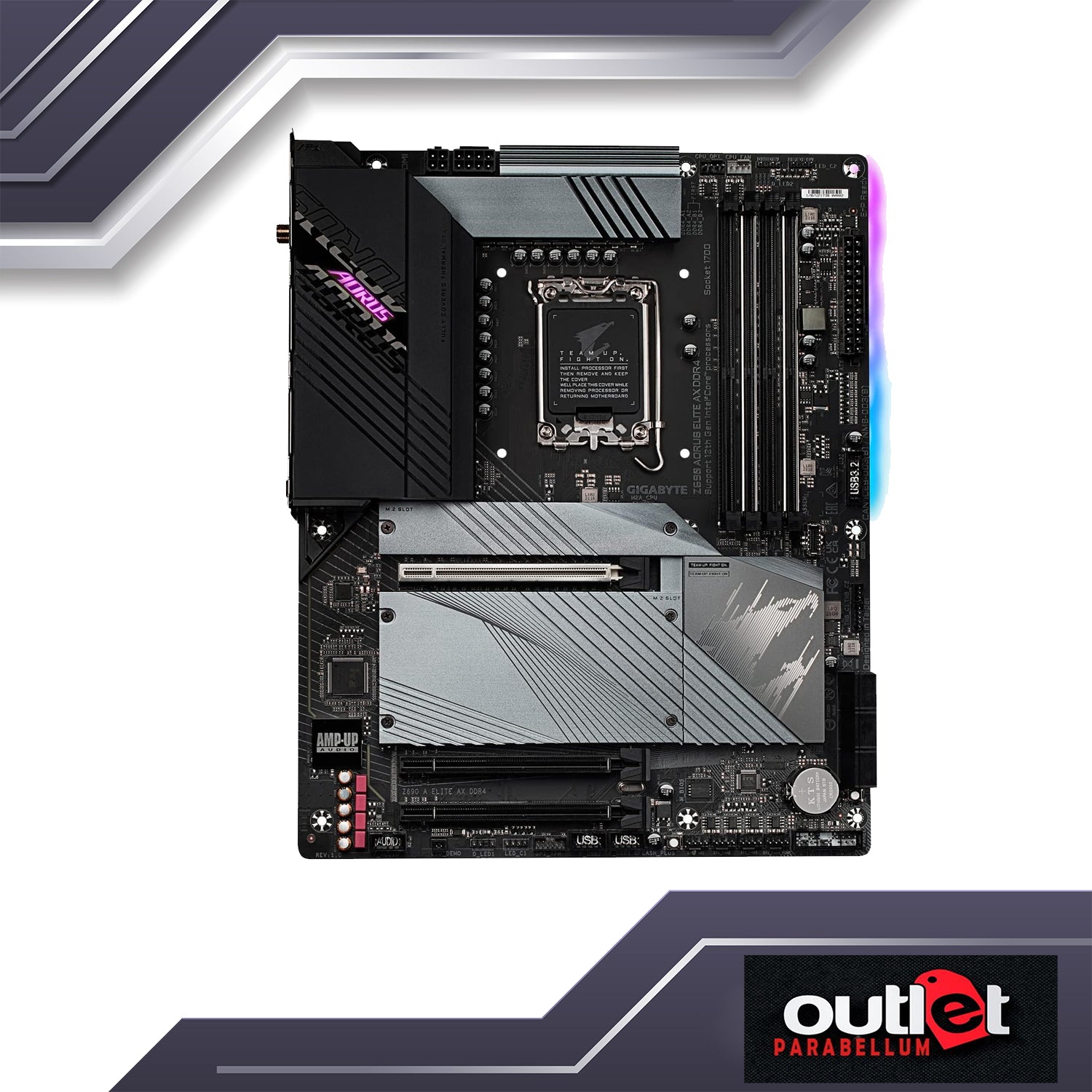

REFURBISHED GA-Z690-A-ELITE-AX-DDR4 AORUS INTEL Z690 LGA1700 DDR4 16+1+2 DIGITAL VRM(SPS 70A)WIFI6 2.5GbE LAN ATX MB MOTHERBOARD

CPU: LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

• L3 cache varies with CPU
• Chipset: Intel® Z690 Express Chipset
• Memory: 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3
• (Graphics specifications may vary depending on CPU support.)

Audio:

Realtek® ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

• High Definition Audio
• 2-channel analog output
• Support for S/PDIF Out
• 7.1-channel digital signals

* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
