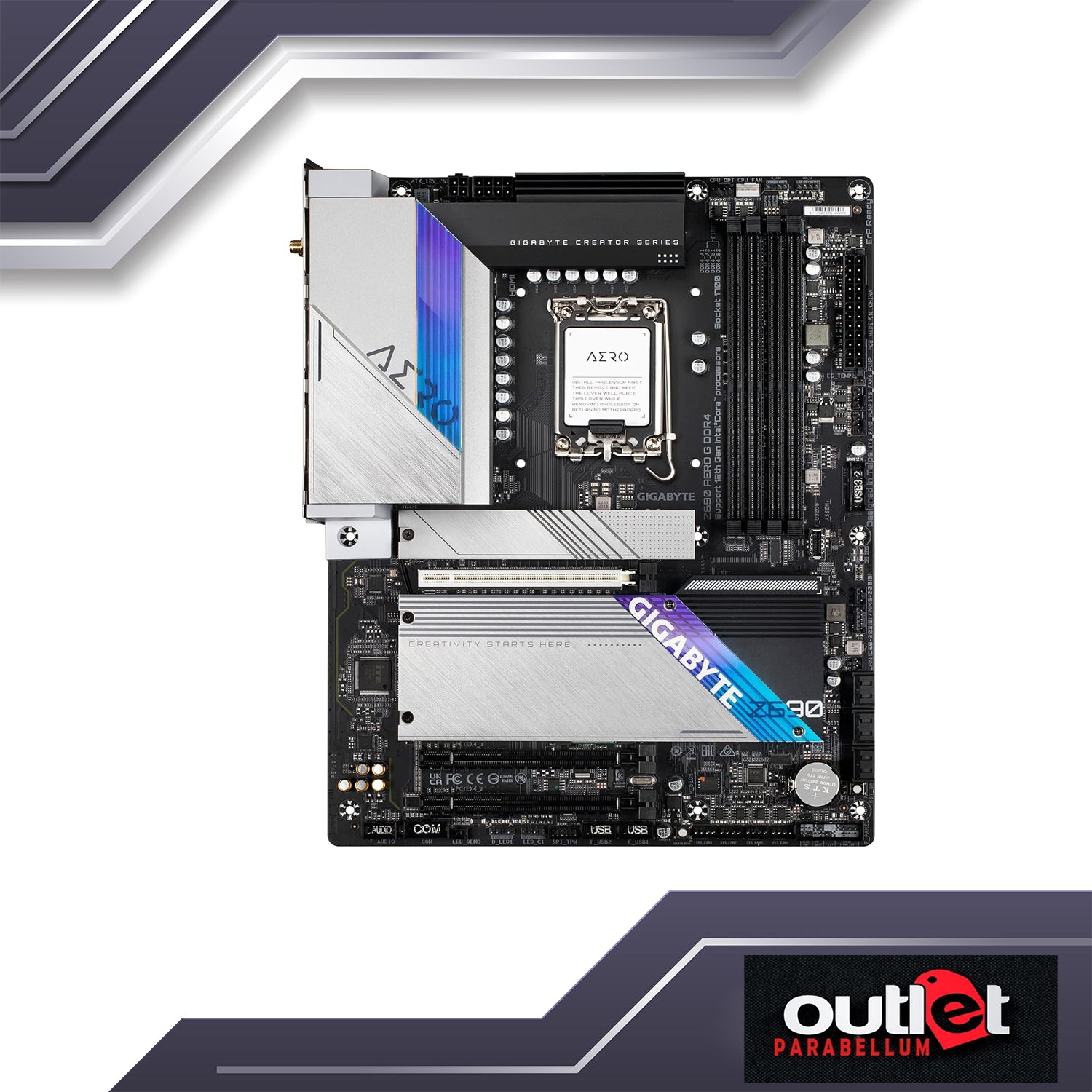

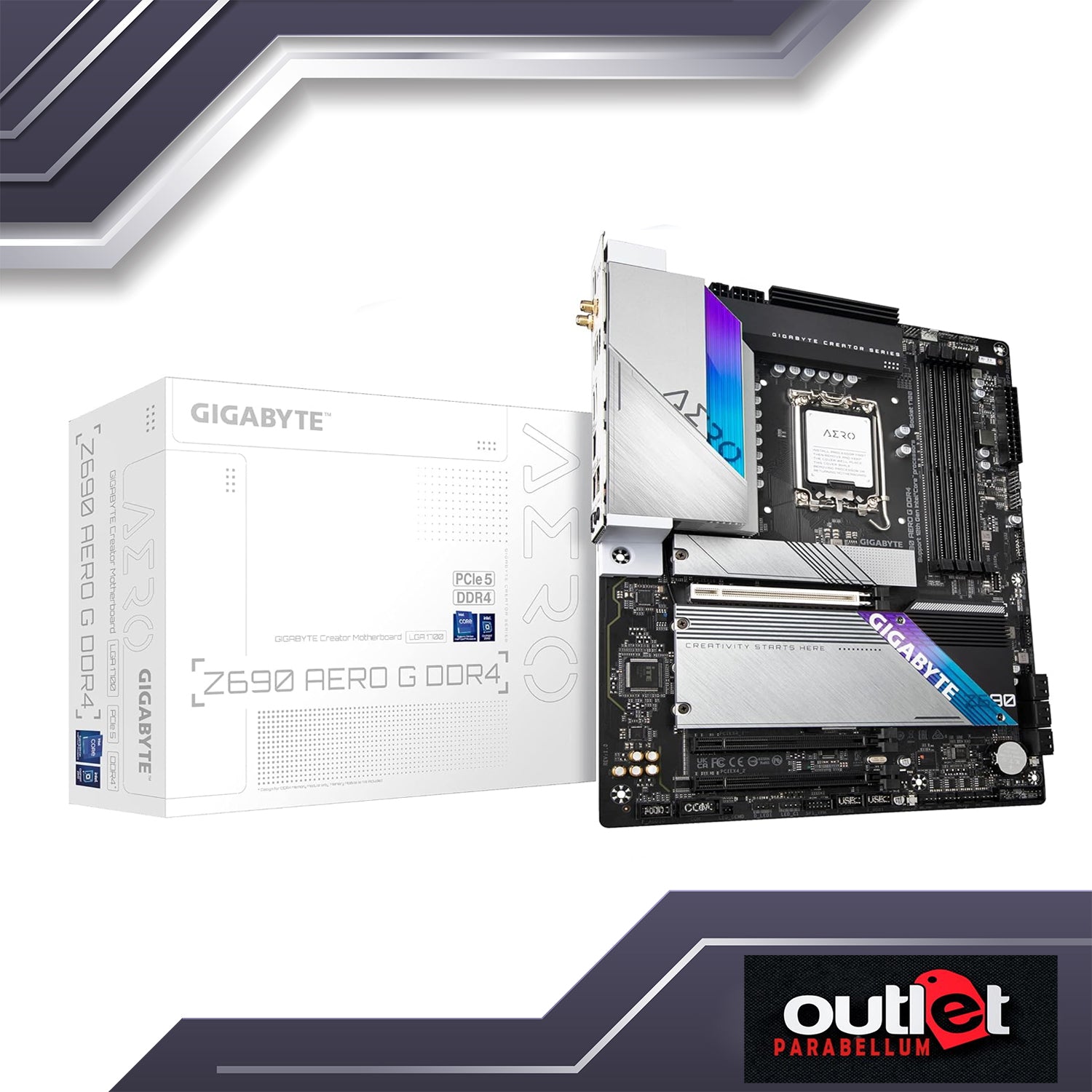

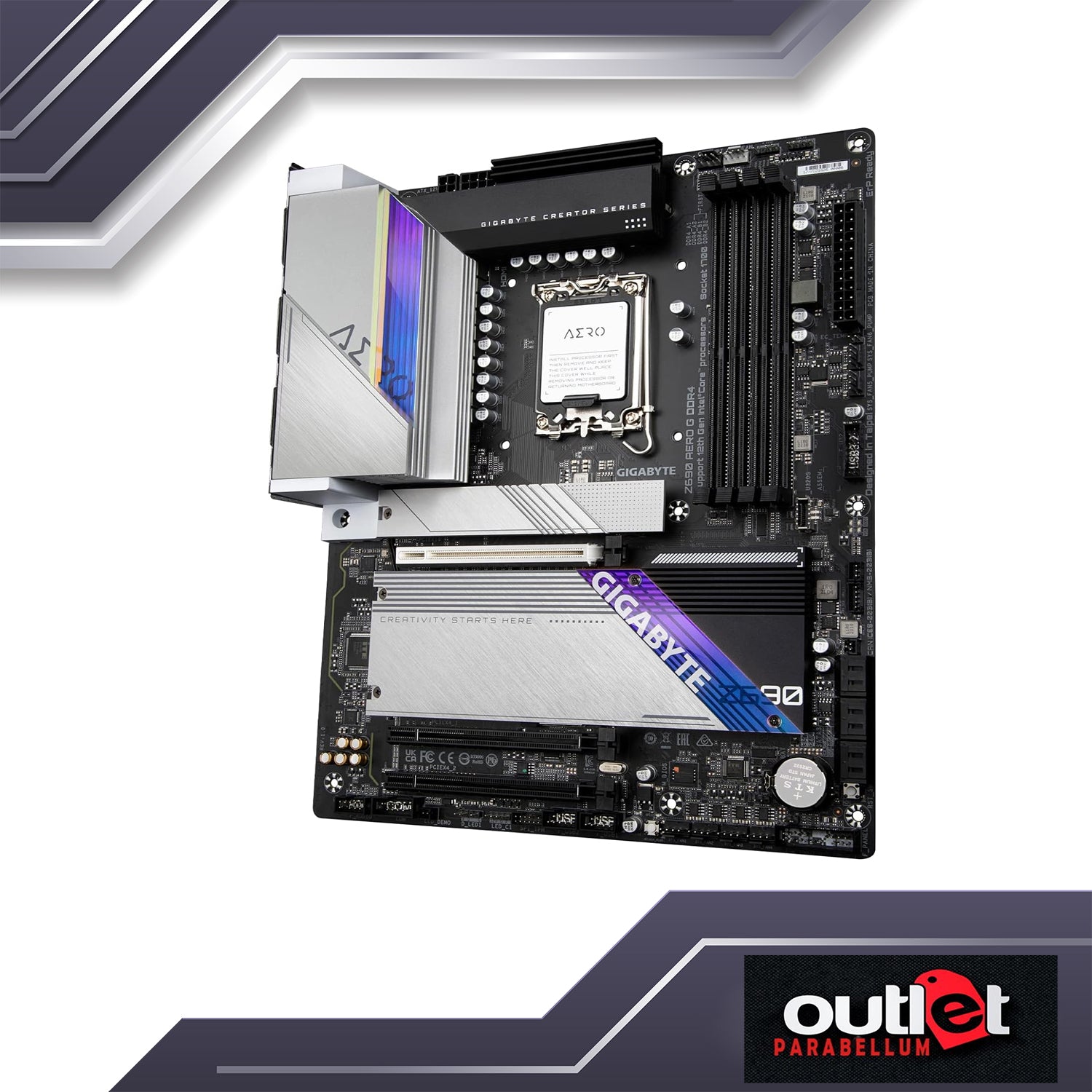

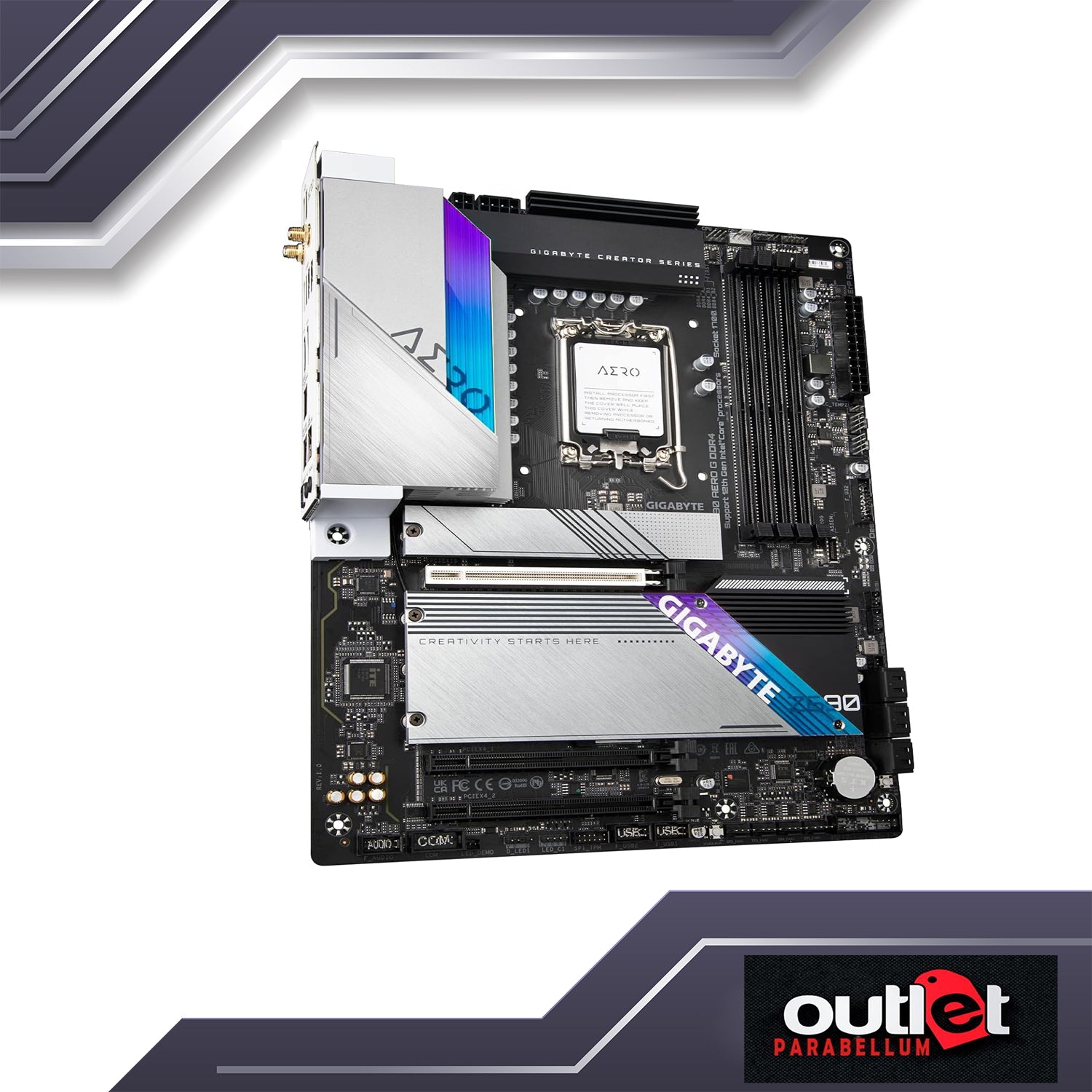

REFURBISHED GA-Z690-AERO-G-DDR4 GIGABYTE INTEL Z690 LGA1700 DDR4 16+1+2 DIGITAL VRM(SPS 90A)WIFI6 2.5GbE LAN MOTHERBOARD

• CPU: LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
• Chipset: Intel® Z690 Express Chipset
• Memory: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MT/s memory modules
• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:

1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz

* Support for drawing tablets and 20V@3A of power delivery.

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

 Support for HDMI 1.4 version and HDCP 2.3.

Audio:

• Realtek® ALC4080 CODEC
• High Definition Audio
• 2-channel analog output
• Support for S/PDIF Out
• 7.1-channel digital signals

* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
