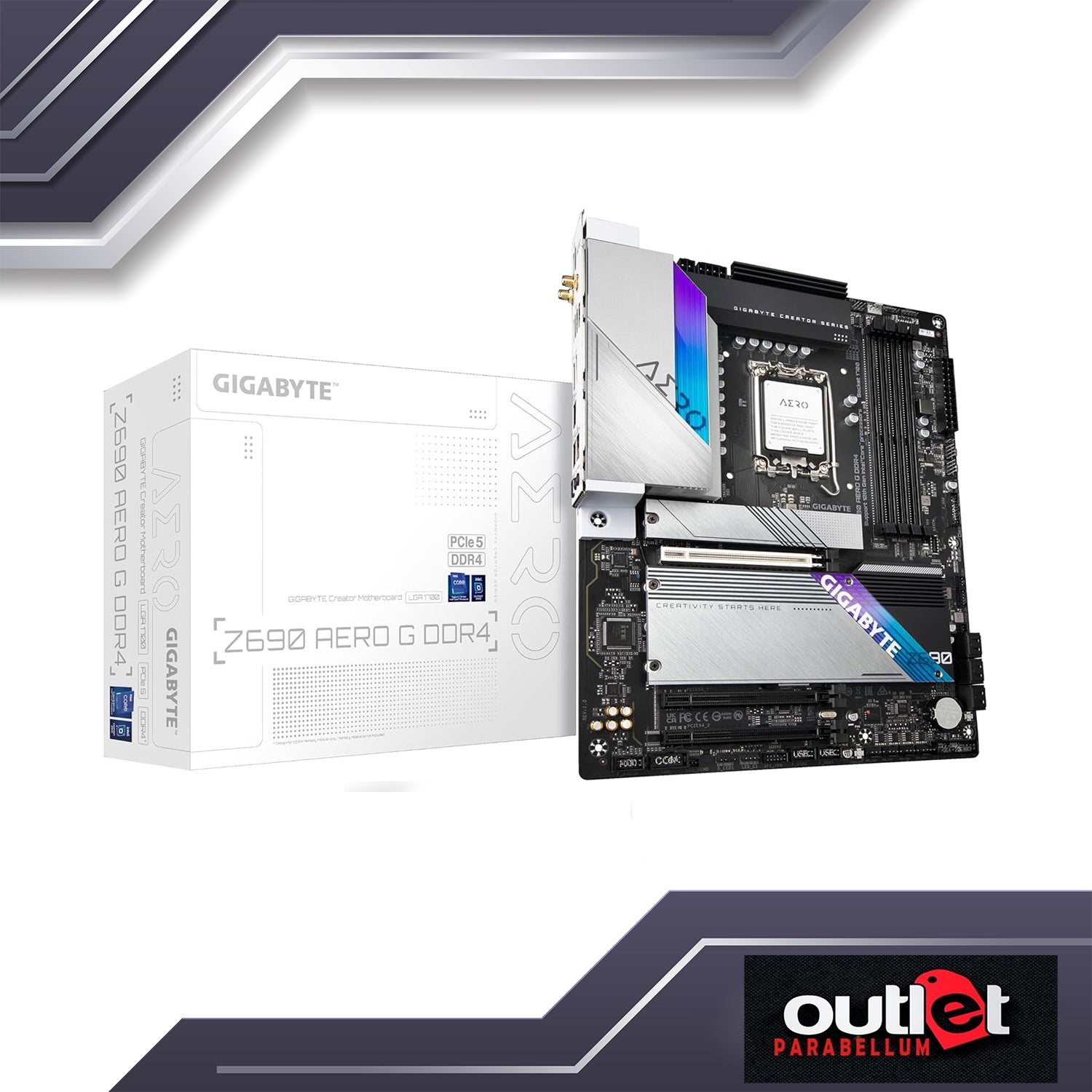

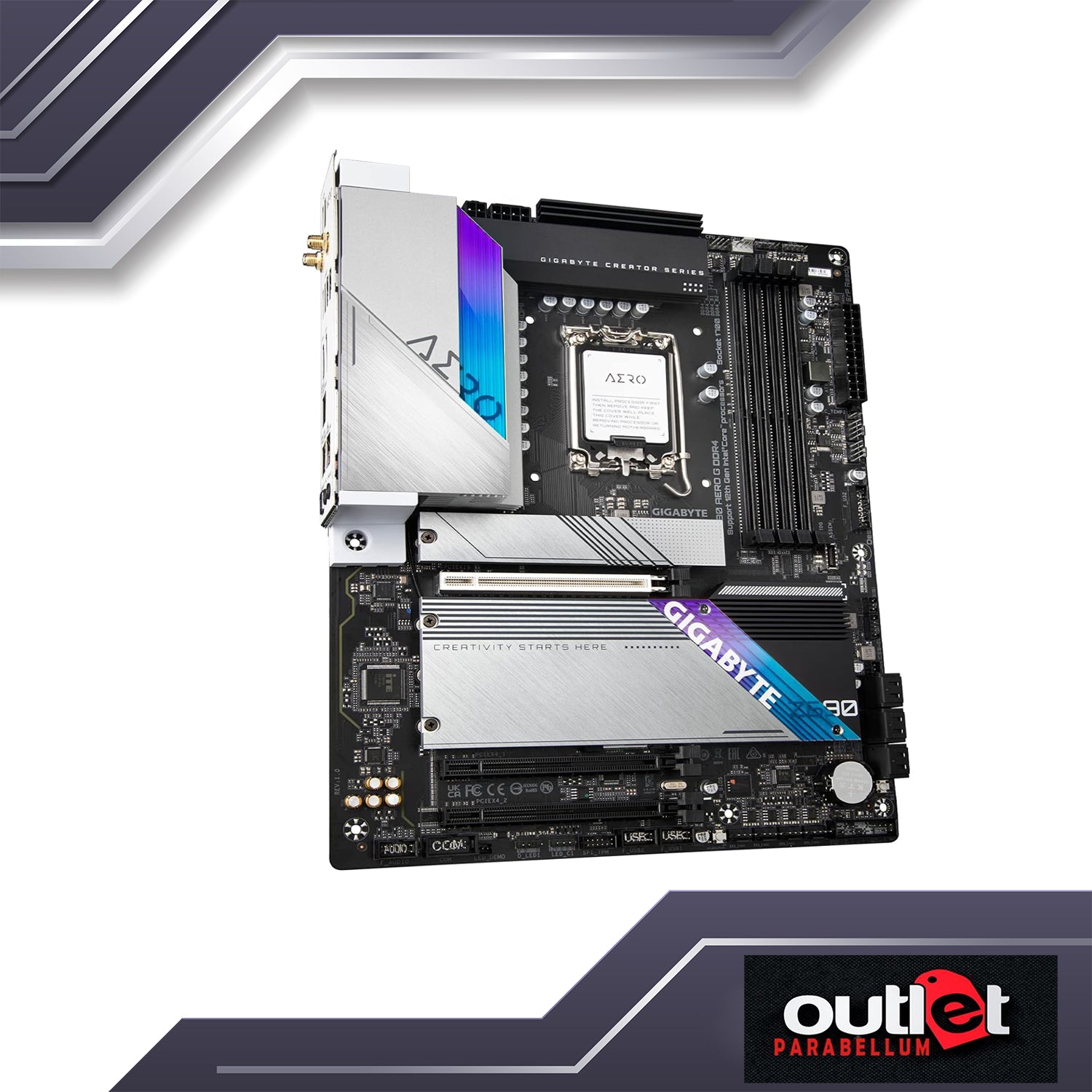

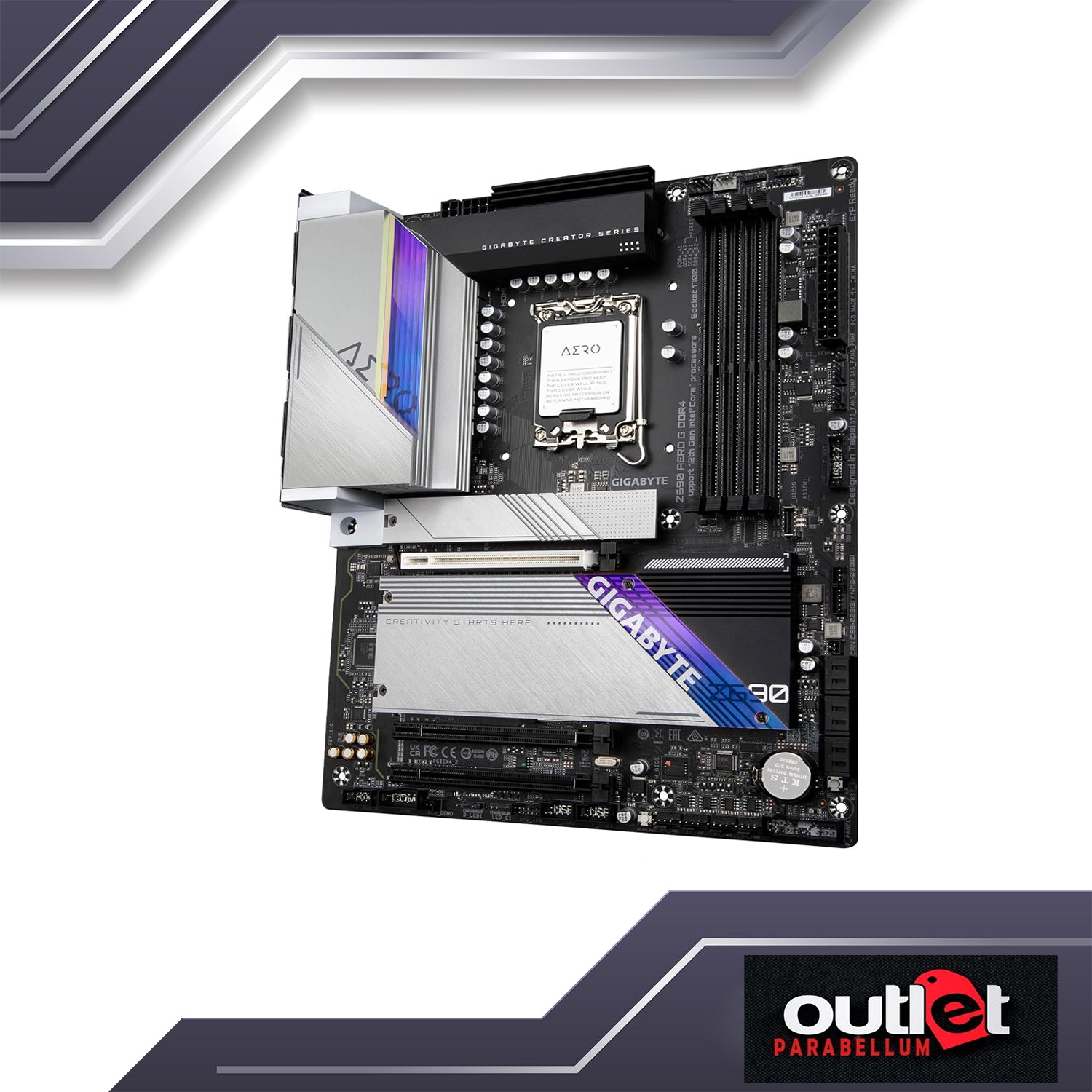

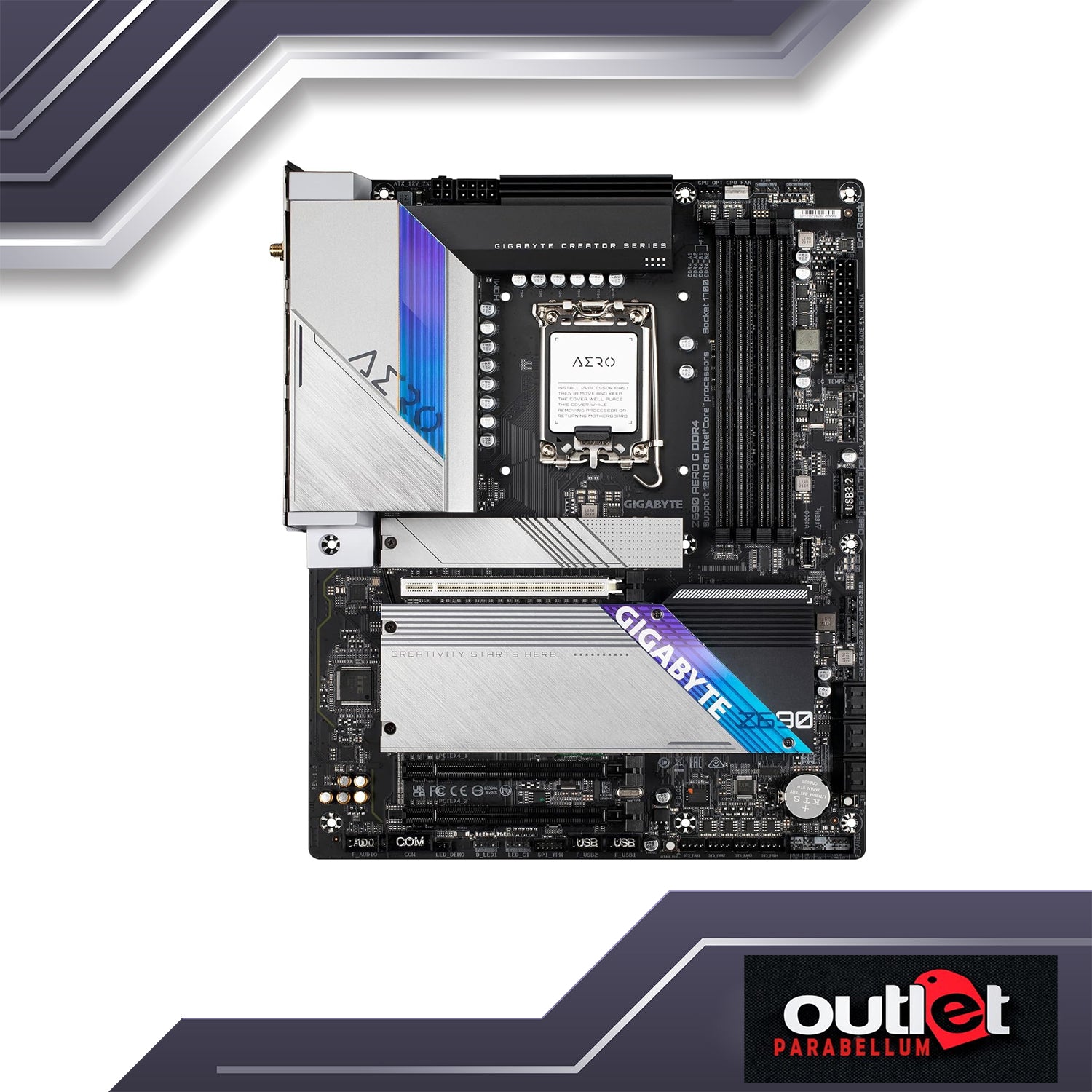

REFURBISHED GA-Z690-AERO-G GIGABYTE INTEL Z690 LGA1700 DDR5 16+1+2 DIGITAL VRM(SPS 90A)WIFI6 2.5GbE LAN MOTHERBOARD

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

This new model is equipped with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives.

An effective cooling solution can prevent the risk of design work being interrupted by an unexpected system crash. GIGABYTE’s advanced thermal solutions provide a perfect balance of aesthetics and performance. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions.

Intel® Z690 Creator Motherboard with unique VisionLINK I/O design, WIFI6 802.11ax and Intel® 2.5GbE LAN, PCIe 5.0 x16 slot, 4 x NVMe PCIe 4.0 x4 M.2 Connectors, USB 3.2 Gen 2x2 Type-C®

• Supports 12th Gen Intel® Core™ Series Processors​
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage

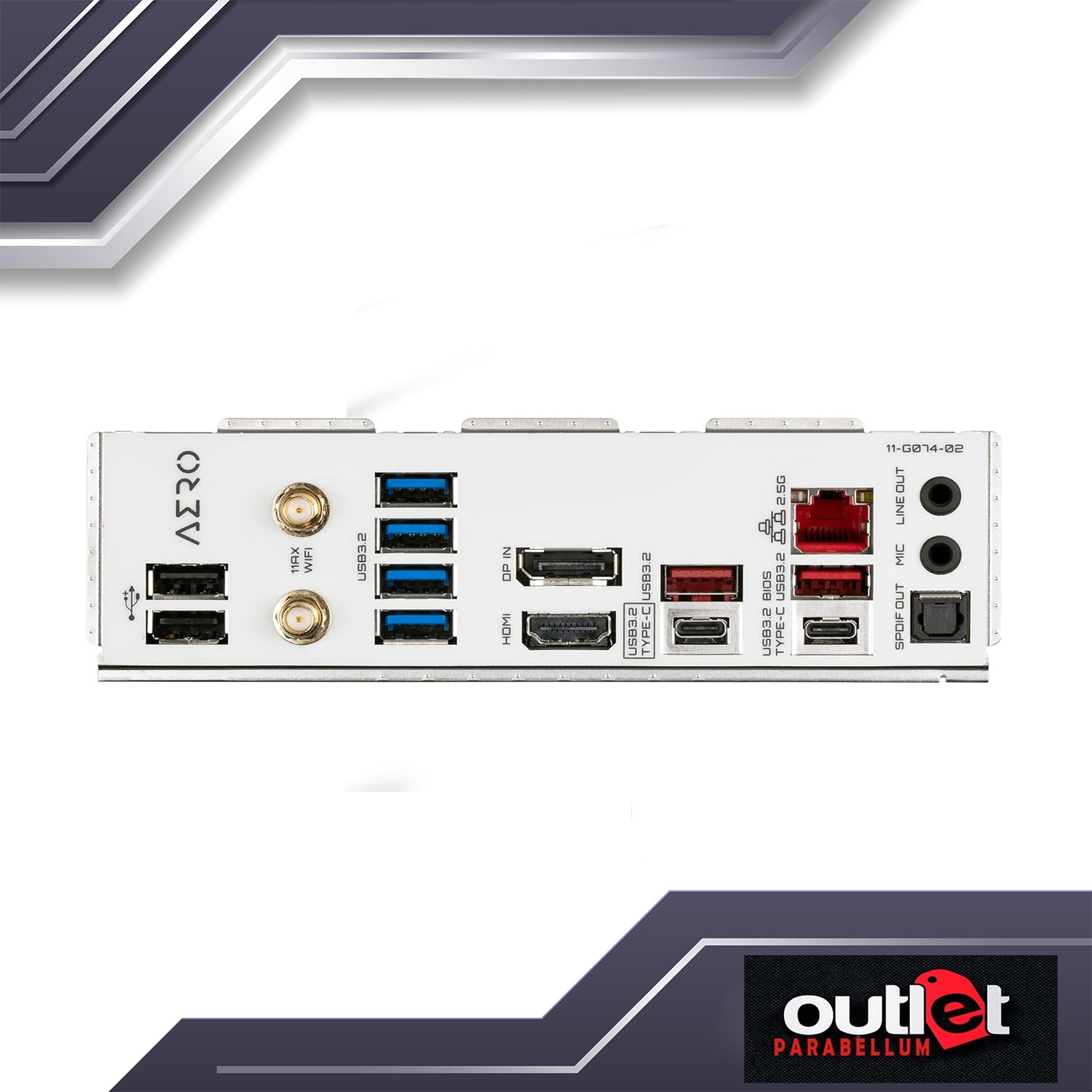

• Go further without more cables by VisionLINK I/O design
• Brings a speed network experience with Intel® 2.5GbE LAN
• WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
• No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
• 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
• Advanced thermal architecture design for the better thermal dissipation
• Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

CPU: LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

Chipset: Intel® Z690 Express Chipset

Memory:

• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz

• Support for drawing tablets and 20V@3A of power delivery.
• Support for DisplayPort 1.2 version and HDCP 2.3
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• Support for HDMI 1.4 version and HDCP 2.3.

Audio:

• Realtek® ALC4080 CODEC
• High Definition Audio
• 2-channel analog output
• Support for S/PDIF Out
• 7.1-channel digital signals

Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
