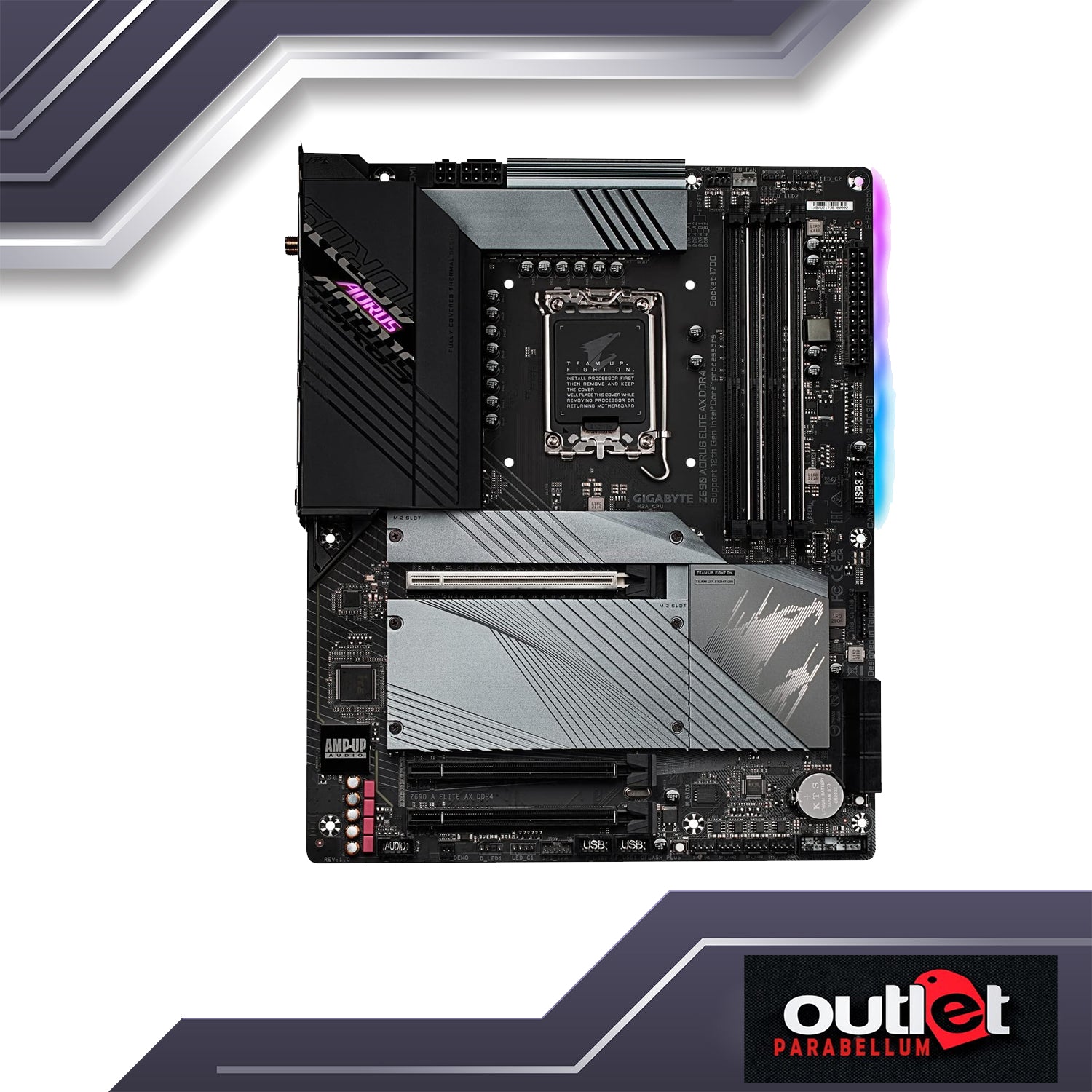

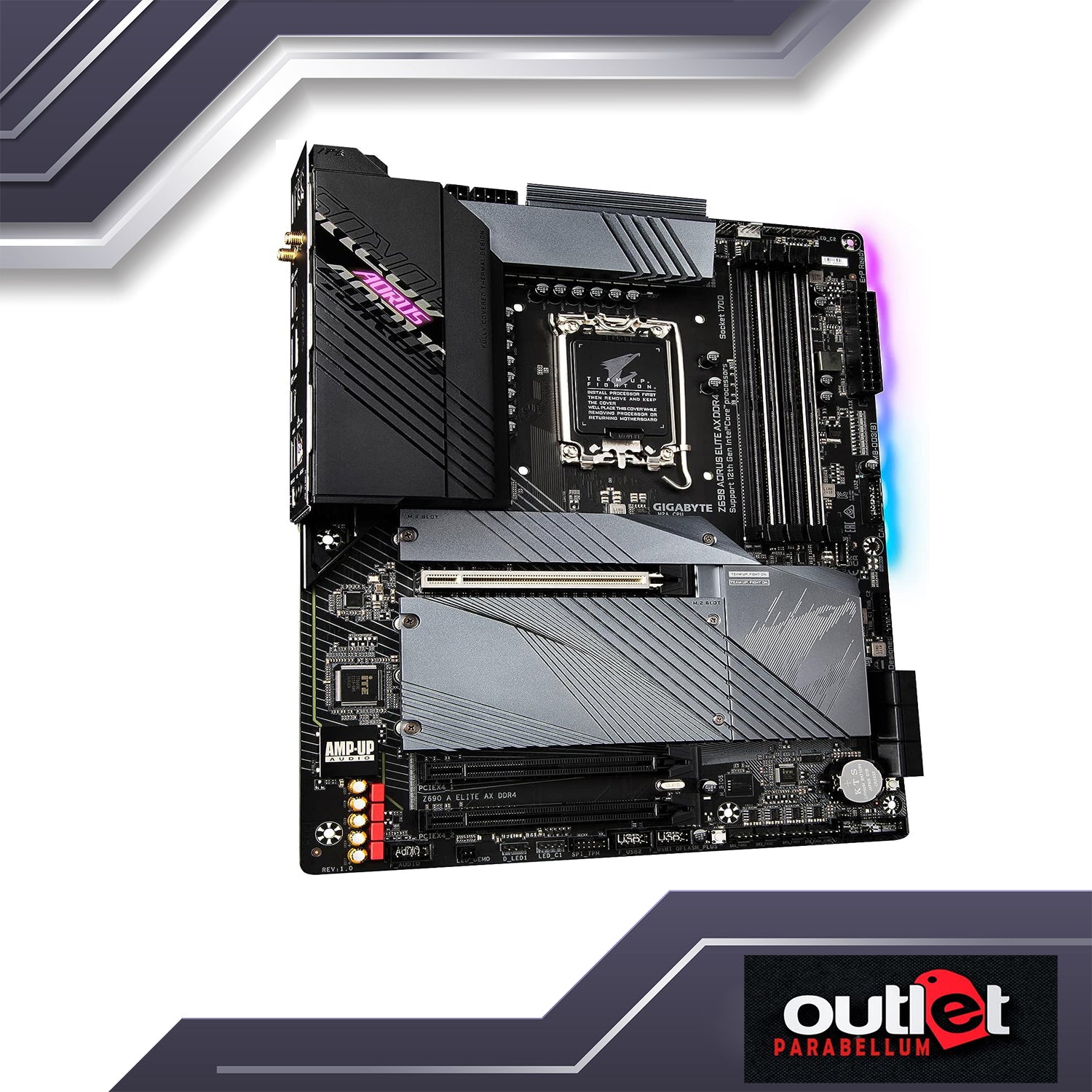

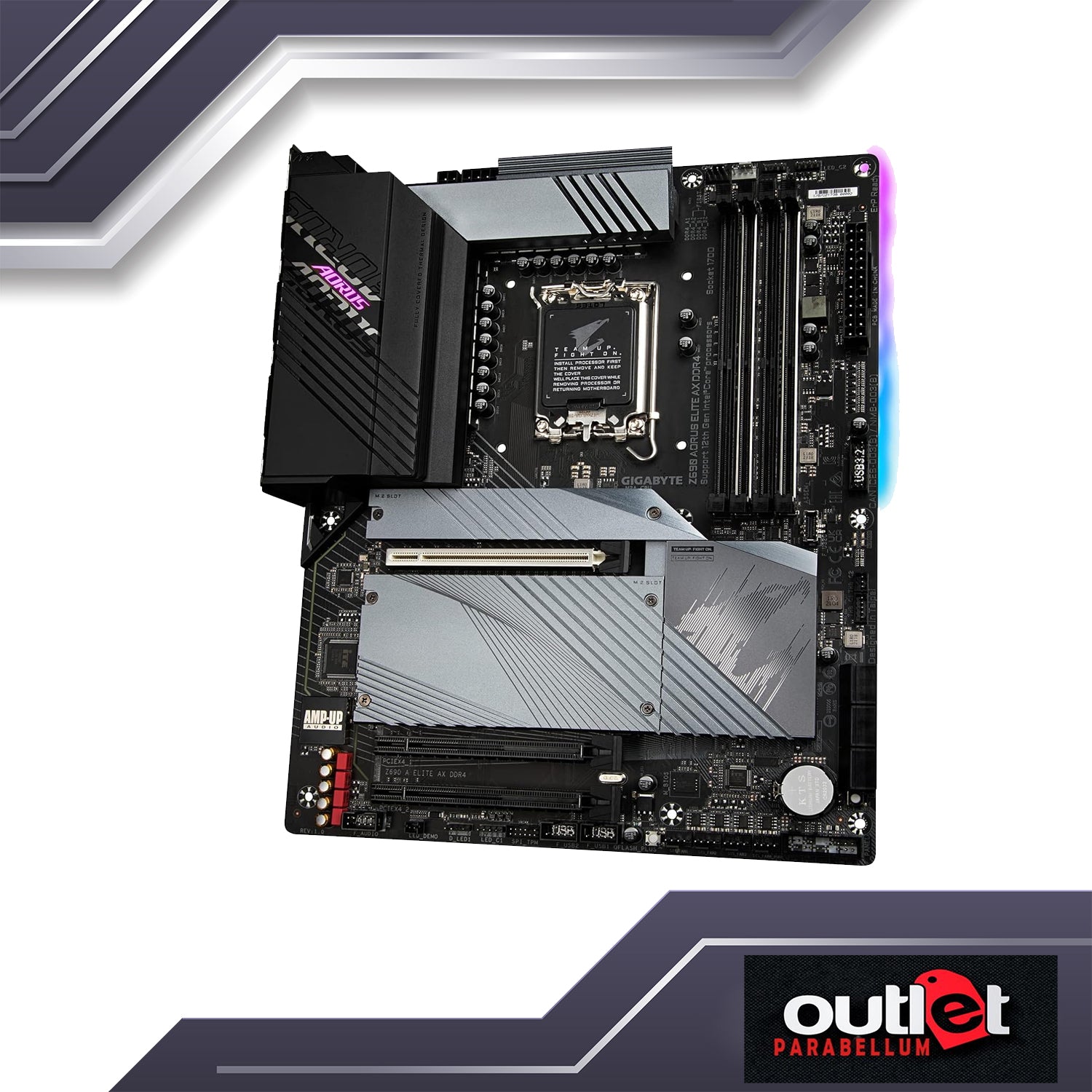

REFURBISHED GA-Z690-AORUS-ELITE-AX AORUS INTEL Z690 LGA1700 DDR5 16+1+2 DIGITAL VRM(SPS 70A)WIFI6 2.5GbE LAN ATX Motherboard

• CPU: LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
• Chipset: Intel® Z690 Express Chipset
• Memory: Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support native HDMI 2.1 TMDS compatible ports.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module: WIFI Module
• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.2

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• * Actual data rate may vary depending on environment and equipment.

Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
• (The PCIEX4 slots conform to PCI Express 3.0 standard.)
