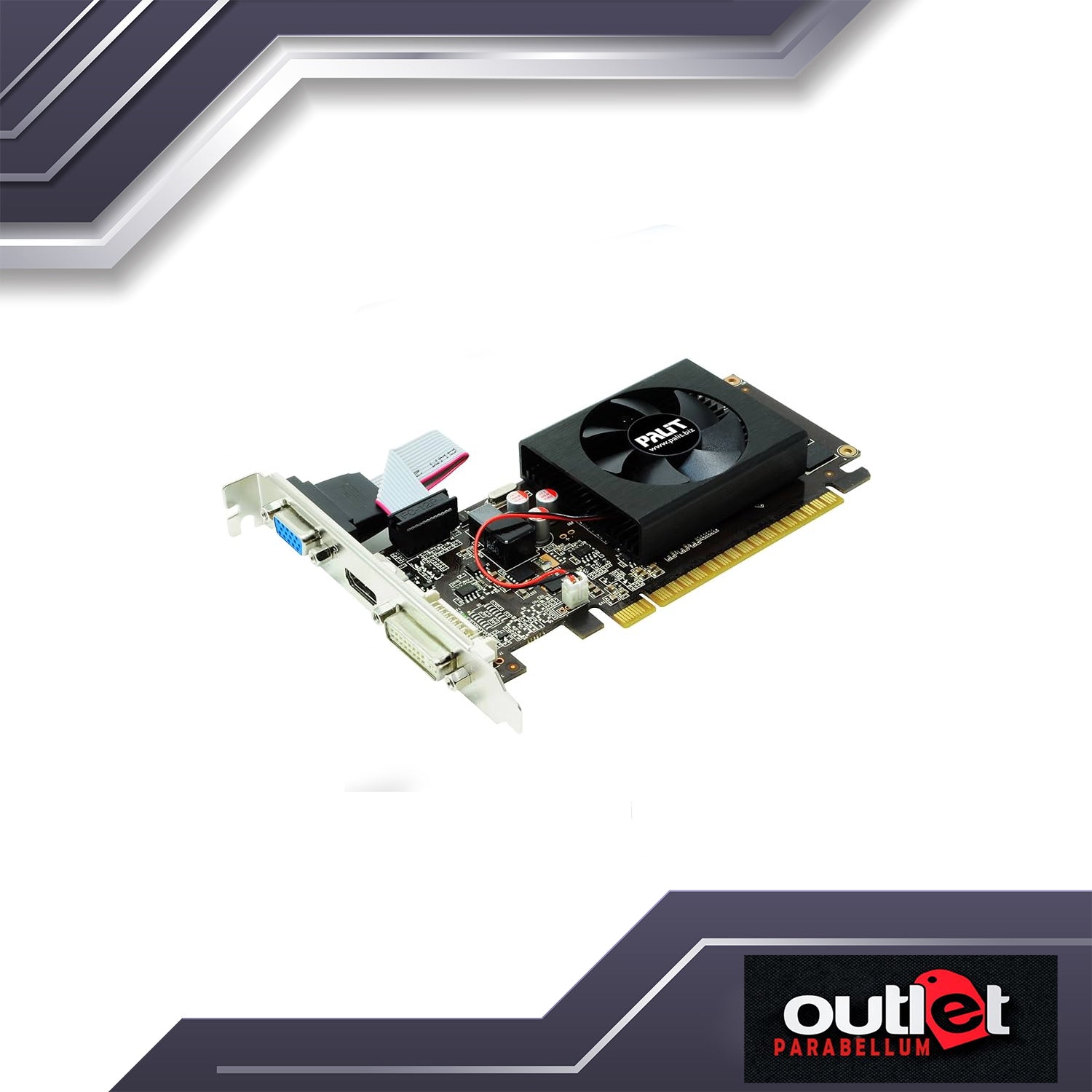

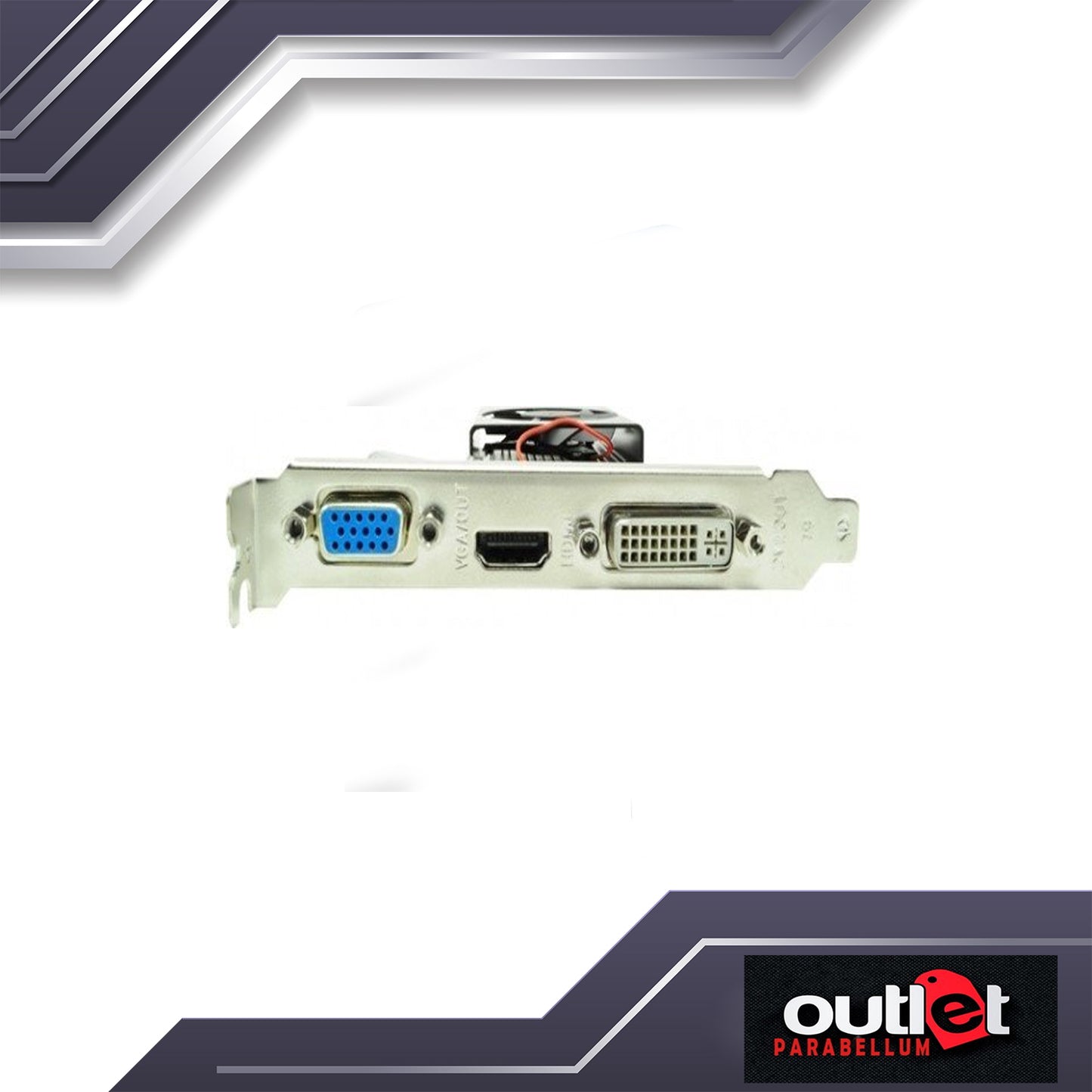

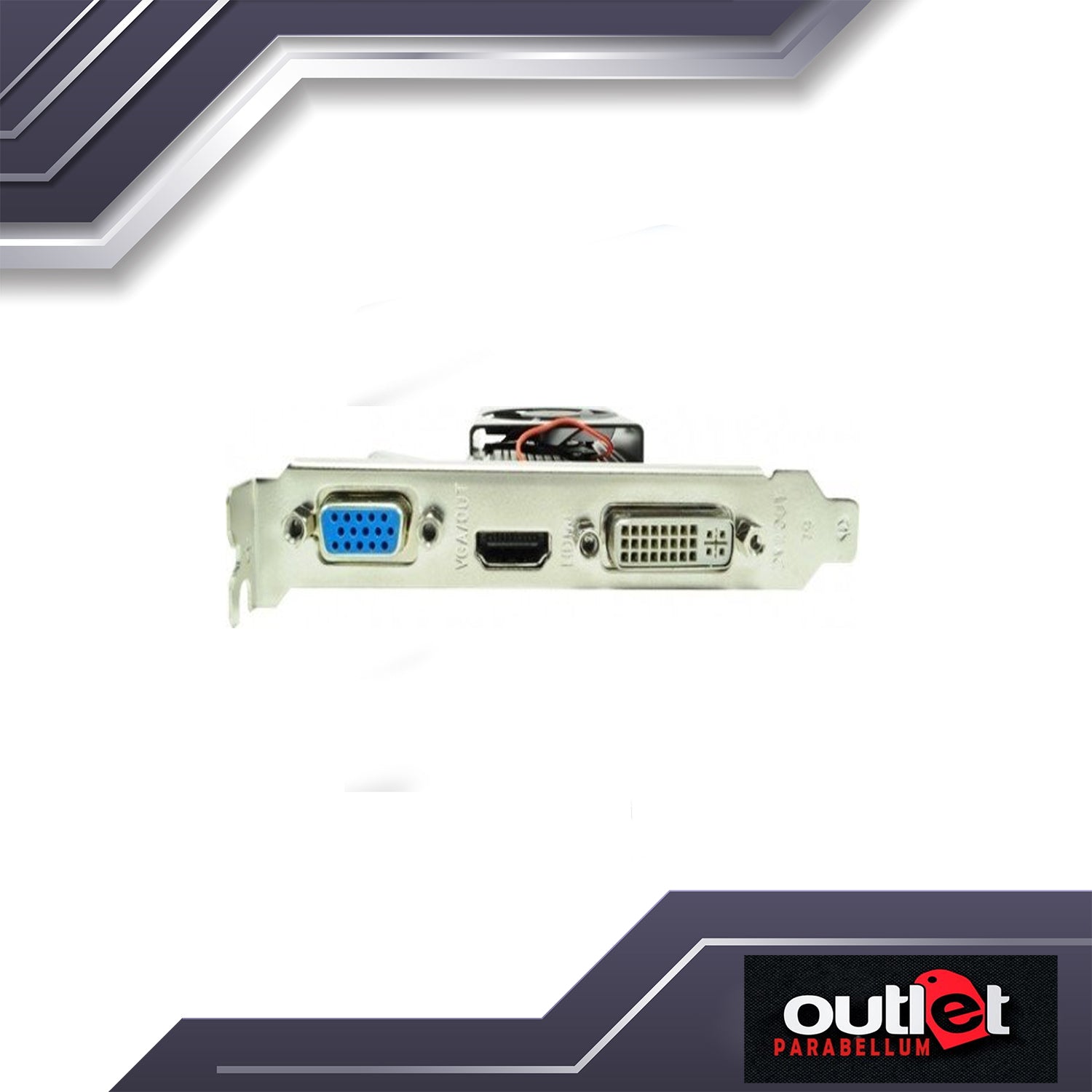

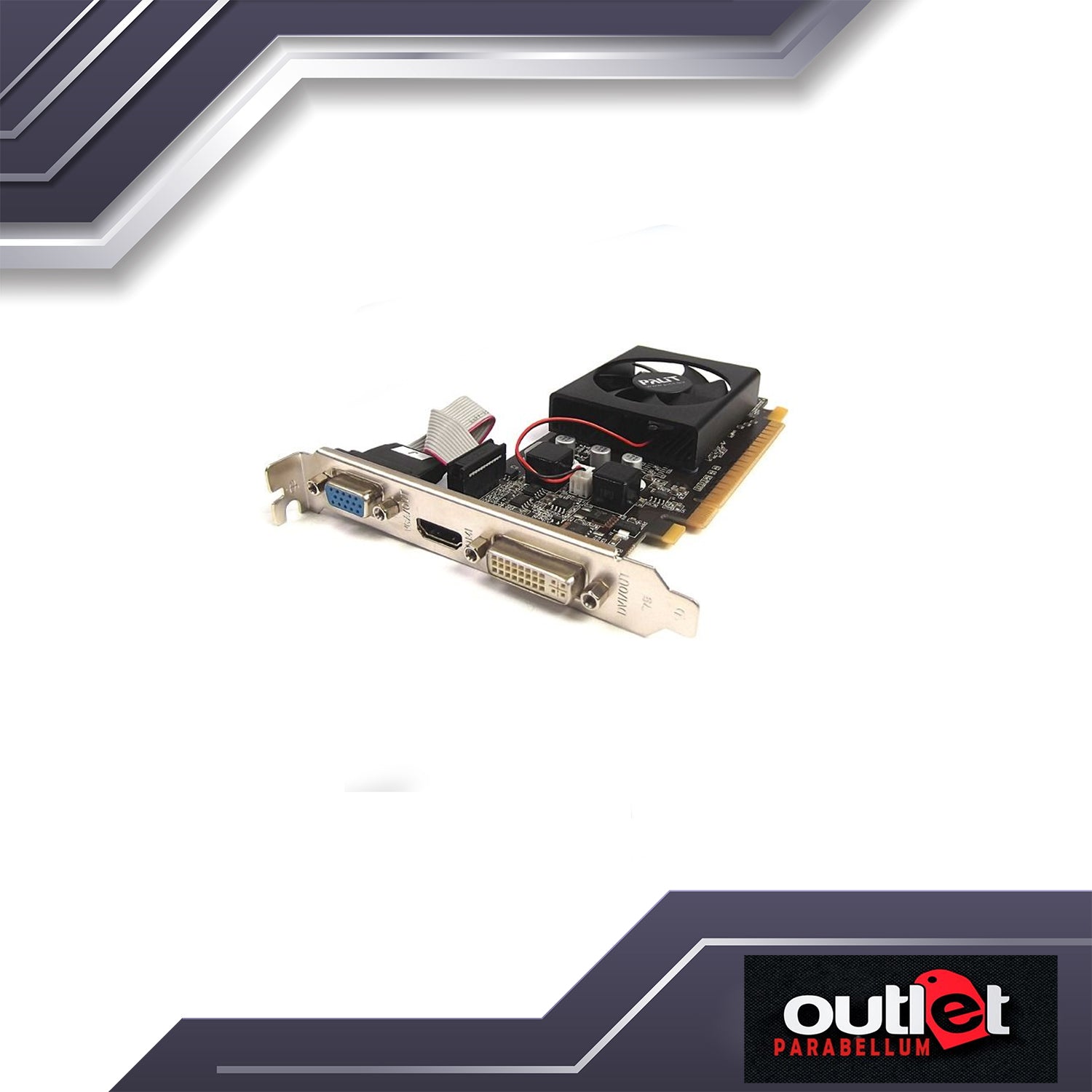

REFURBISHED PALIT NEAT6100HD06-1196F PALIT GT610 1GB DDR3 64B VGA

Palit GeForce GT 610 1 GB (part number NEAT6100HD06-1196F) is one of a few Palit Graphics Processing Units for desktop market segment. Based on NVIDIA GeForce GT 610, and The GPU is produced on 40 nm manufacturing process, and uses Fermi architecture.

The card's processor and graphics clock speeds are 1.62 GHz and 810 MHz respectively. It also features 48 CUDA cores, 8 texture units, and 4 ROPs. The GeForce GT 610 1 GB comes with 1 GB of DDR3 memory, utilizing 64 bit bus.

The memory is clocked at 535 MHz, which gives 8.56 GB/s memory bandwidth. The GPU has PCI Express 2.0 interface, and requires a single slot on the motherboard. Similar to the reference design, this model has the maximum power draw of 29 Watt.

Name / Brand / Architecture

• Manufacturer: Palit
• Model: GeForce GT 610 1 GB
• Part number: NEAT6100HD06-1196F
• Based on: NVIDIA GeForce GT 610 [Compare]
• Target market segment: Desktop
• Die name: GF119
• Architecture: Fermi
• Fabrication process: 40nm
• Transistors: 292 million
• Bus interface: PCI-E 2.0 x 16

Frequency

• Graphics clock: 810 MHz
• Processor clock: 1620 MHz
• Memory specifications
• Memory size: 1024 MB
• Memory type: DDR3
• Memory clock: 535 MHz
• Memory clock (effective): 1070 MHz
• Memory interface width: 64-bit
• Memory bandwidth: 8.56 GB/s
• Cores / Texture
• CUDA: 2.1
• CUDA cores: 48
• ROPs: 4
• Texture units: 8
• RAMDACs: 400 MHz
