Features:
TEH2400M offers 24 10/100Mbps Auto-Negotiation ports. All the ports, supporting Auto MDI/MDIX, can either connect to the common terminal or uplink to the other network devices to extend your network easily and conveniently. It offers an easy, economical, high-performance, standard solution method transferring to 100M network. With great flexibility, easy-to-use, convenient installation, and super performance, it is ideal choice for the medium/small enterprises and SOHOs.
- Complies with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet standards
- 24 10/100Mbps Auto-Negotiation ports
- 8K MAC address studying/renewing automatically
- All the ports can automatically diagnosis half-/full-duplex modes
- Dynamic buffer area automatically allocates to realize network load balancing and prevent the packing from losing
- Automatically examine all kinds of error frames to ensure data packing right.
- Automatically studies and sets up the MAC Address Table of connection devices
- Equips with internal Switch Power for the metal chassis rack Switch
Hardware Features:
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Interface: 24 RJ45 ports
- Speed: 10/100Mbps
- LED: Power/24 Link/Act indicators
- Power: AC100-240V 50/60Hz 0.2A / DC 9V 1A
- Dimensions (LxWxH,mm): 440*123*44
General Features:
- Forwarding Scheme: Store-&-forward
- MAC Address Table: 8K
- MAC Address Learning: Yes
- Backplane Bandwidth: 4.8Gbps
Others:
- Operating Enviroment:
- Operating Temperature: 0℃~40℃
- Storage Temperature: -40oC~70oC
- Operating Humidity: 0%ï¼90% RH RH no condensing
- Storage Humidity: 10%~90% RH RH no condensing
Package Contents:

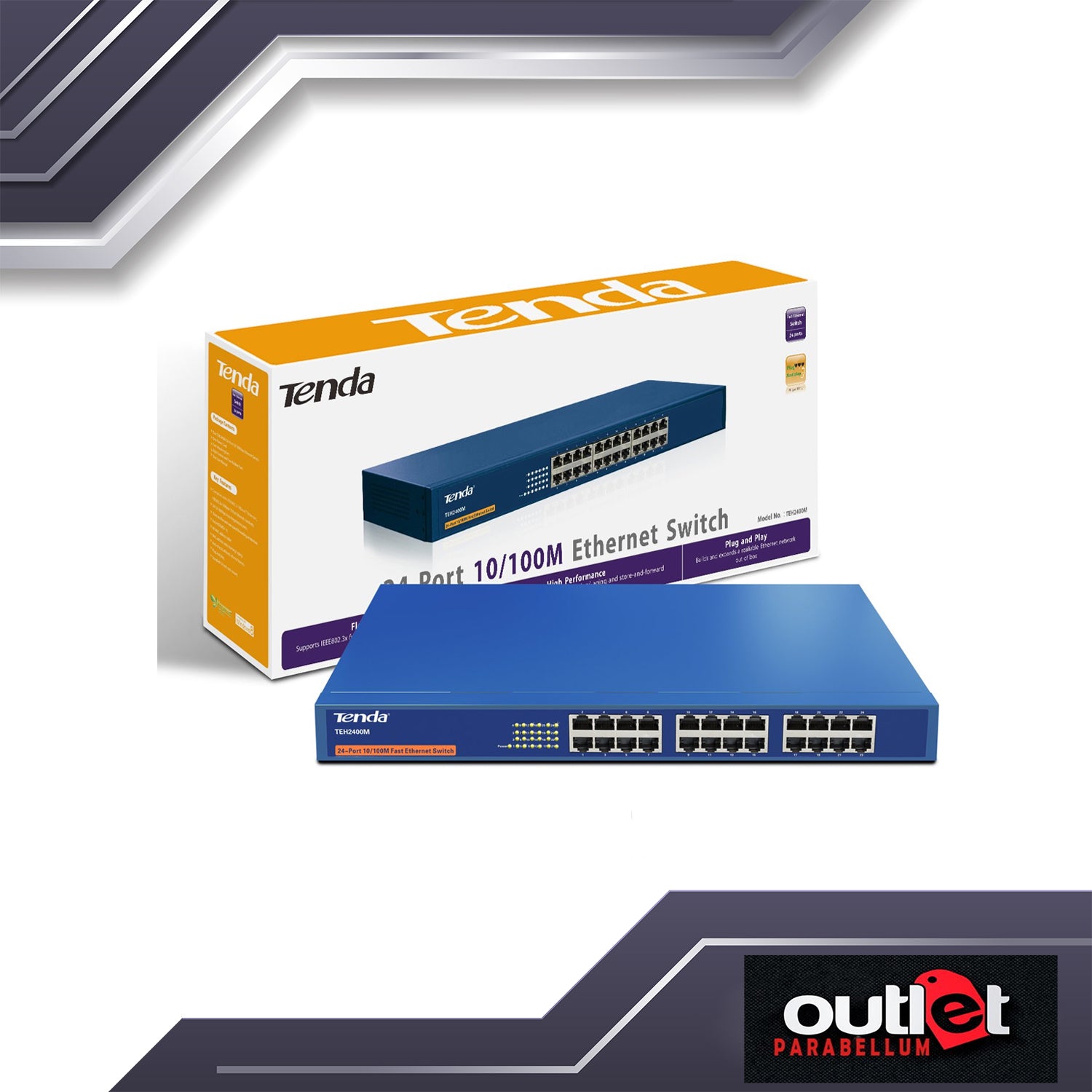

- *One TEH2400M 24-Port 10/100Mbps Ethernet Switch
- *User Manual (Hard-copy)
- *One power cord
- *2 mounting ears
- *8 screws and 4 cushion
- Certificates: CE, RoHS
